7. Water Pump Removal

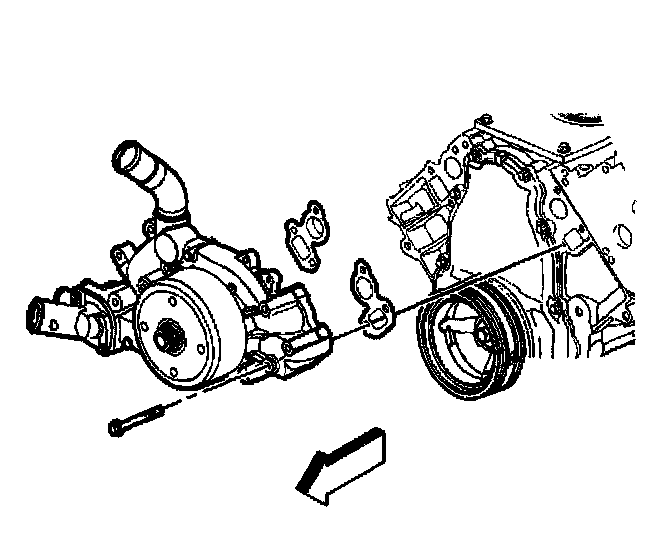

Water Pump Removal





1. Remove the water pump bolts.
2. Remove the water pump and gaskets.
3. Discard the water pump gaskets.
