Engine Oil Cooler Replacement - Auxiliary

Engine Oil Cooler Replacement - Auxiliary

Removal Procedure_





1. Open the hood.

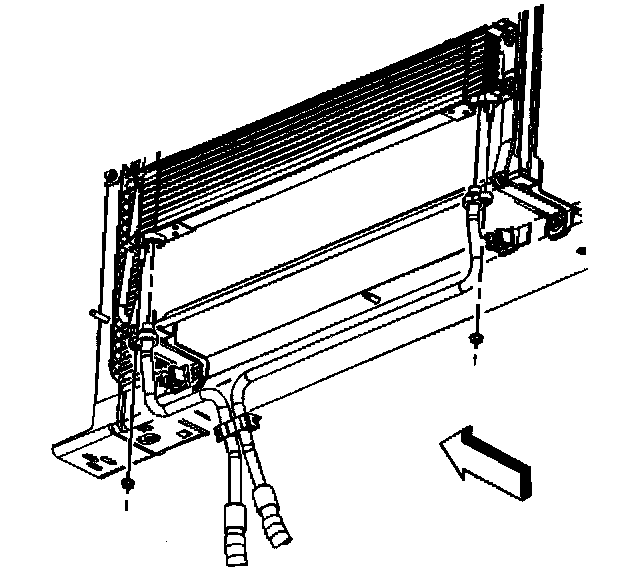

2. Disconnect the oil cooler lines from the auxiliary oil cooler.

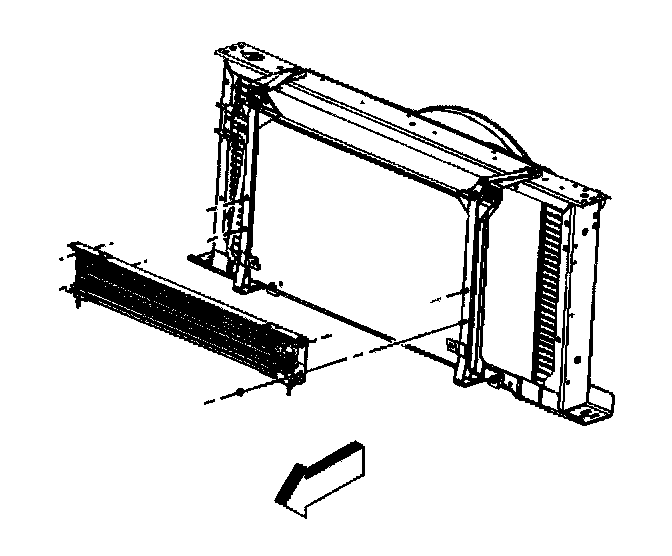

3. Remove the auxiliary oil cooler from the vehicle.

Installation Procedure

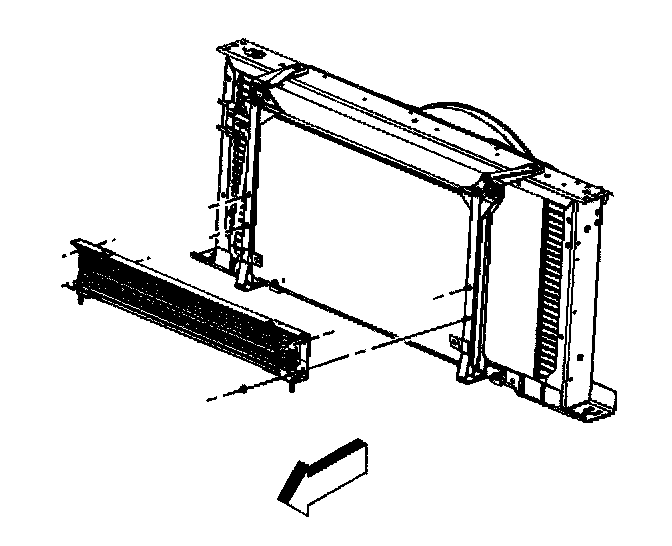

1. Install the auxiliary oil cooler.





2. Connect the oil cooler lines to the vehicle.
3. Lower the vehicle.
