S102
S102

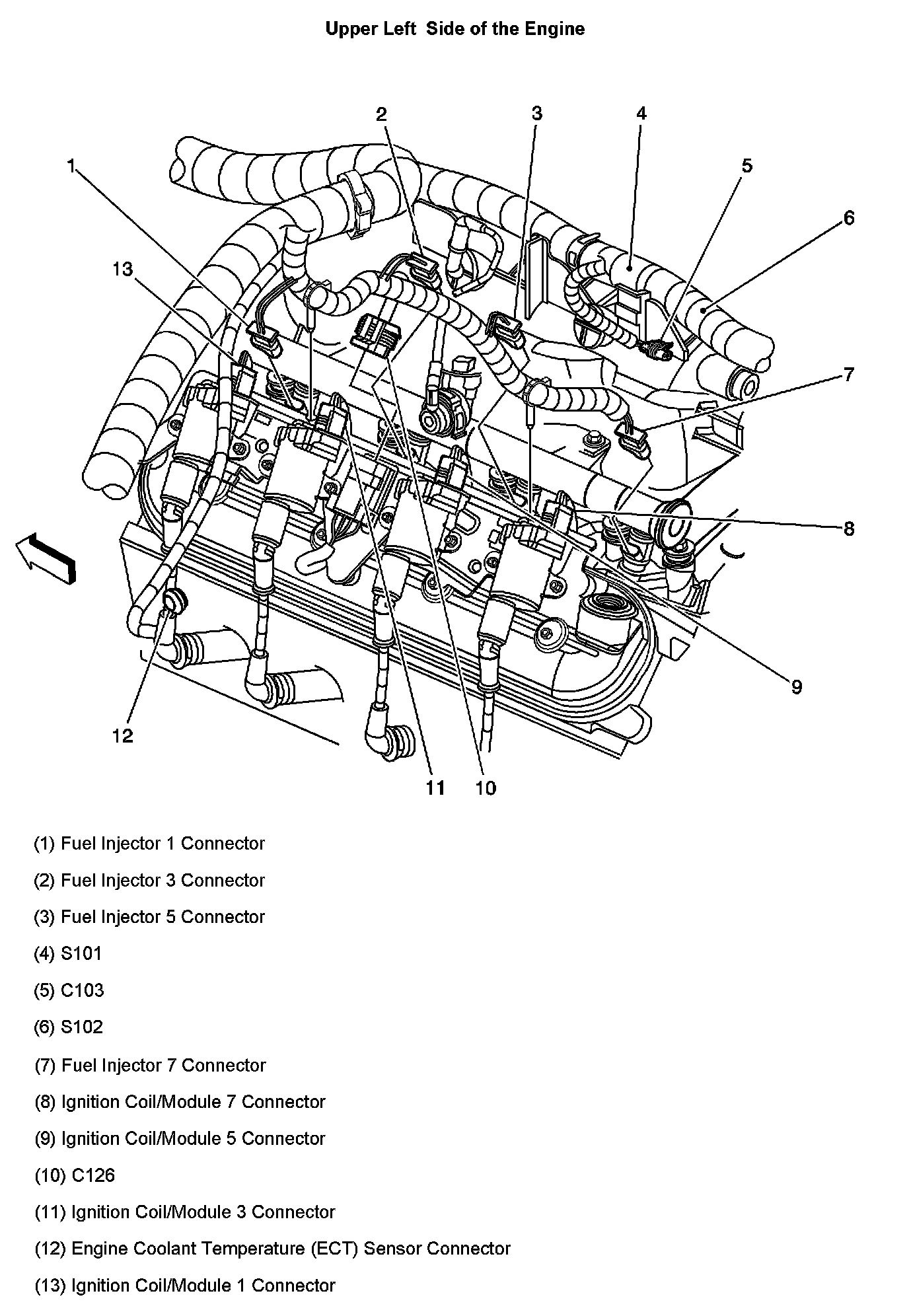

Upper Left Side of the Engine:

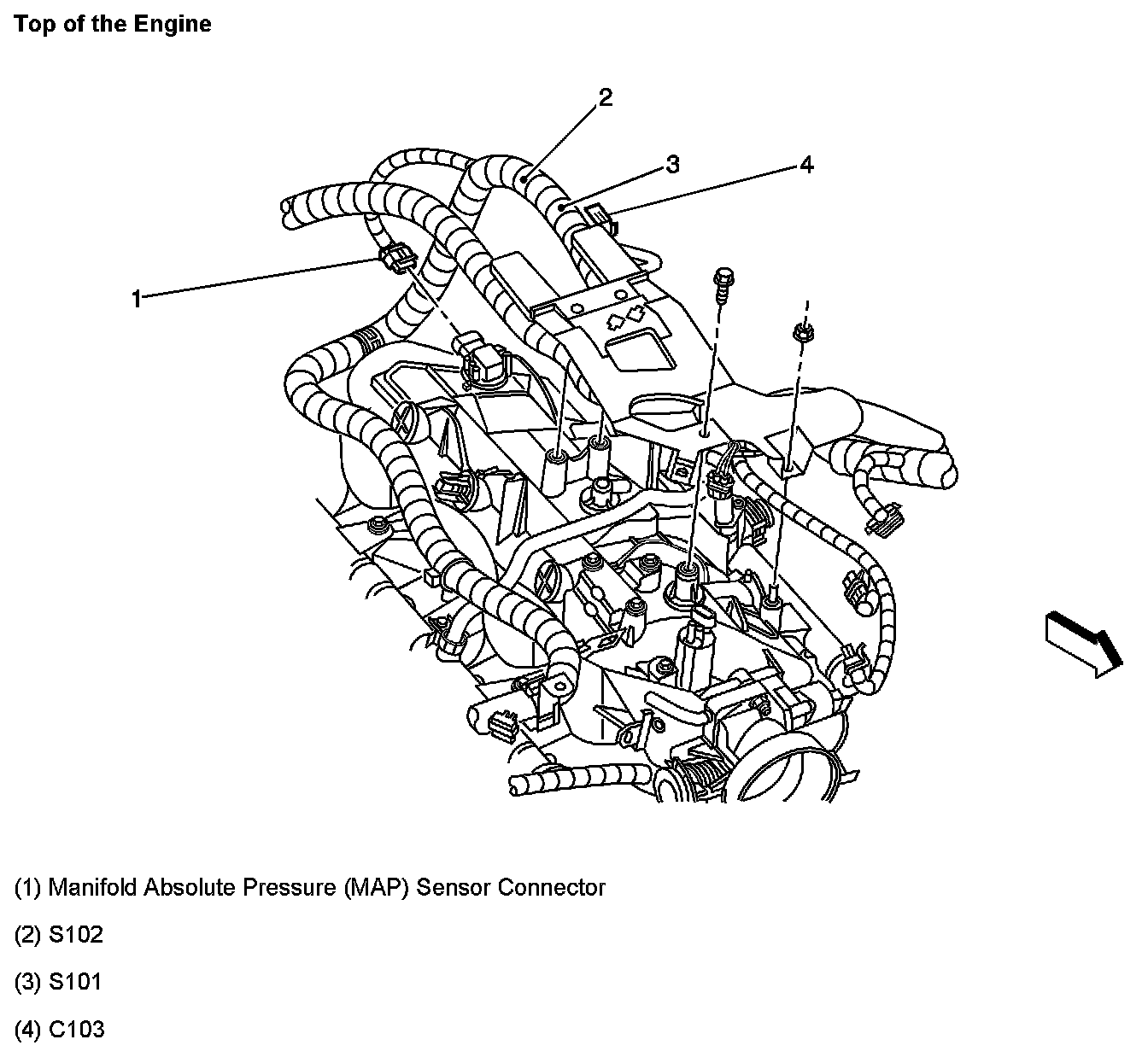

Top Of The Engine:
Engine Harness - Left Side Of The Engine:
Engine Harness - Top Of The Engine:
