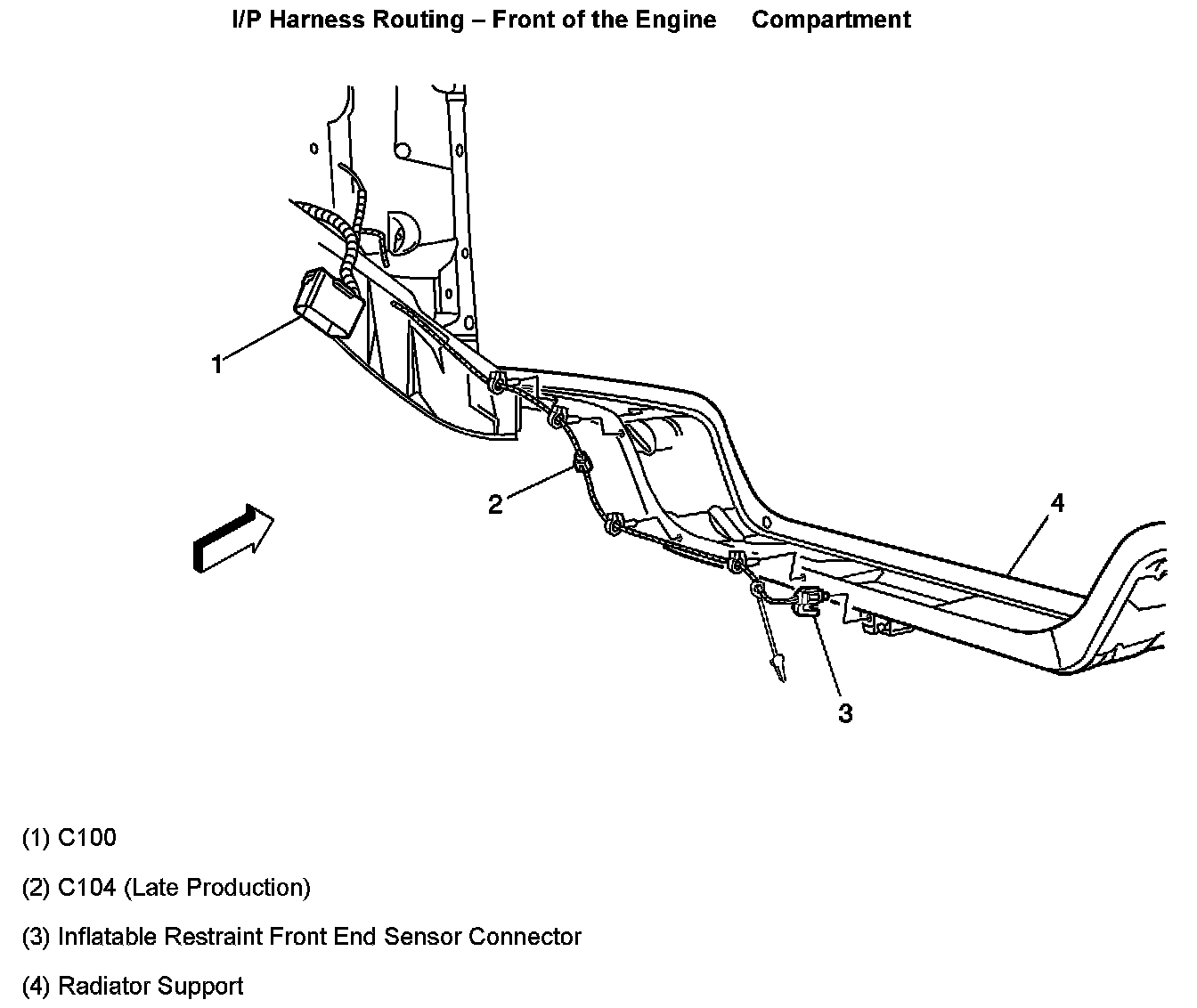

I/P Harness Routing - Front of the Engine Compartment

I/P Harness Routing - Front Of The Engine Compartment:
