Drive/Propeller Shaft

Driveline Disassembled Views

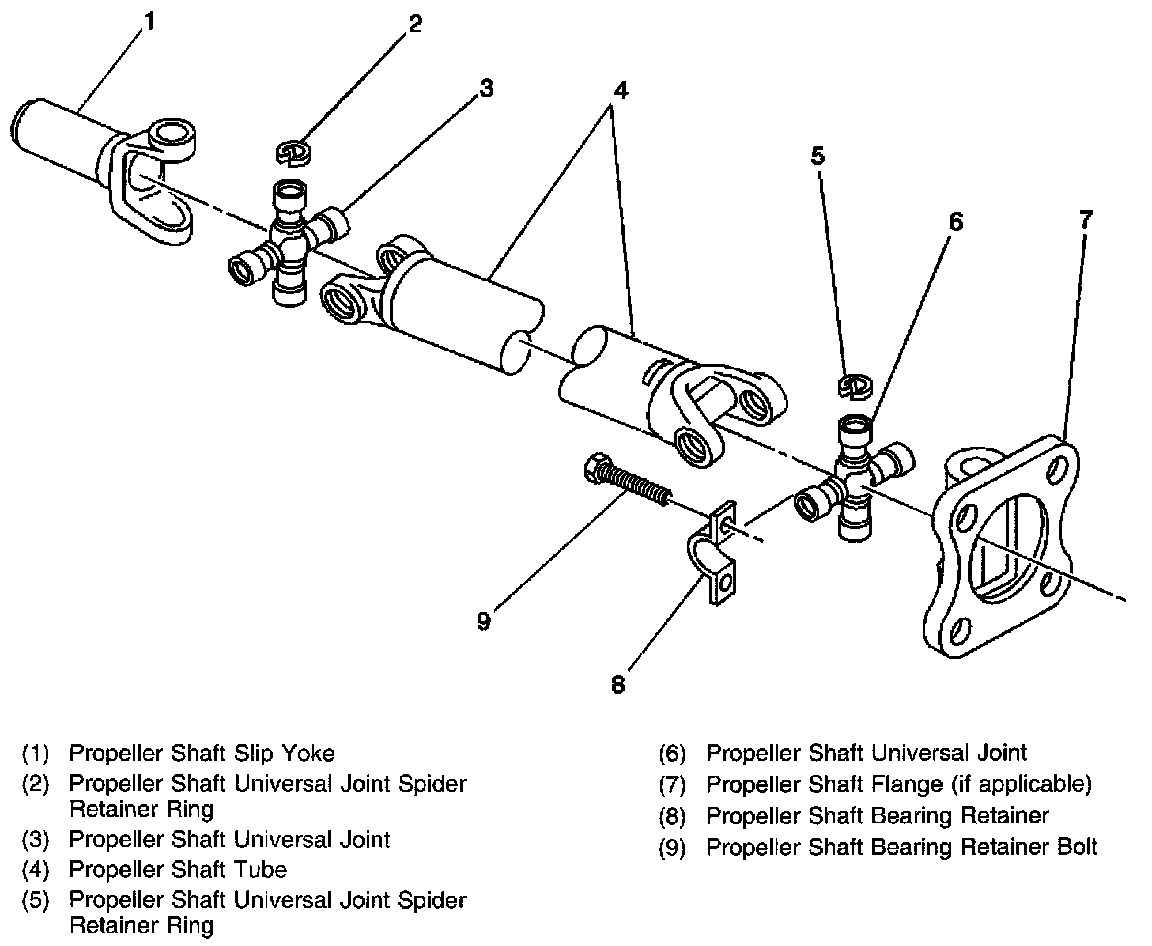

One-Piece Propeller Shaft

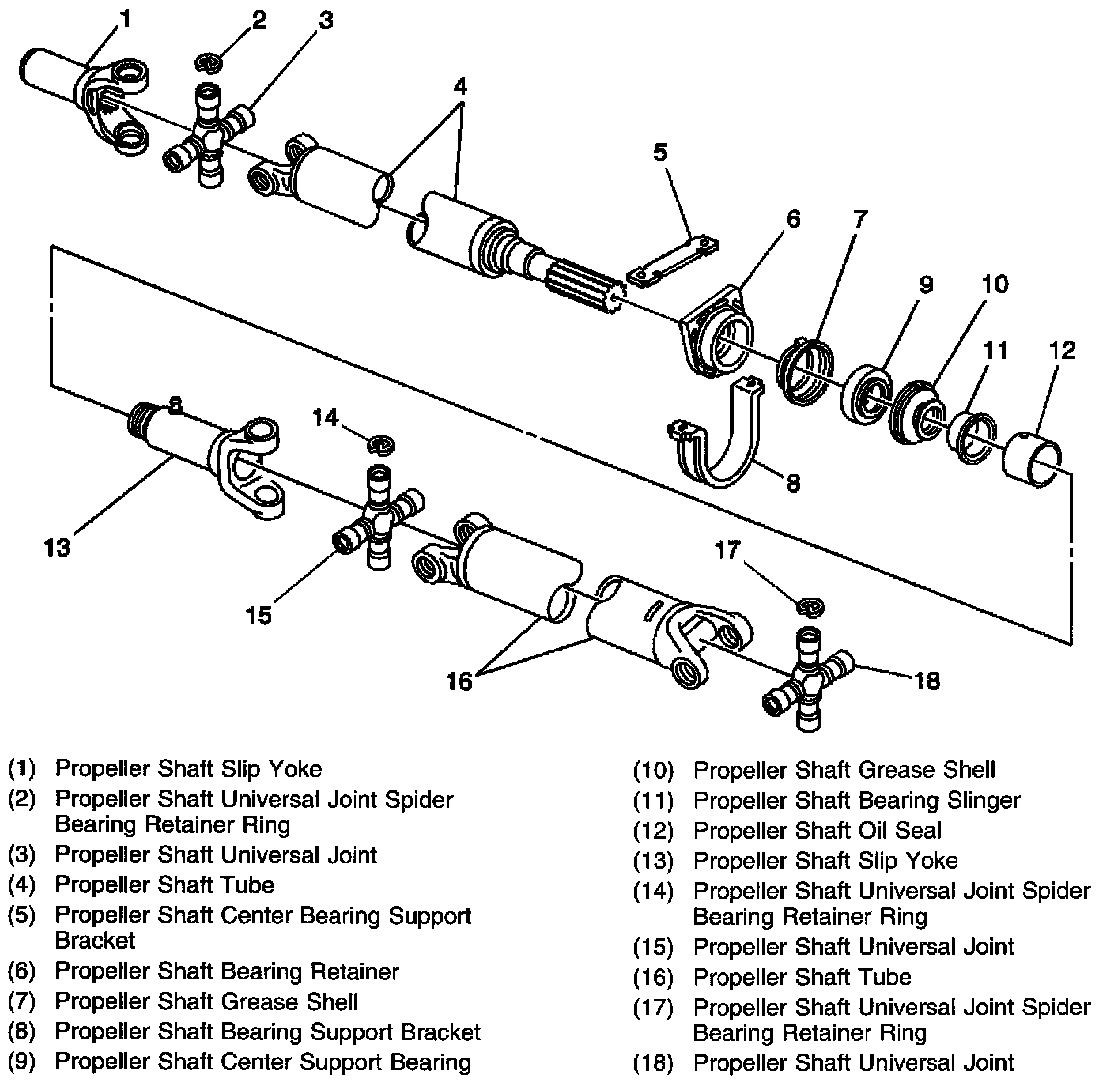

Two-Piece Propeller Shaft
