Differential Assembly
>>
Rear Axle Disassembled Views
Rear Axle Disassembled Views
Rear Axle Disassembled Views

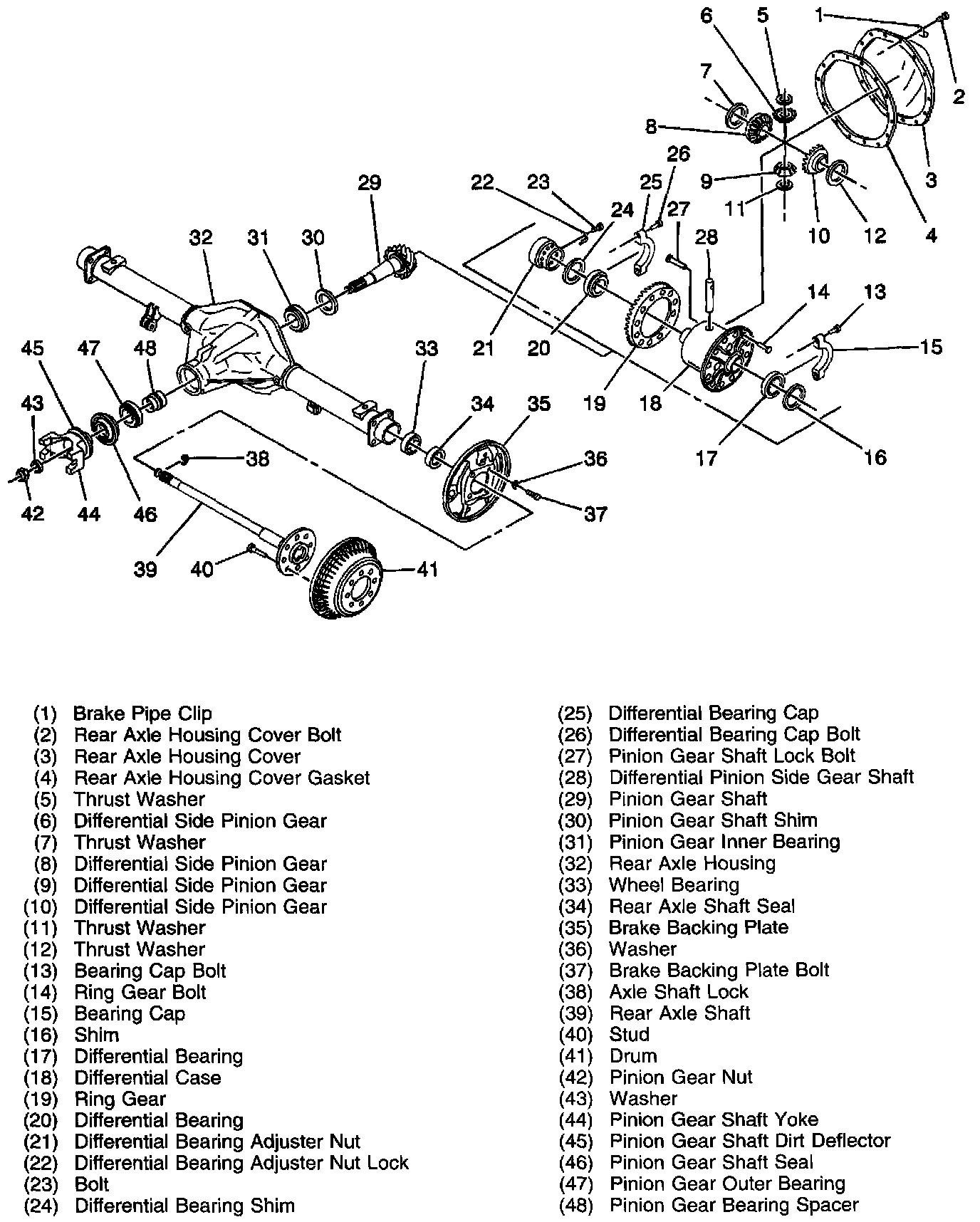

8.6 Inch Rear Drive Axle

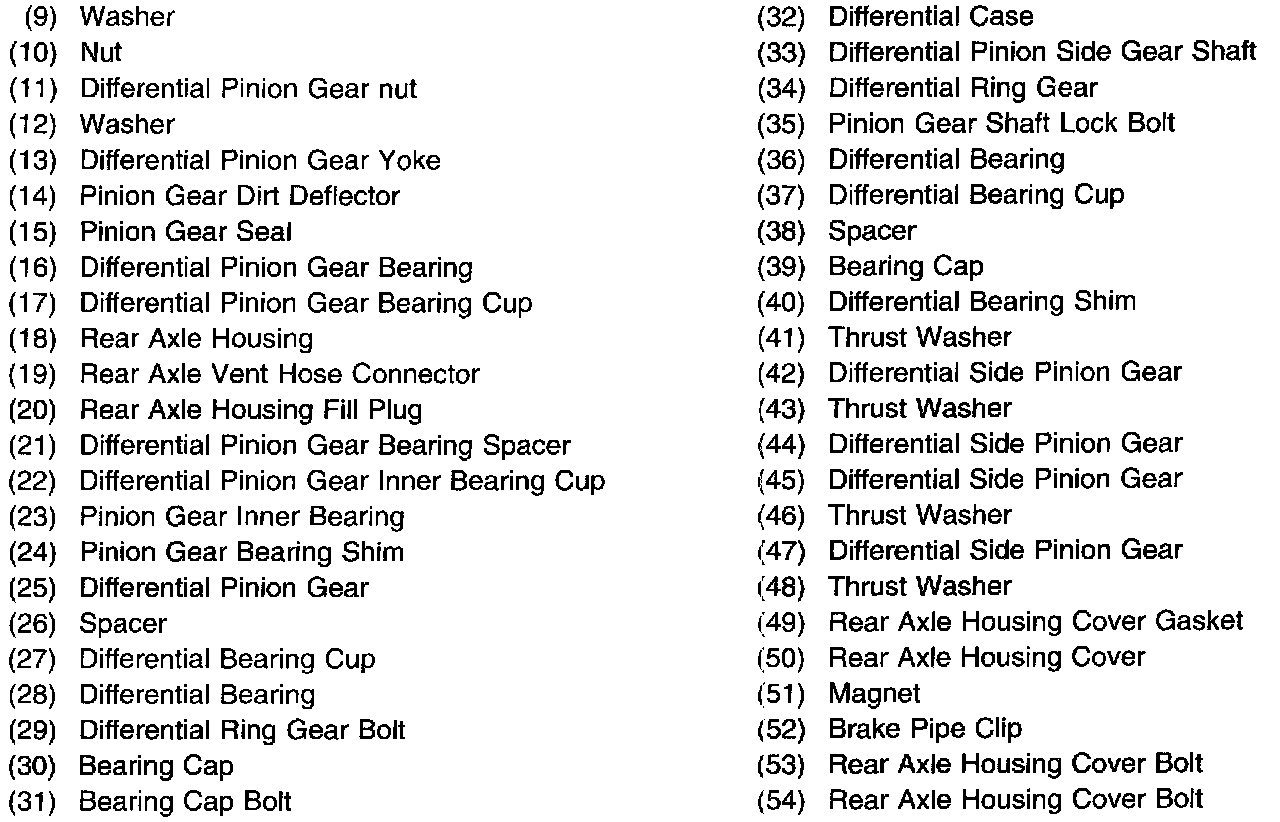

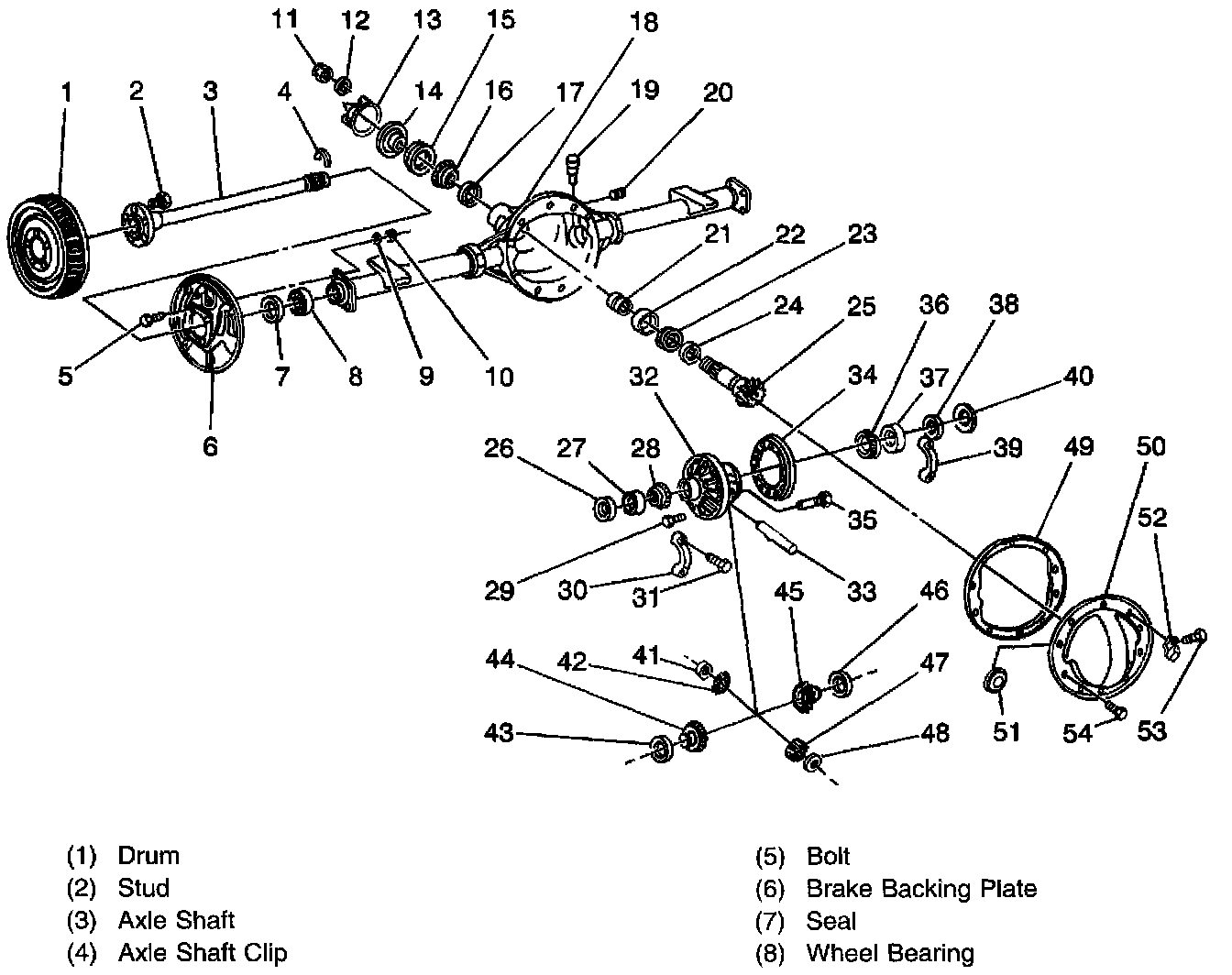

9.5 Inch Rear Drive Axle
