ABS / Traction Control Diagram 1
ABS / Traction Control Diagram 1

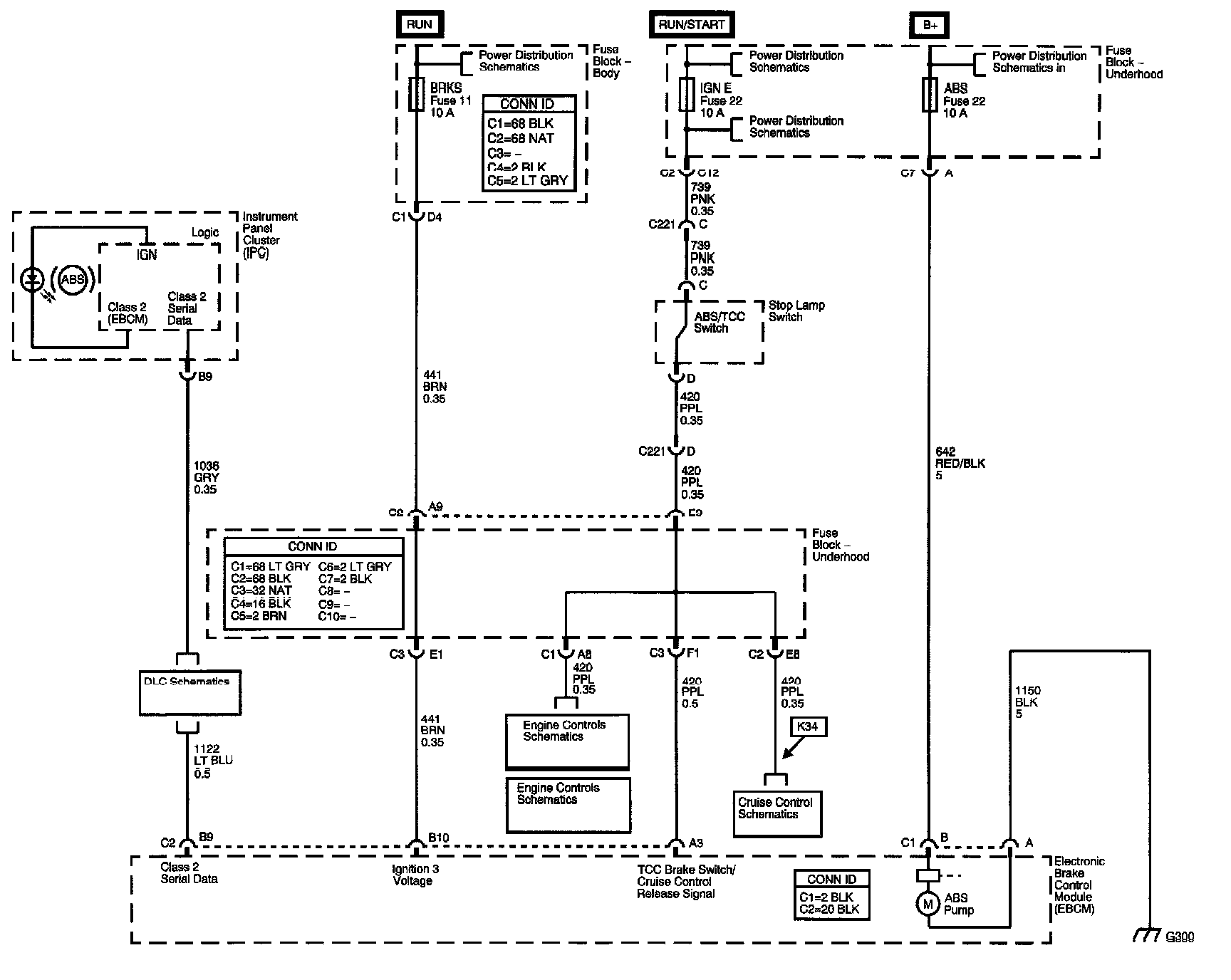

ABS / Traction Control DIAGRAM - 1:
