C203 (With RPO Code YF7/C89)

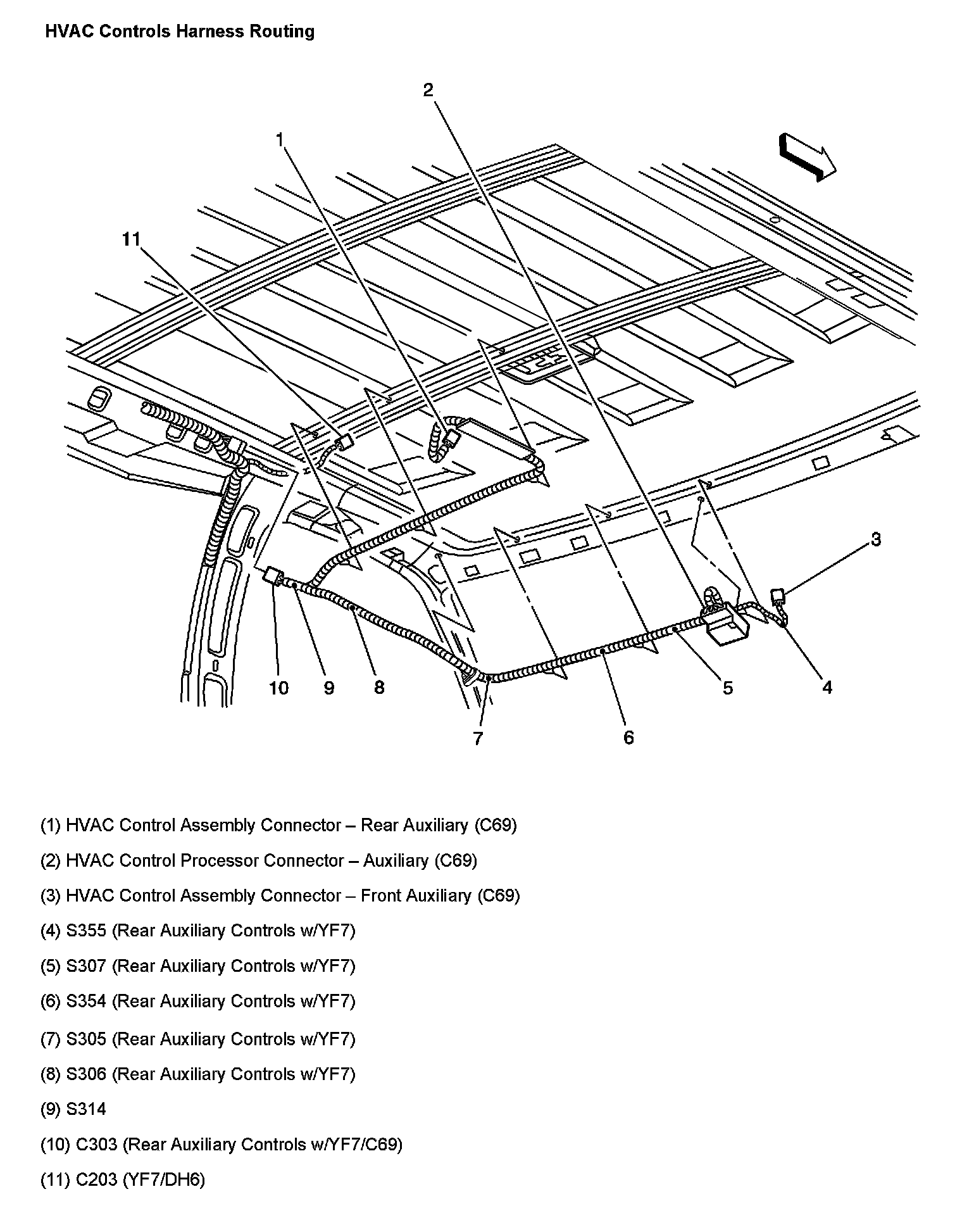

HVAC Controls Harness Routing W/o RPO YF7:

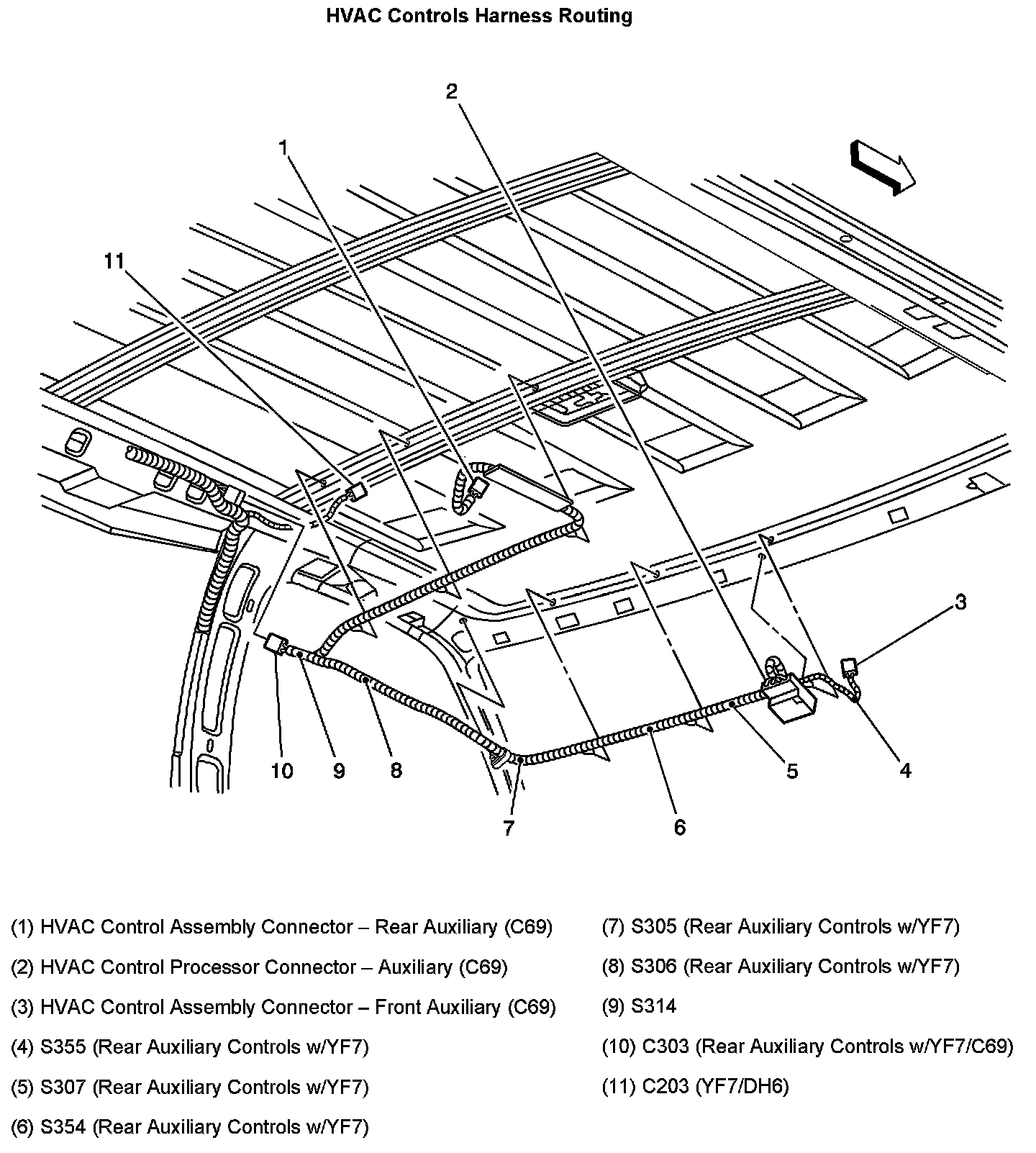

HVAC Controls Harness Routing:
