Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C100 - C199 >> C127

C127

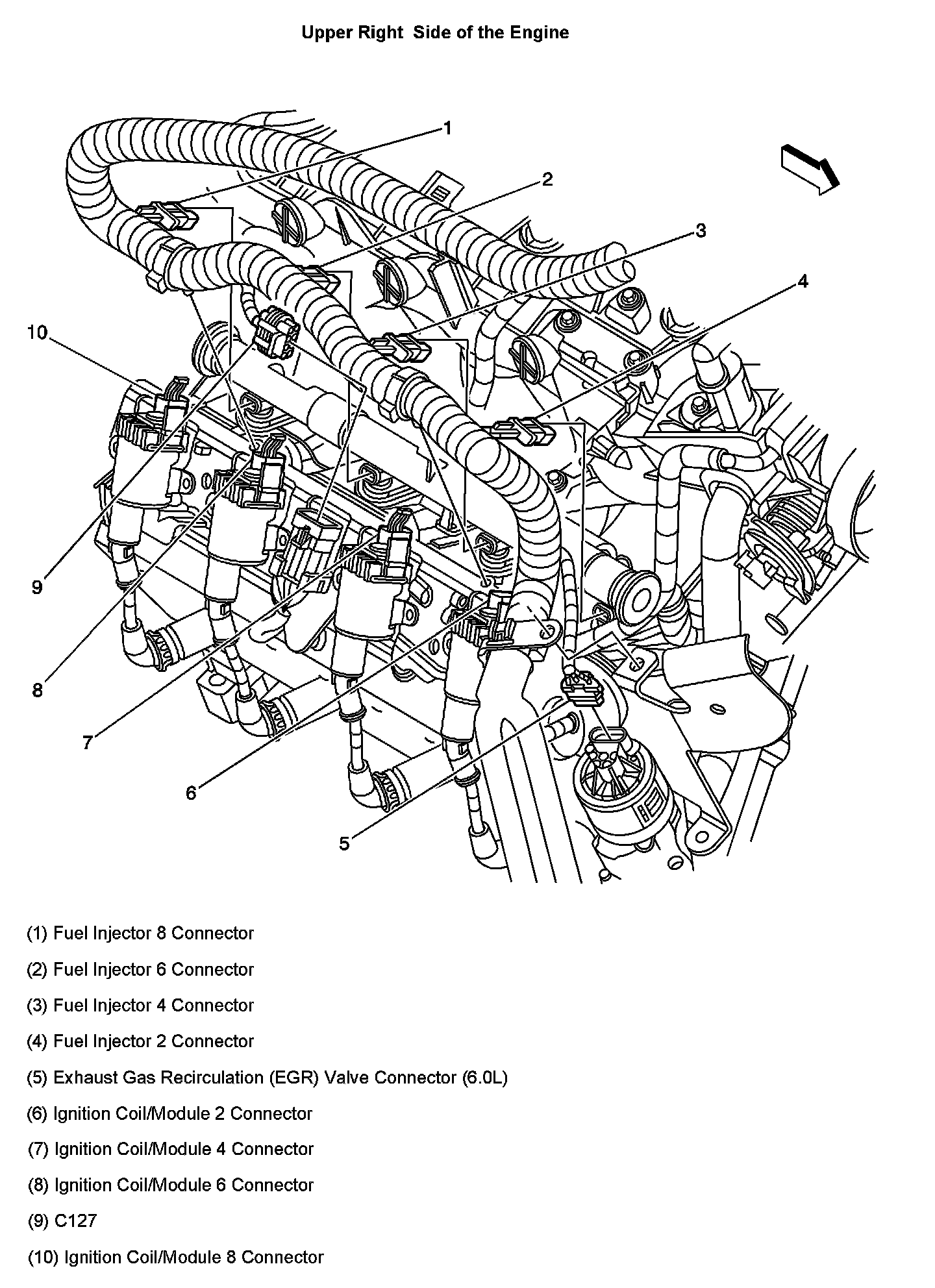

Upper Right Side of the Engine:

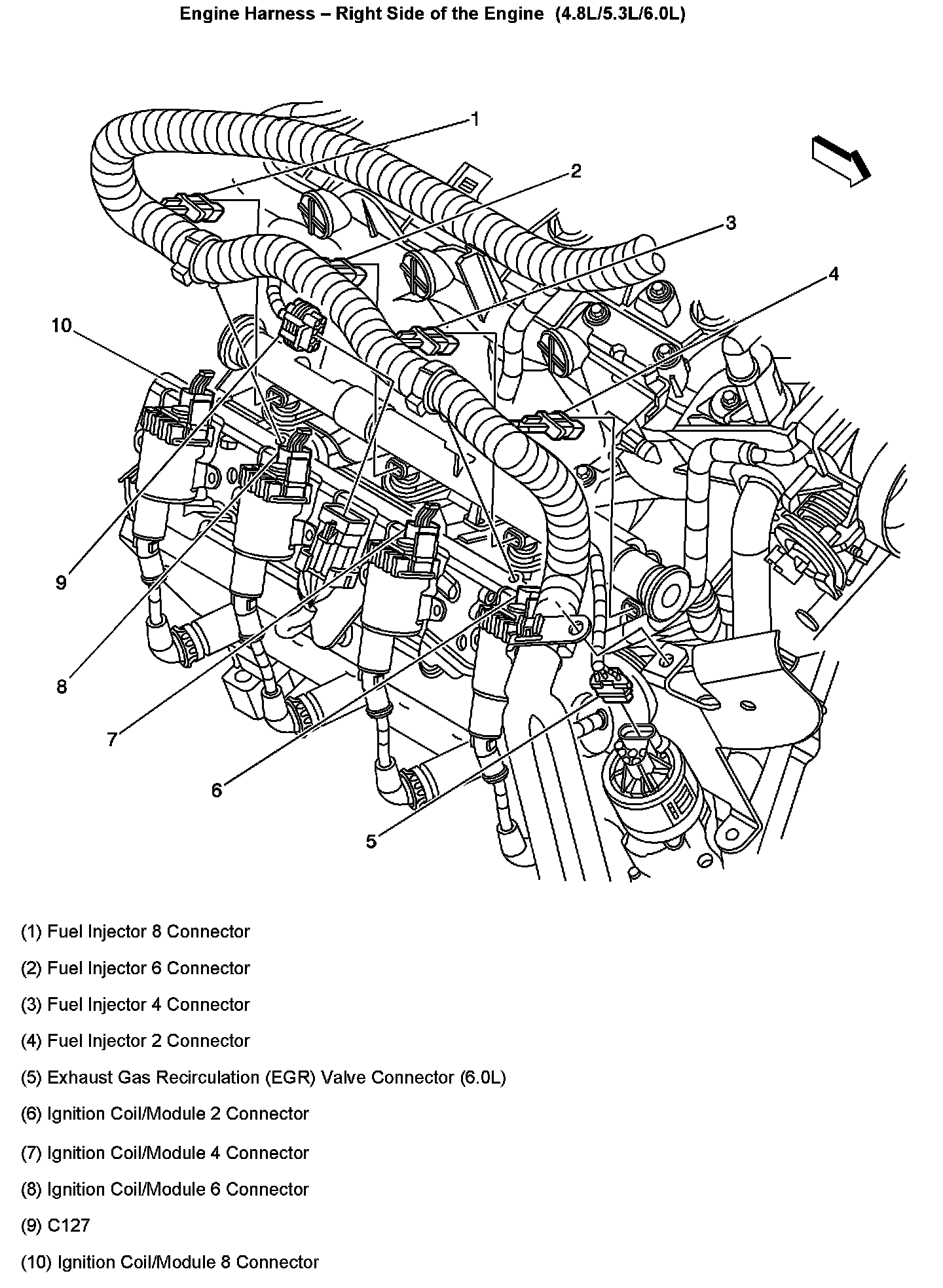

Engine Harness - Right Side Of The Engine:
