Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signals >> Turn Signal Switch

Turn Signal Switch

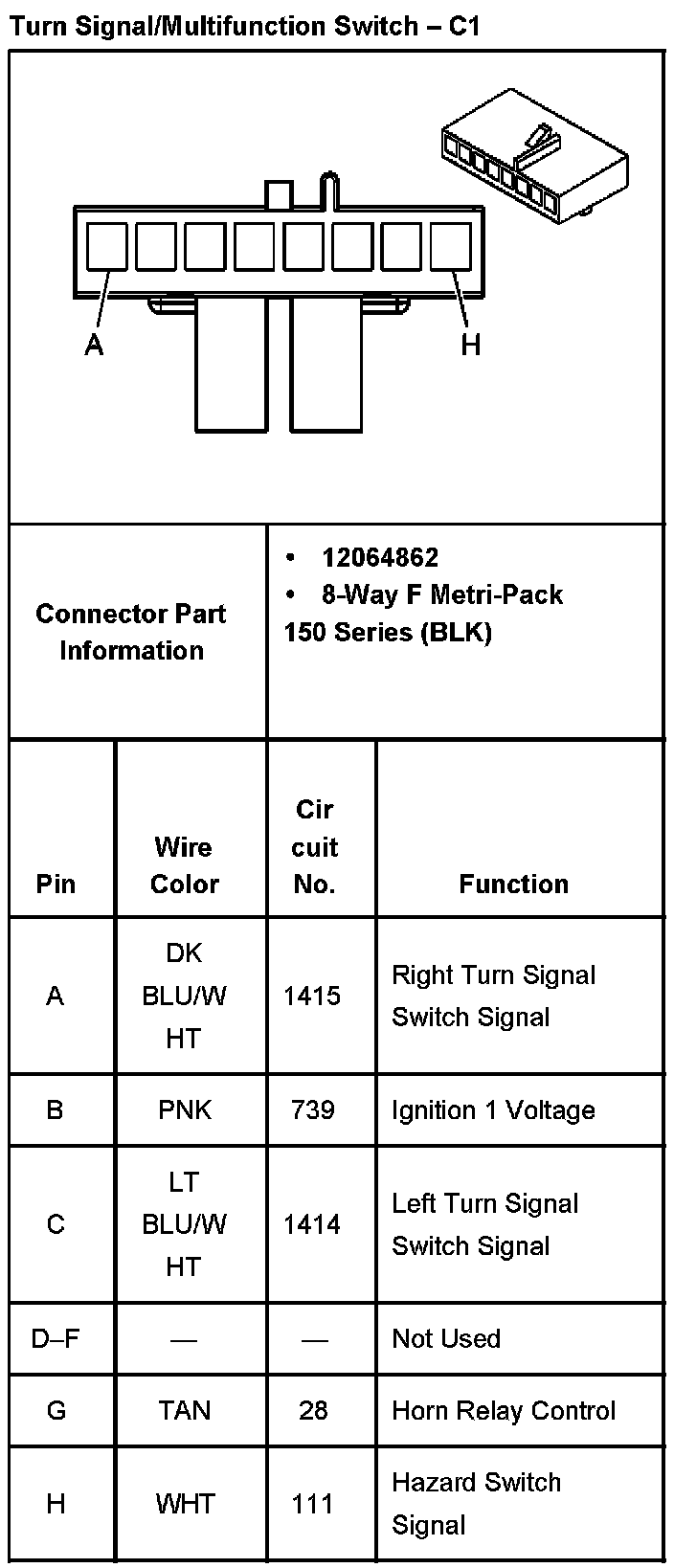

Turn Signal/Multifunction Switch - C1:

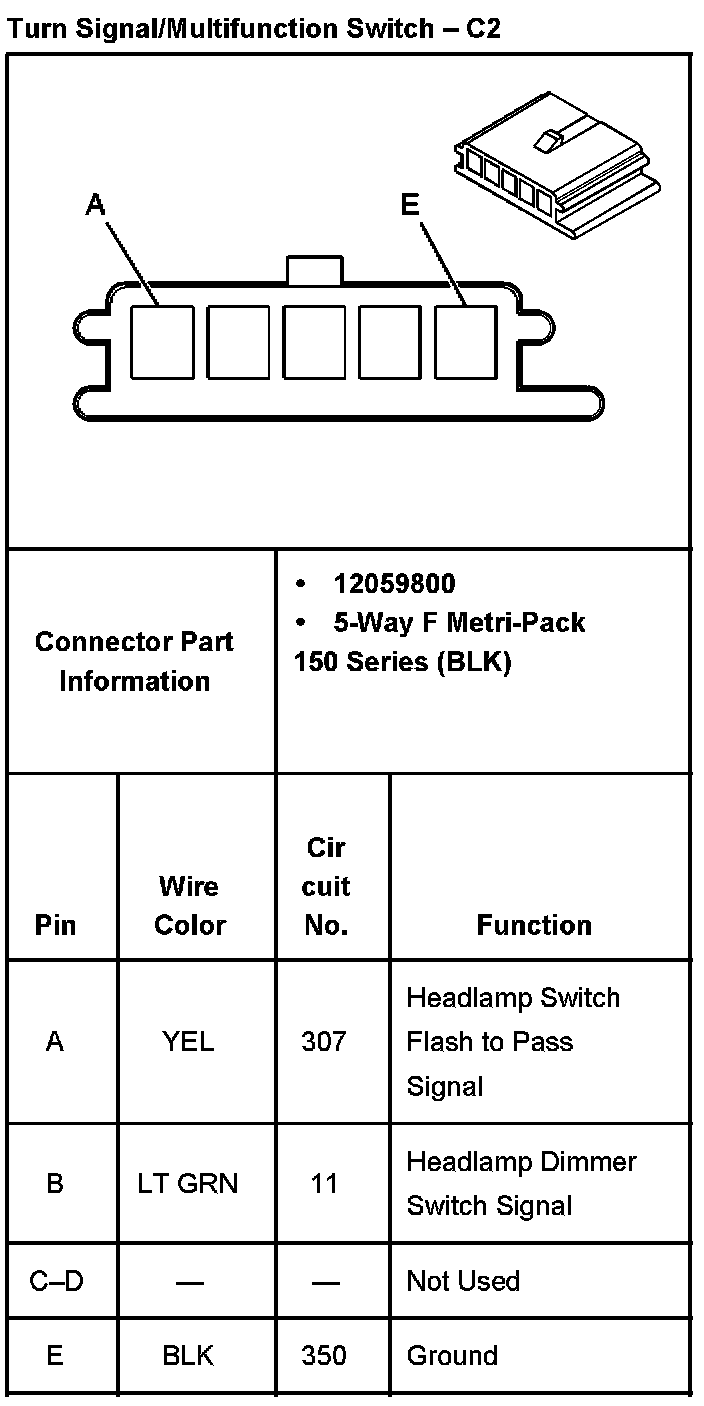

Turn Signal/Multifunction Switch - C2:

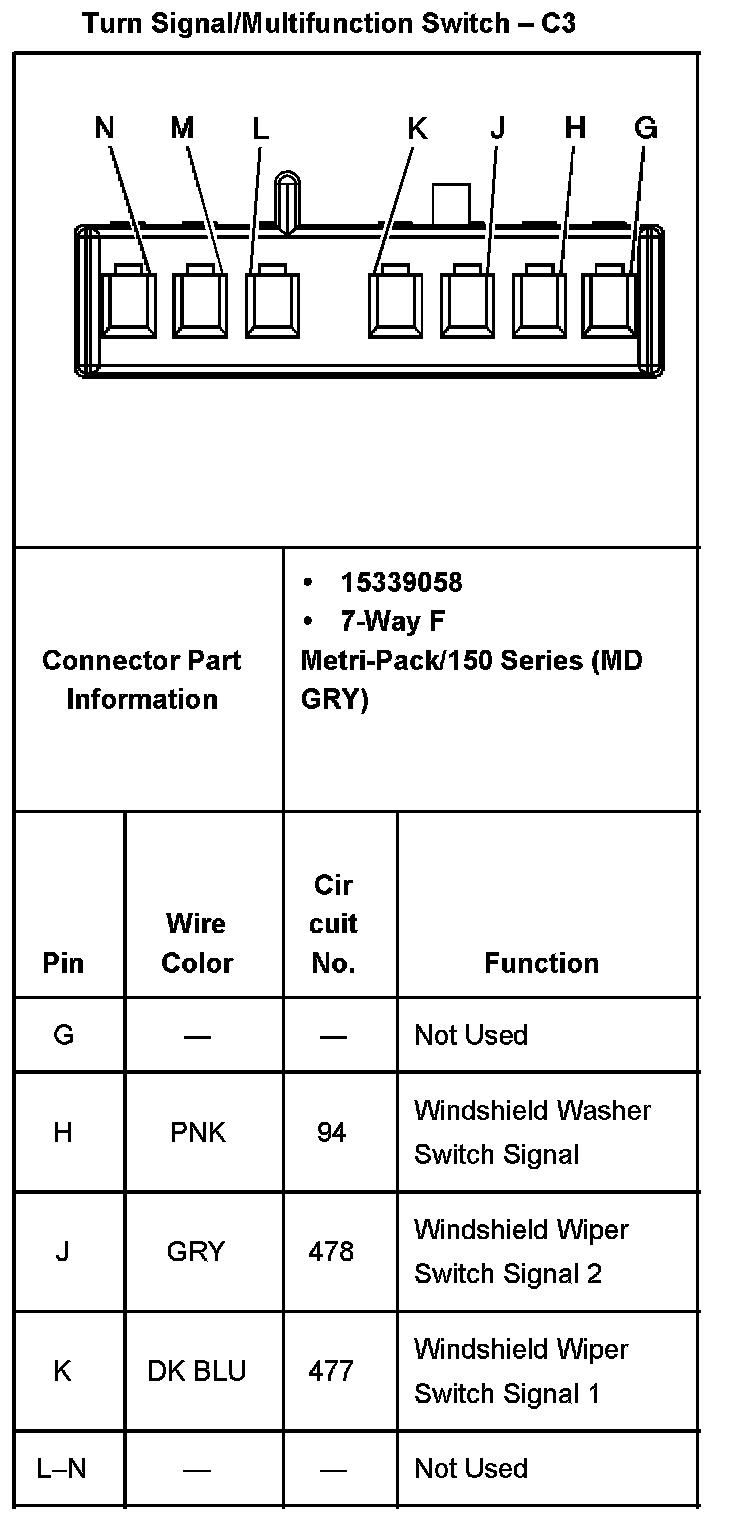

Turn Signal/Multifunction Switch - C3:

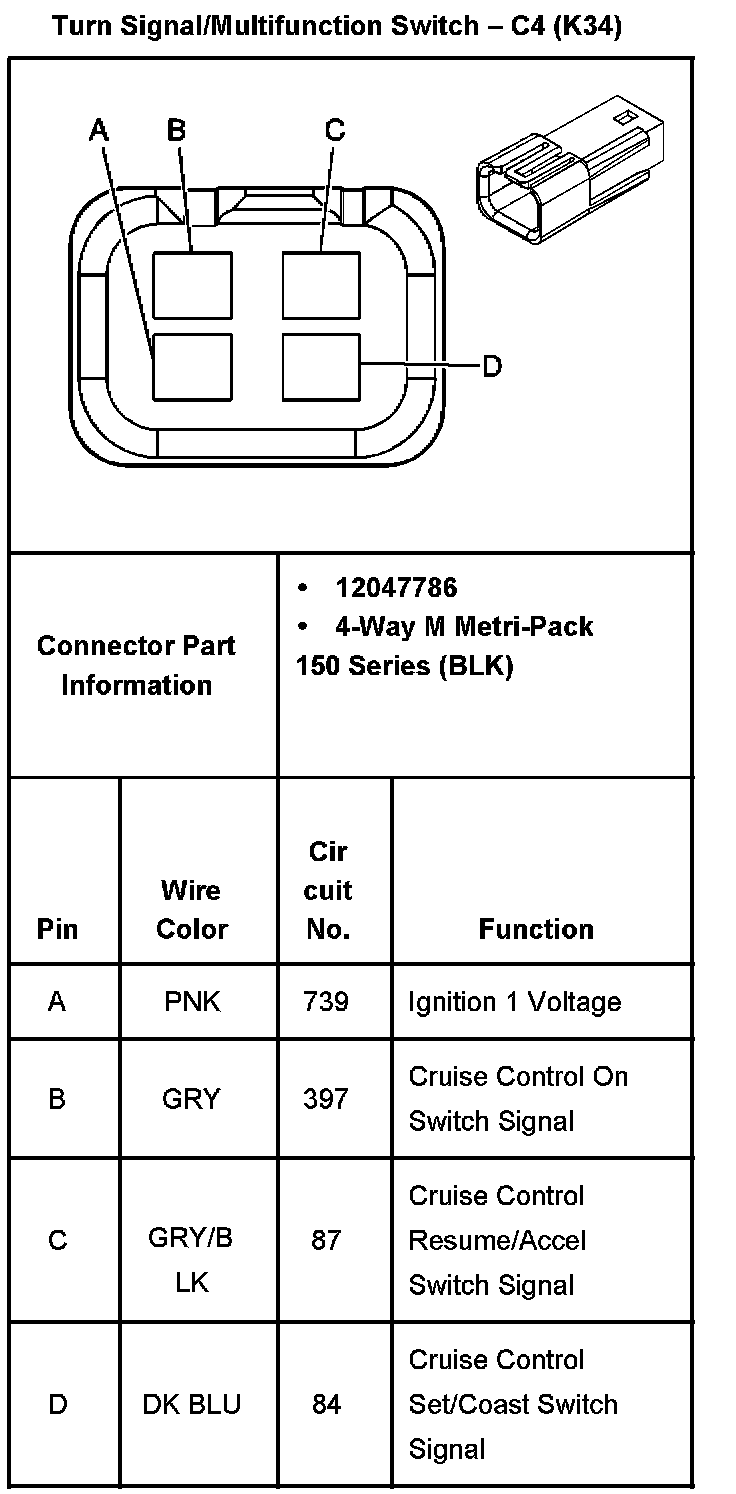

Turn Signal/Multifunction Switch - C4 (With RPO Code K34):

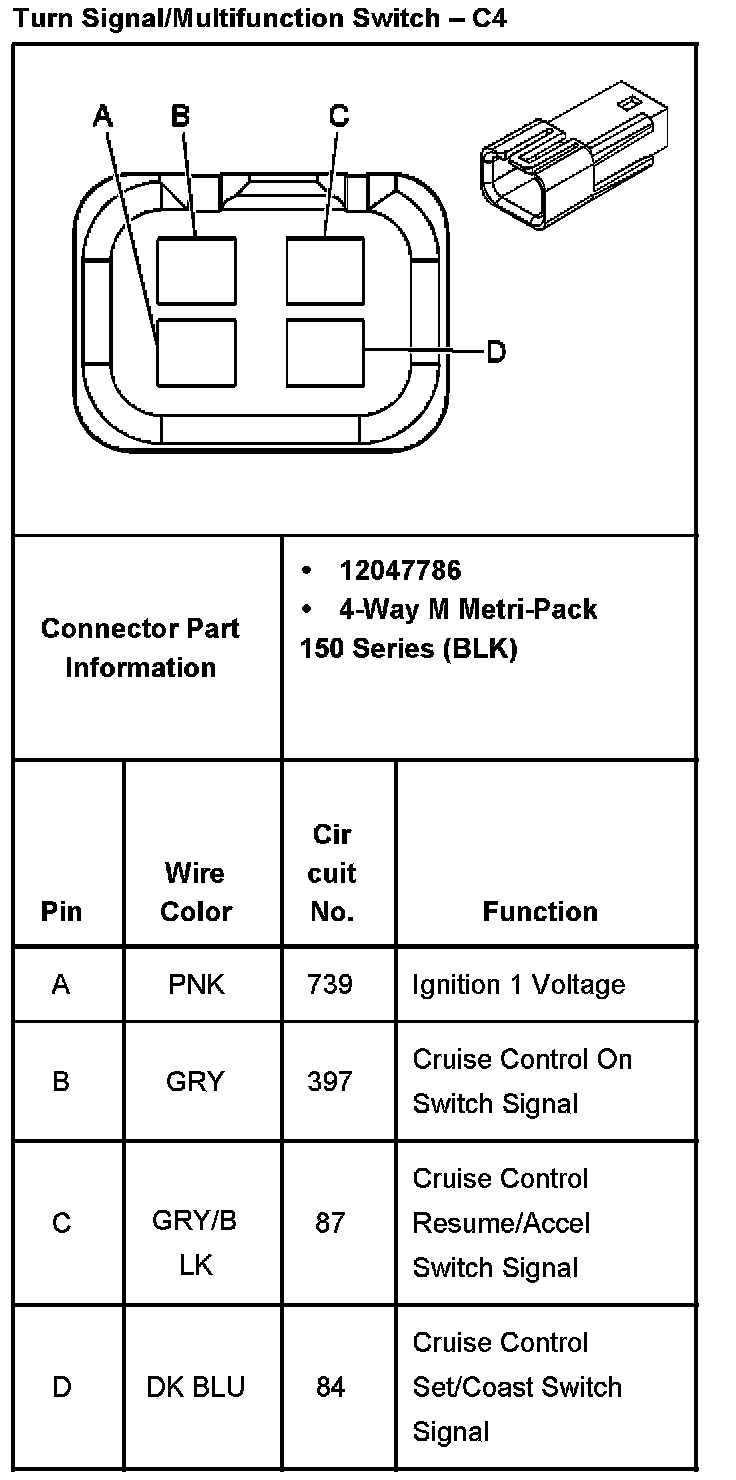

Turn Signal/Multifunction Switch - C4:
