Tail Lamp

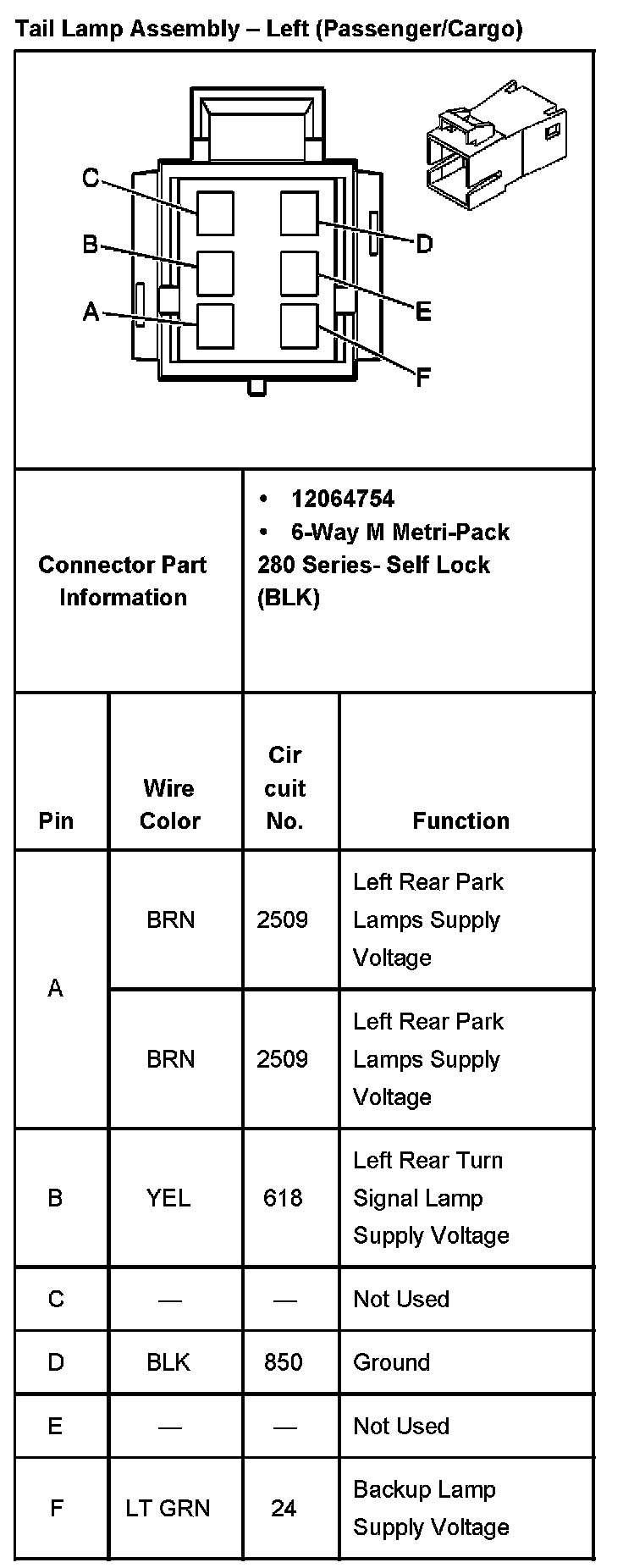

Tail Lamp Assembly - Left (Passenger/Cargo):

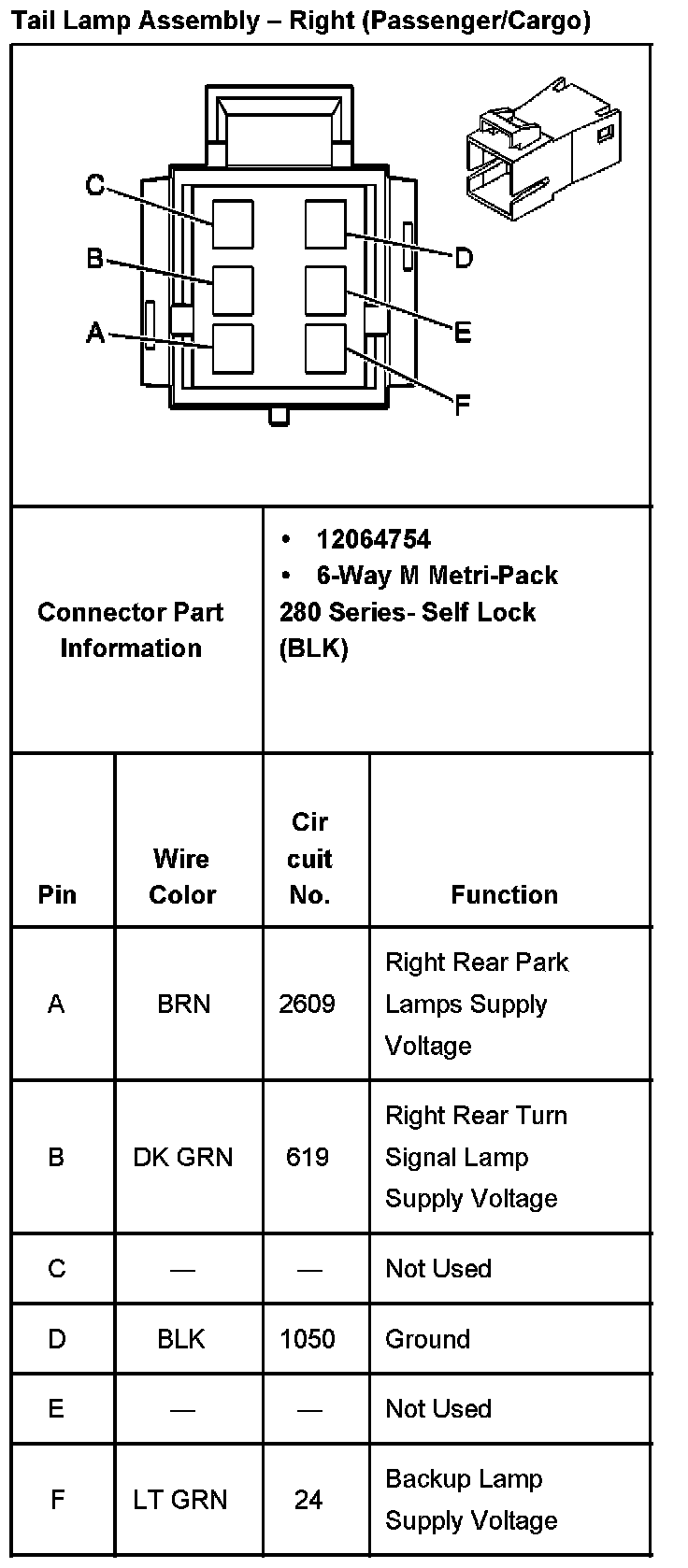

Tail Lamp Assembly - Right (Passenger/Cargo):
