Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - RR Door (With RPO Code UB1/UC6)

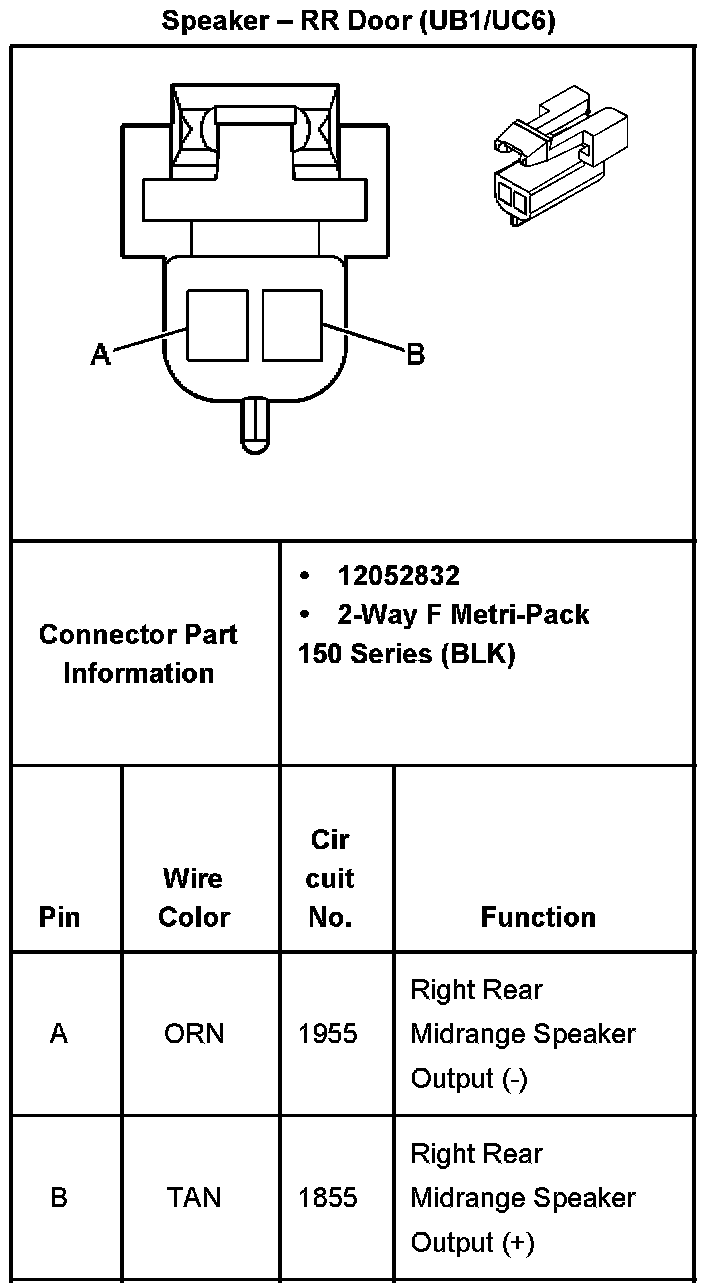

Speaker - RR Door (With RPO Code UB1/UC6)

Speaker - RR Door (With RPO Code UB1/UC6):
