Seat Sensor/Switch

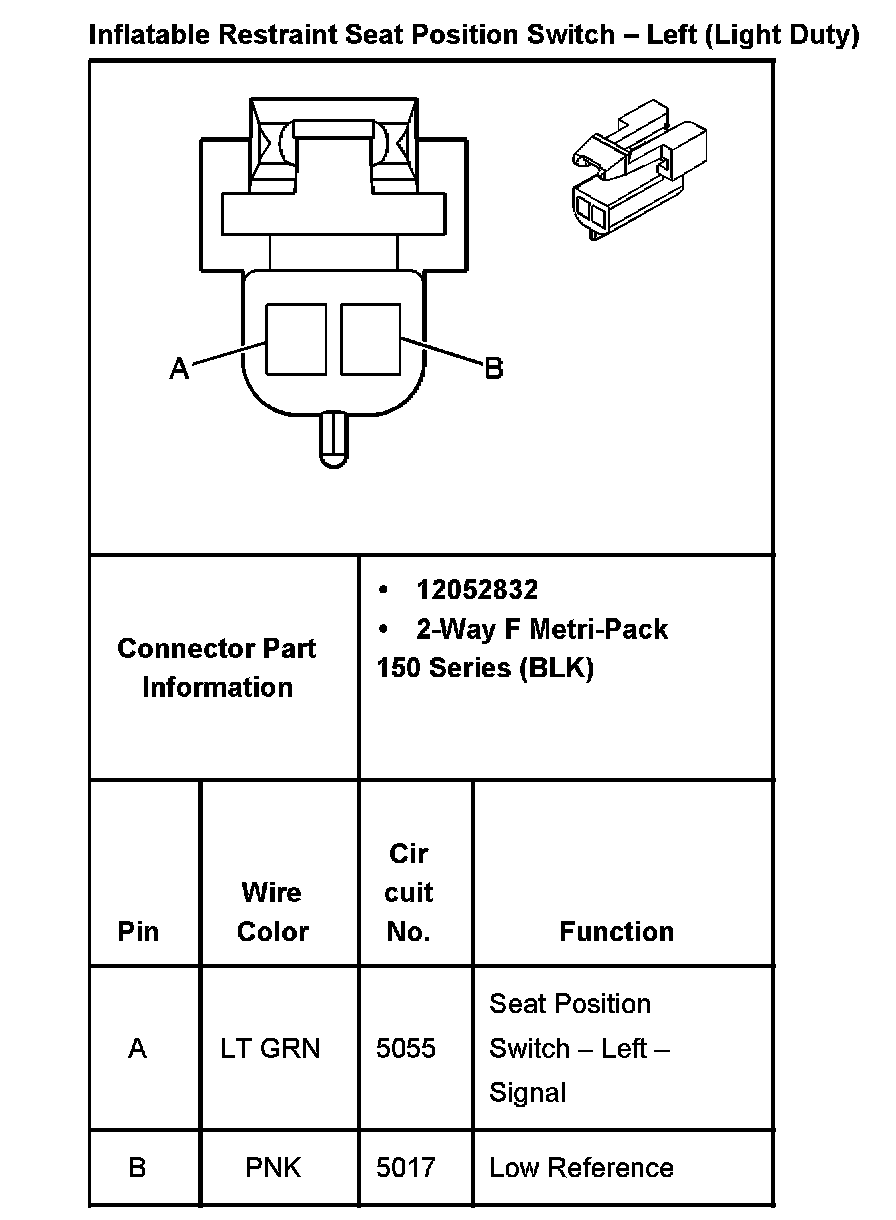

Inflatable Restraint Seat Position Switch - Left (Light Duty):

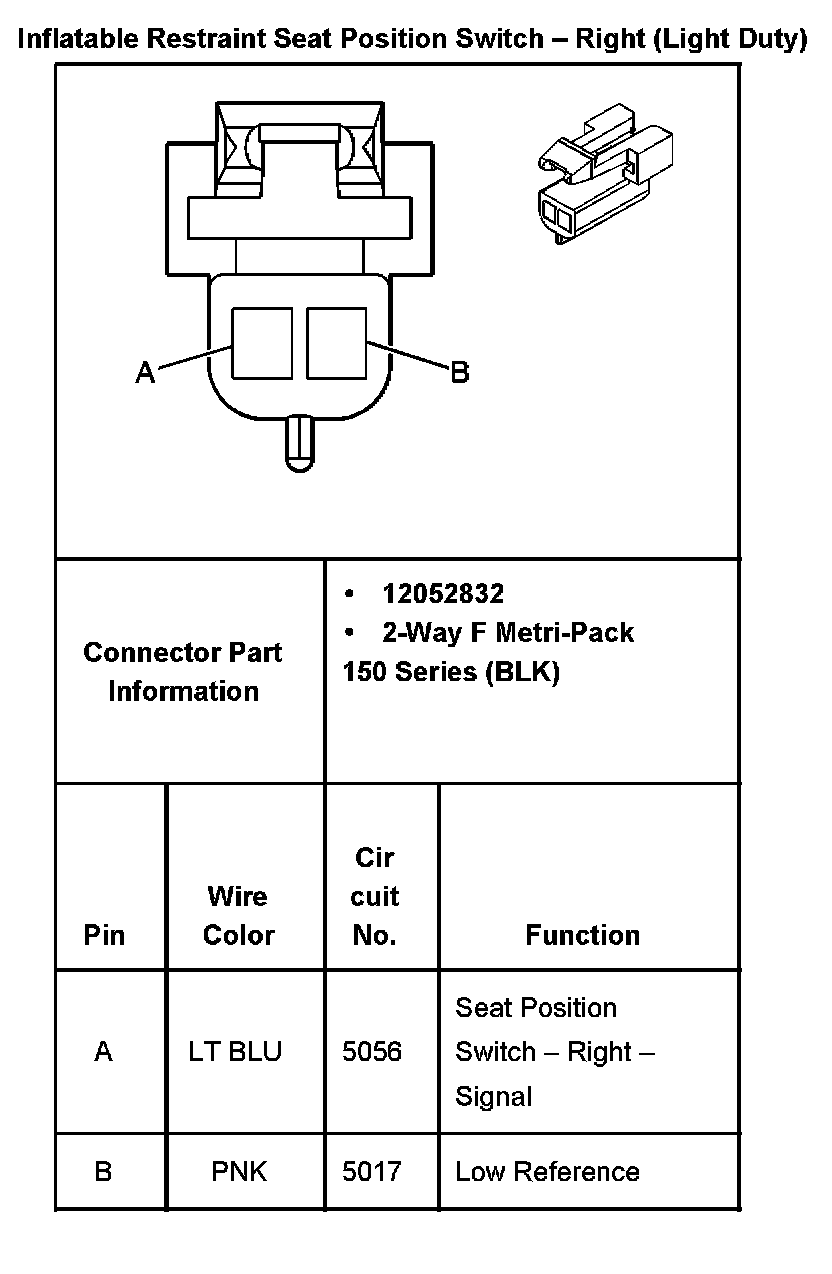

Inflatable Restraint Seat Position Switch - Right (Light Duty):
