Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Tensioner

Seat Belt Tensioner

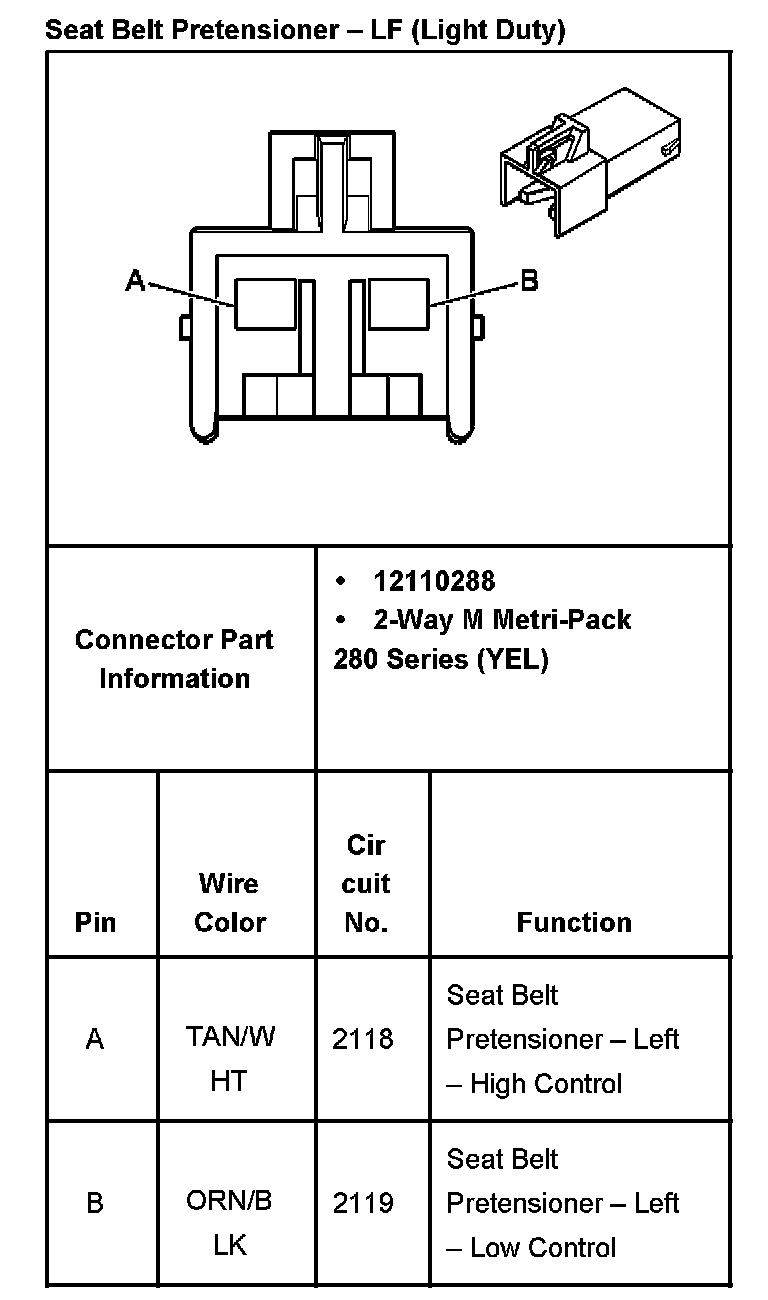

Seat Belt Pretensioner - LF (Light Duty):



Seat Belt Pretensioner - RF (Light Duty):
