Rear Seat Audio (Rsa) Control (With RPO Code UK6)
Rear Seat Audio (Rsa) Control (With RPO Code UK6)

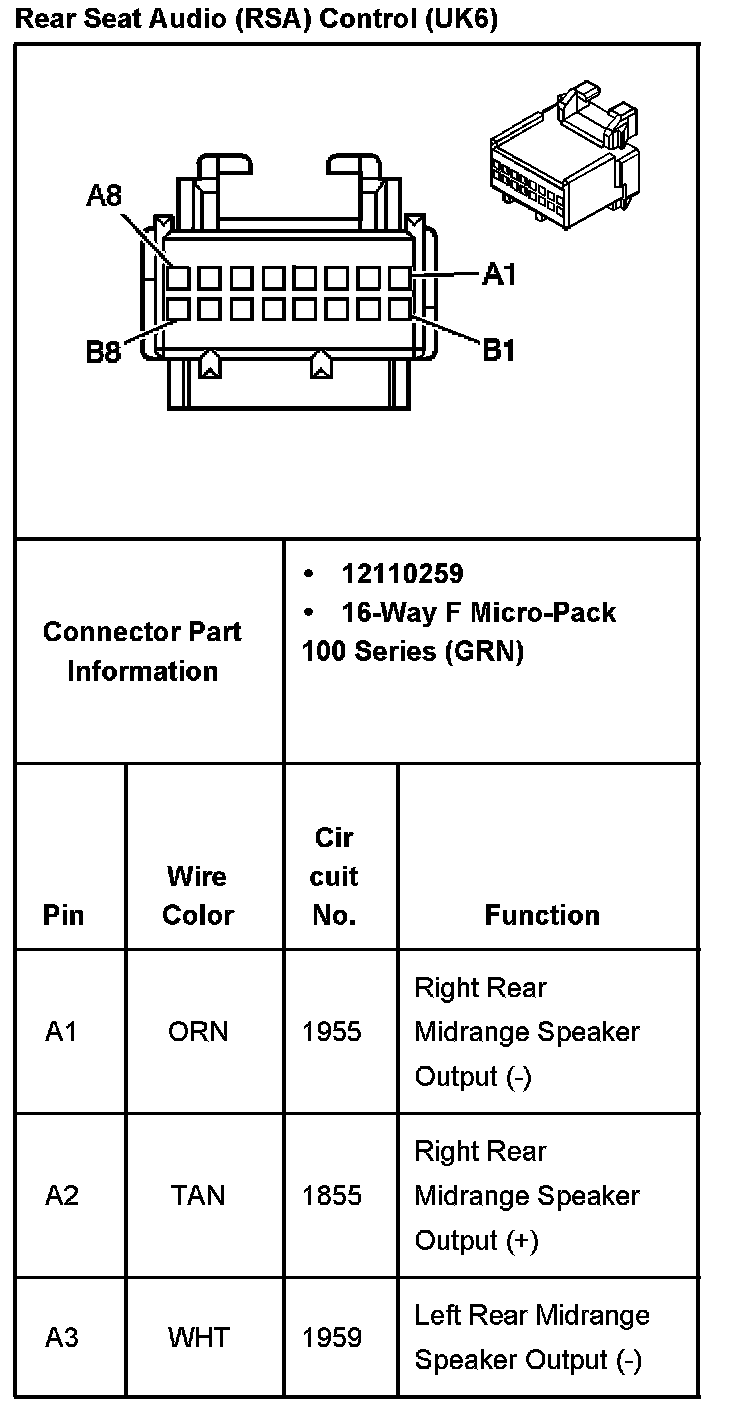

Rear Seat Audio (RSA) Control (With RPO Code UK6) Part 1:

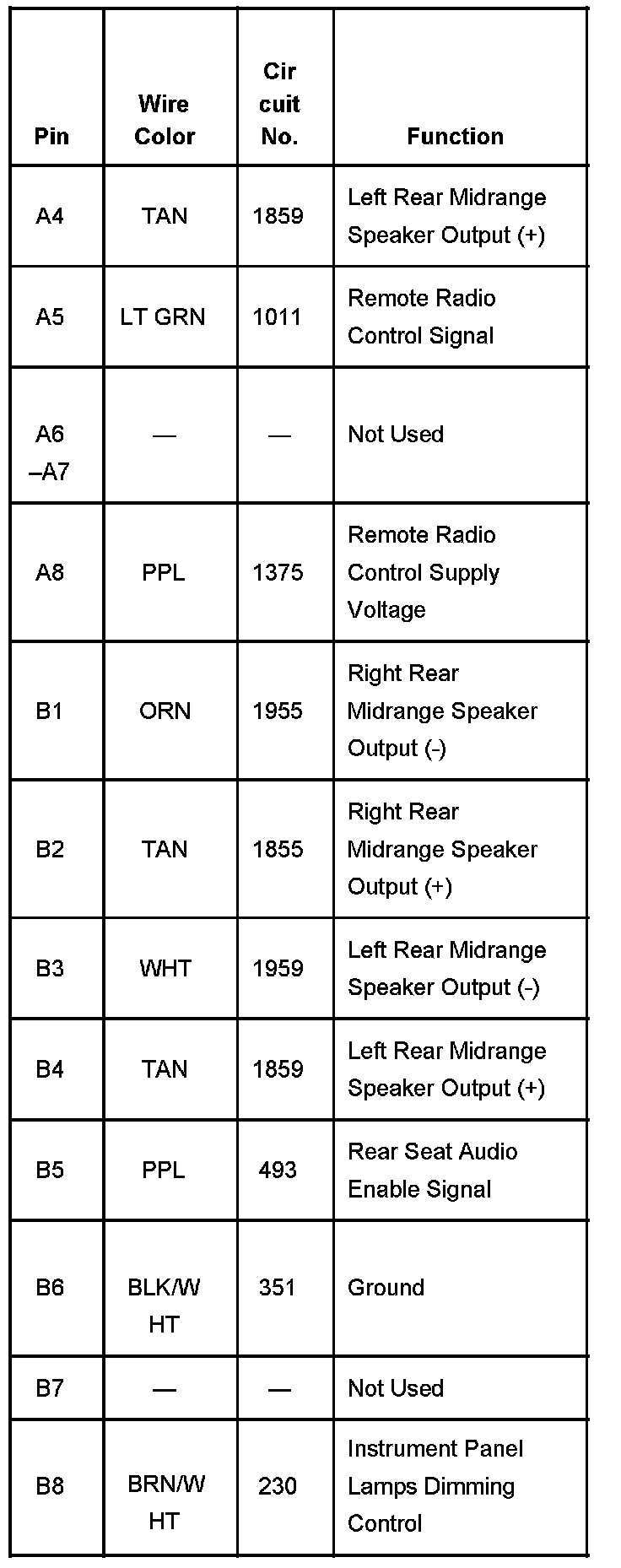

Rear Seat Audio (RSA) Control (With RPO Code UK6) Part 2:
