C902 Rear Window Defog to Right Cargo Door (RPO Code C49)
C902 Rear Window Defog to Right Cargo Door (RPO Code C49)

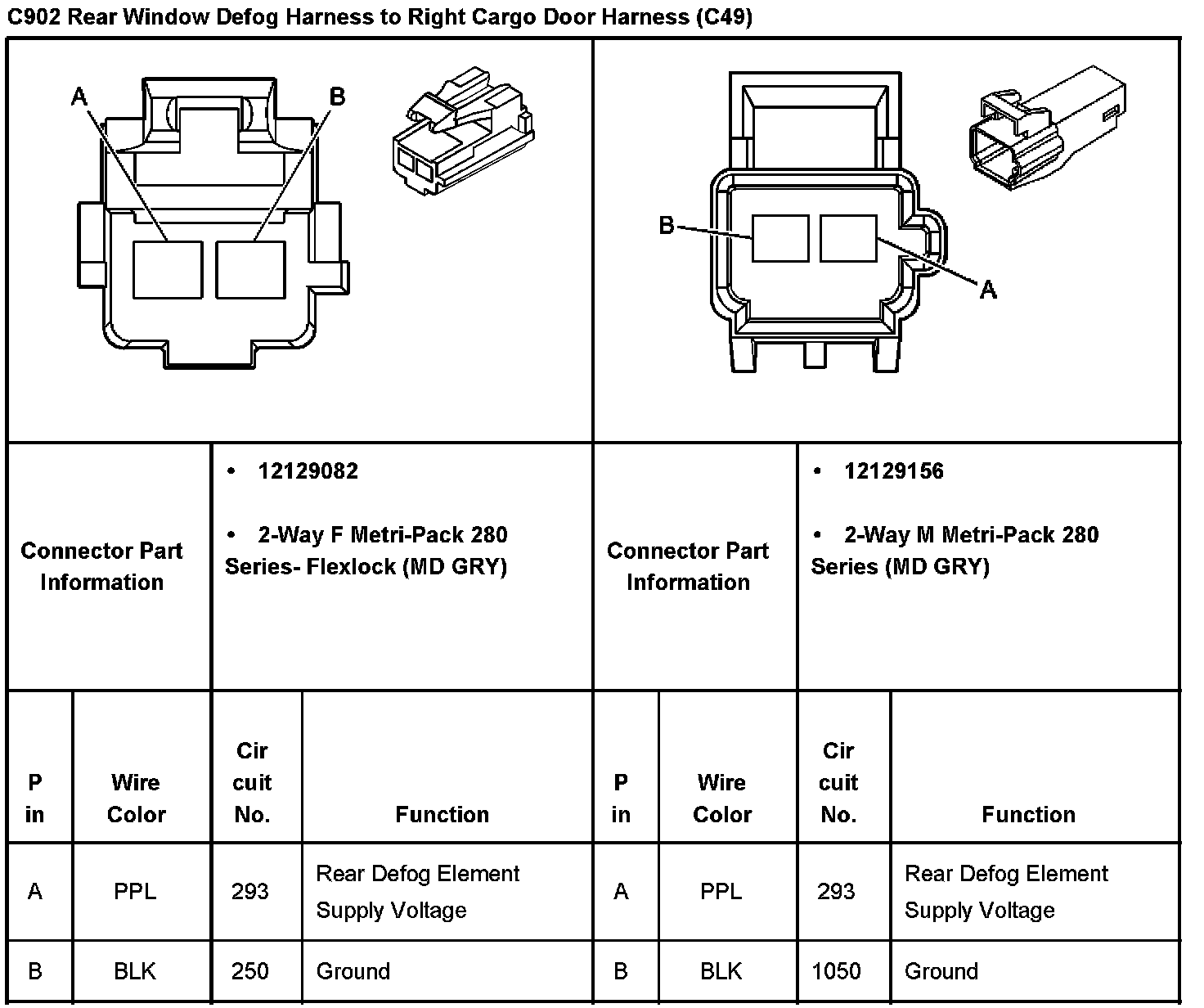

C902 Rear Window Defog Harness To Right Cargo Door Harness (With RPO Code C49):
