C901 Rear Window Defog to Left Cargo Door (RPO Code C49)
C901 Rear Window Defog to Left Cargo Door (RPO Code C49)

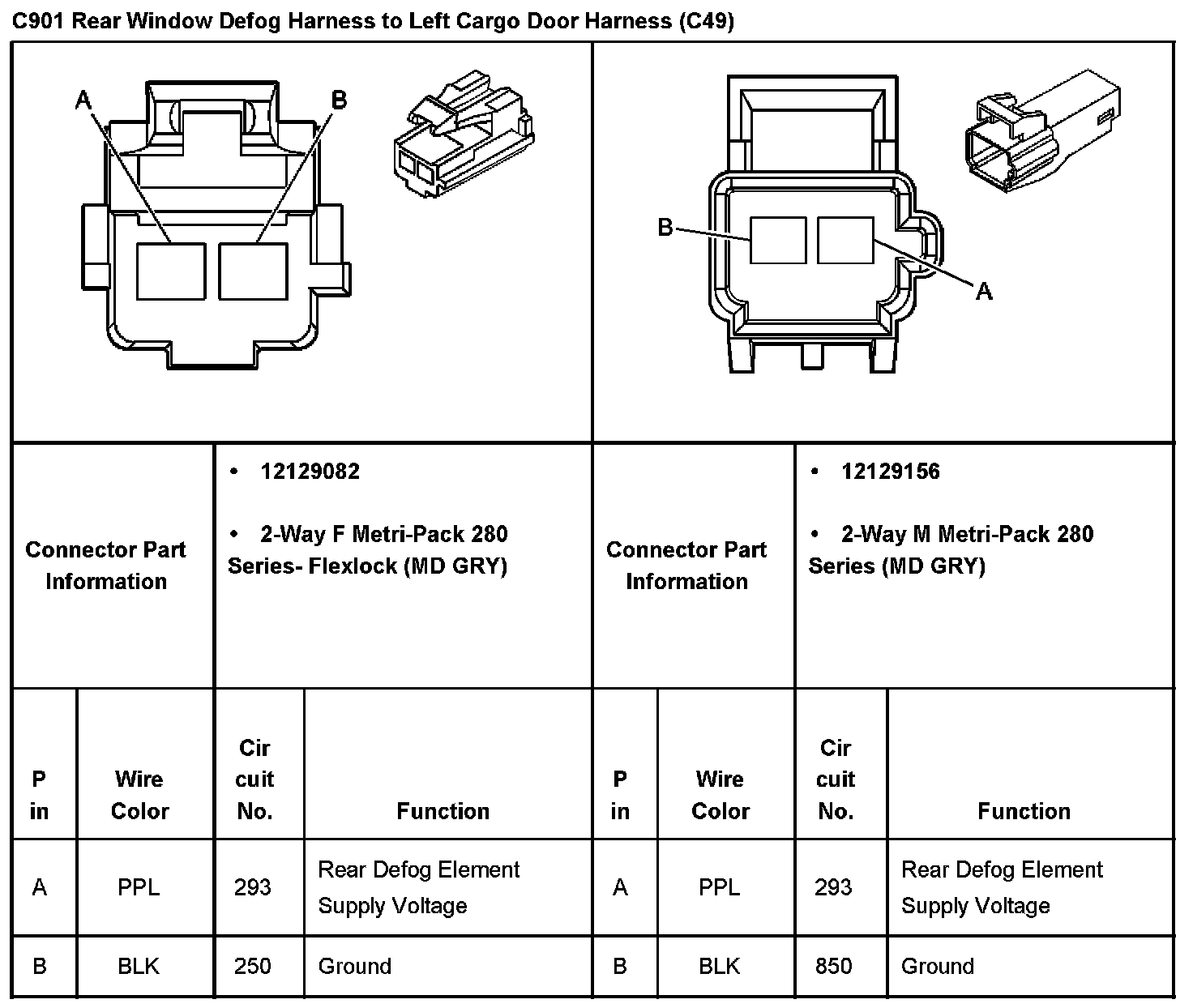

C901 Rear Window Defog Harness To Left Cargo Door Harness (With RPO Code C49):
