C420 Front to Rear Headliner Rear Aux Controls W/O RPO Code YF7

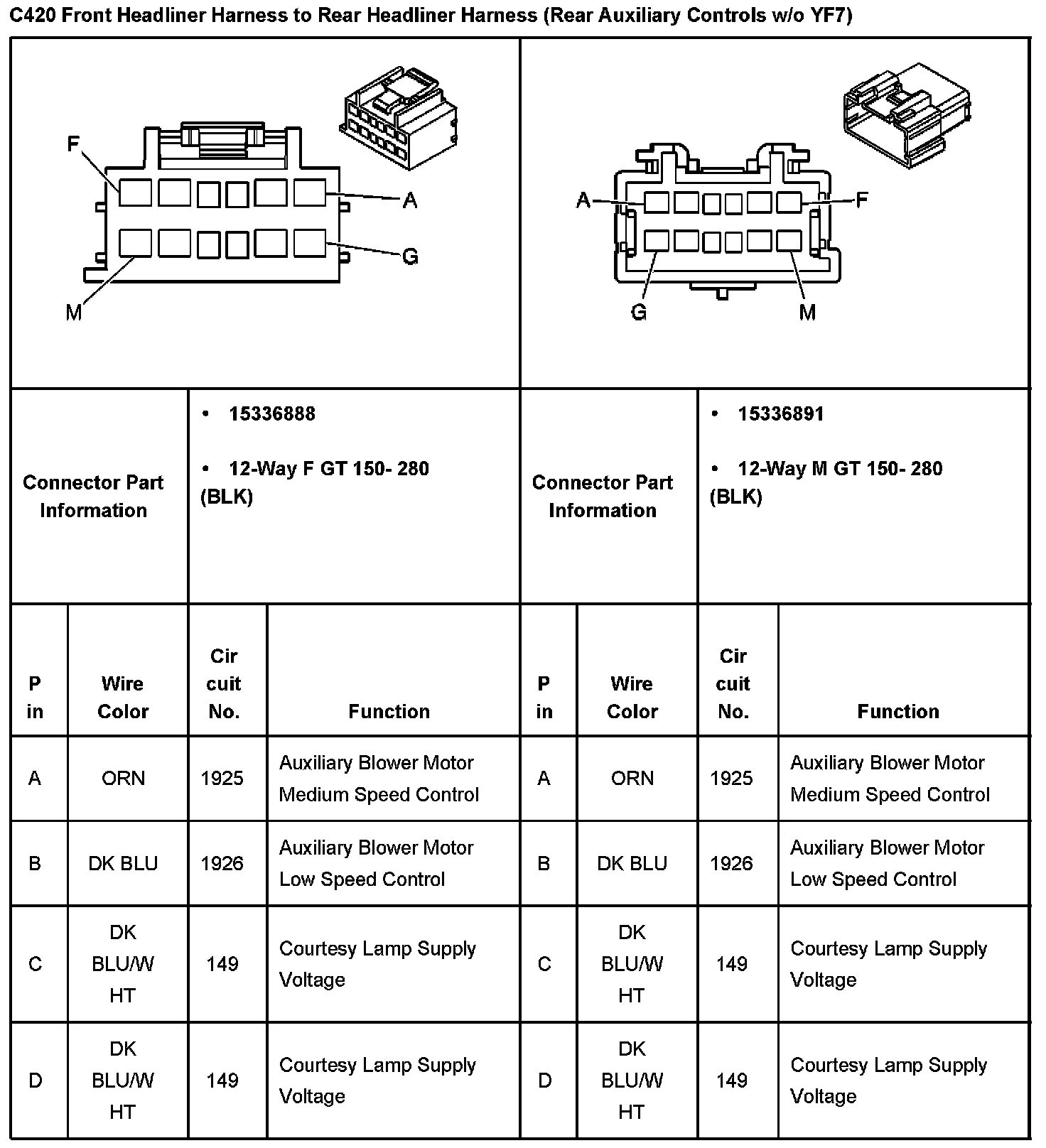

C420 Front Headliner Harness To Rear Headliner Harness (Rear Auxiliary Controls Without RPO Code YF7) Part 1:

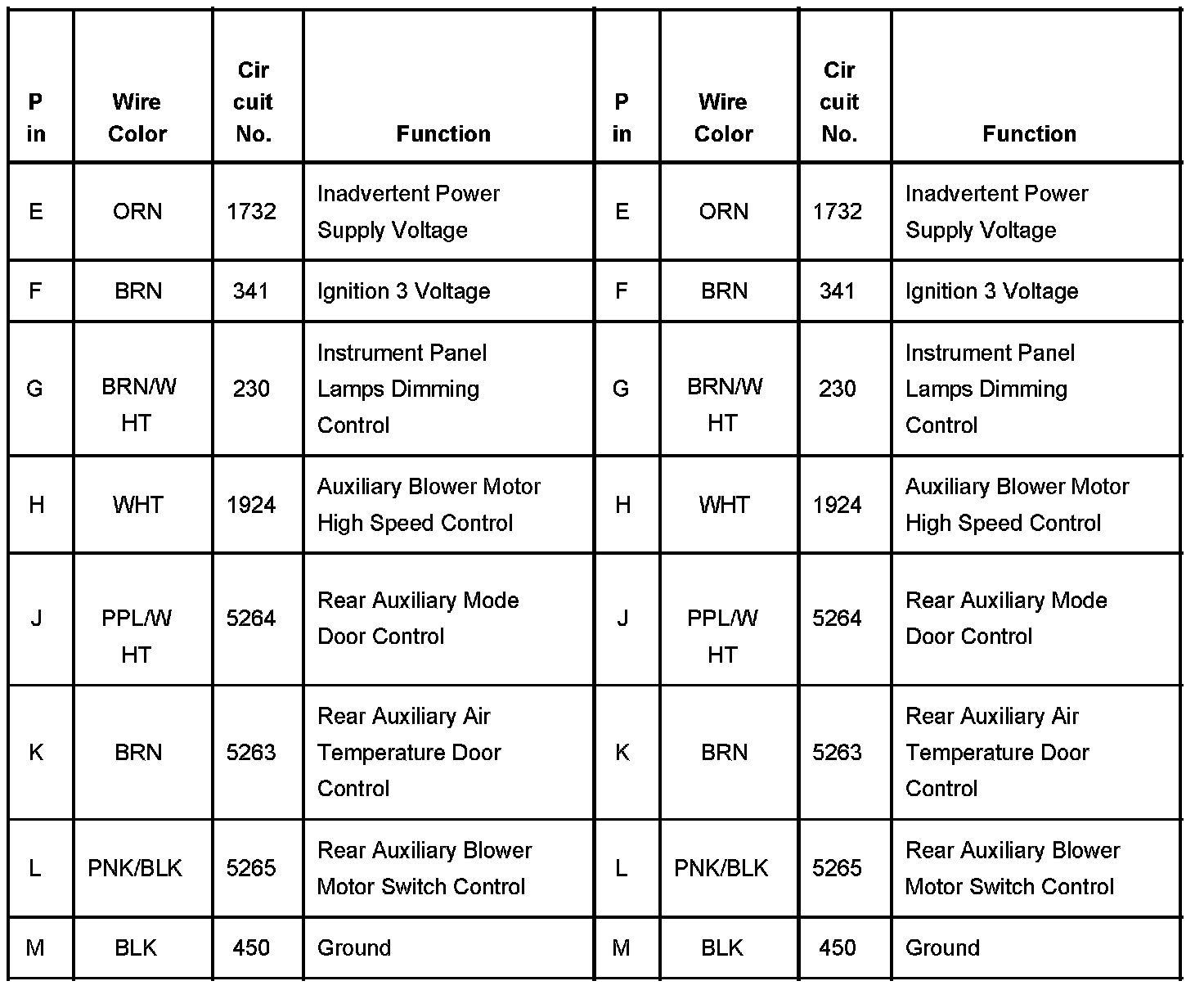

C420 Front Headliner Harness To Rear Headliner Harness (Rear Auxiliary Controls Without RPO Code YF7) Part 2:
