C321 Upfitter Harness to Body Harness (With RPO Code YF7)
C321 Upfitter Harness to Body Harness (With RPO Code YF7)

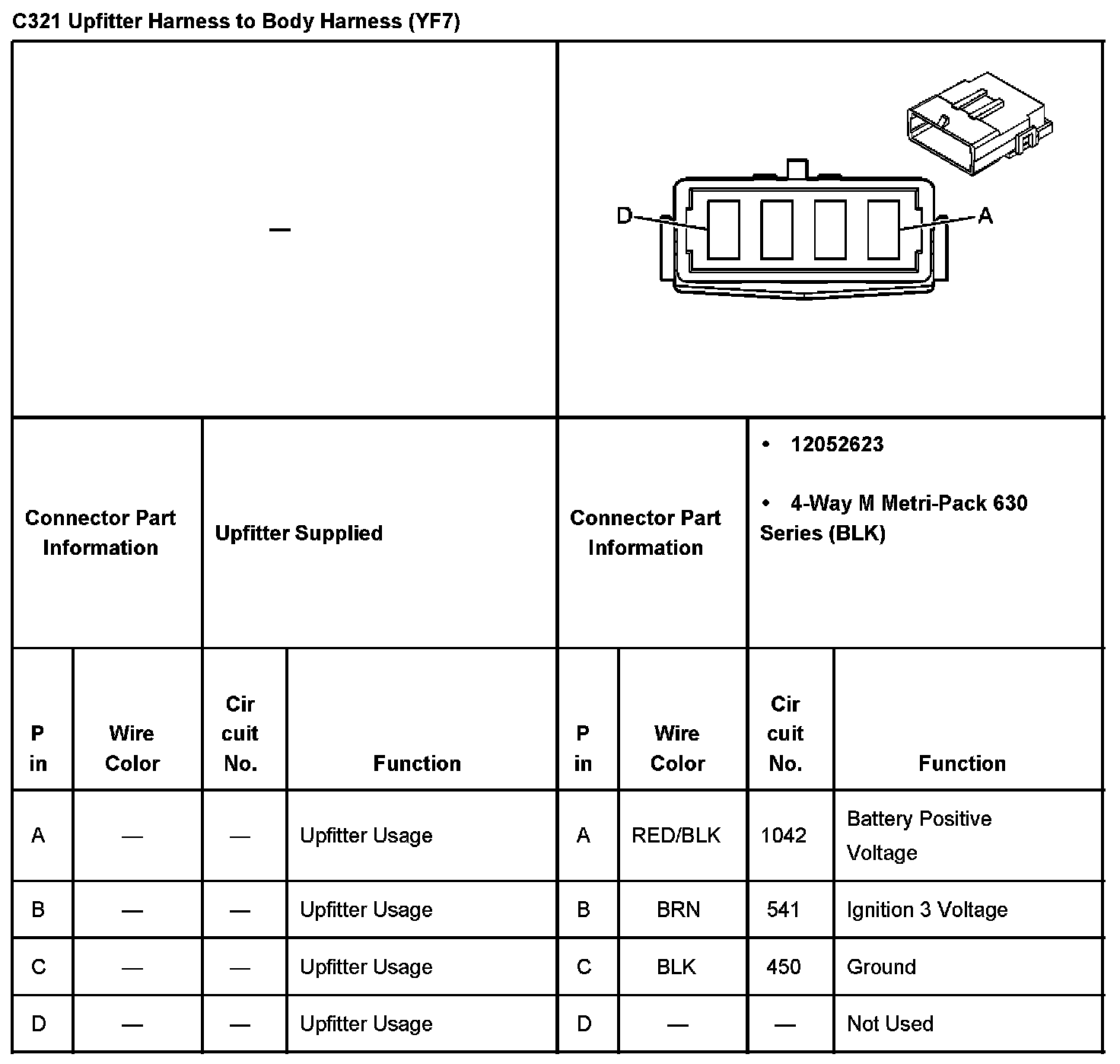

C321 Upfitter Harness To Body Harness (With RPO Code YF7):
