C319 Rear Heater Switch to Body (RPO Code C36)
C319 Rear Heater Switch to Body (RPO Code C36)

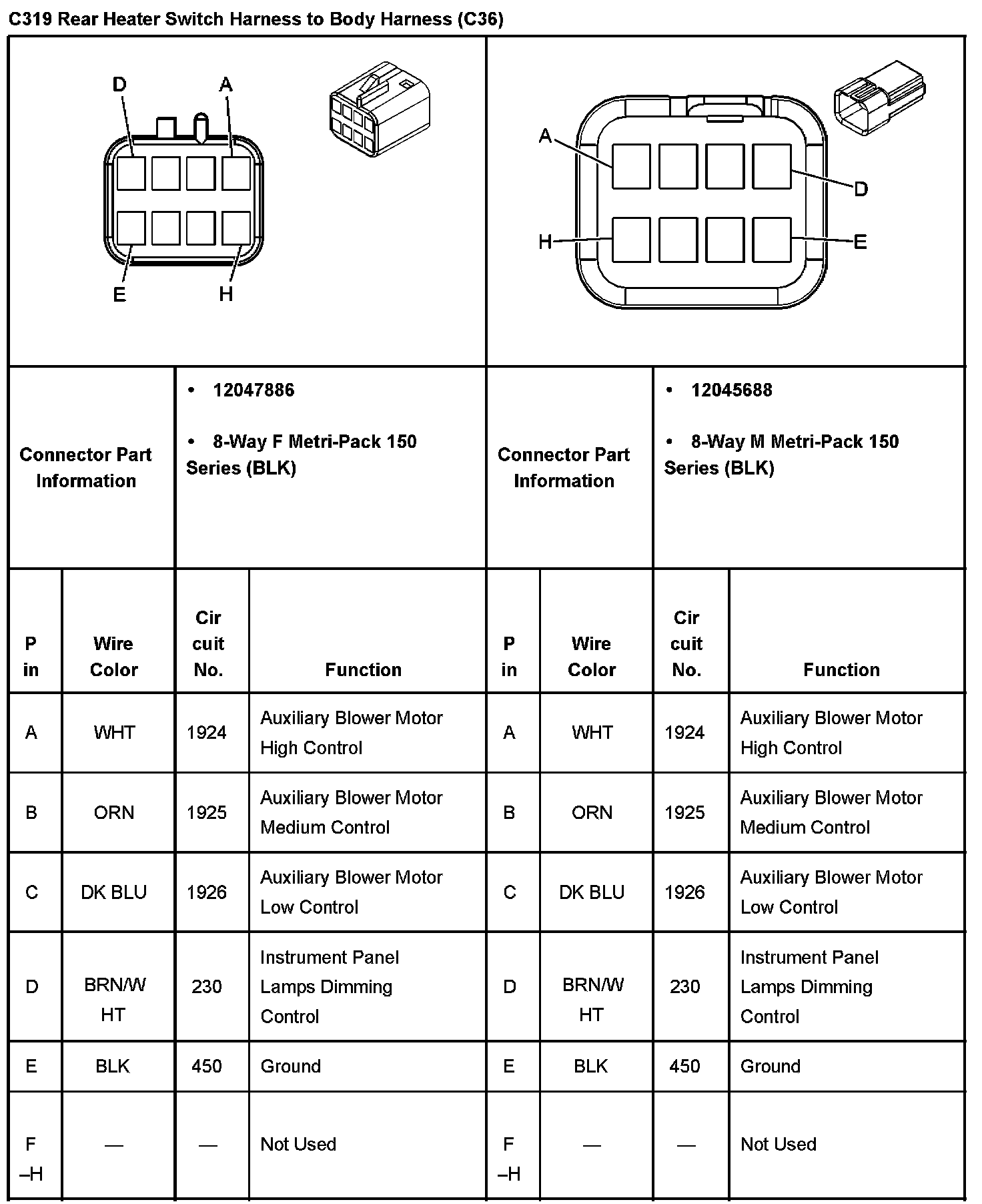

C319 Rear Heater Switch Harness To Body Harness (With RPO Code C36):
