C312 Front Passenger Door Harness to Body Harness

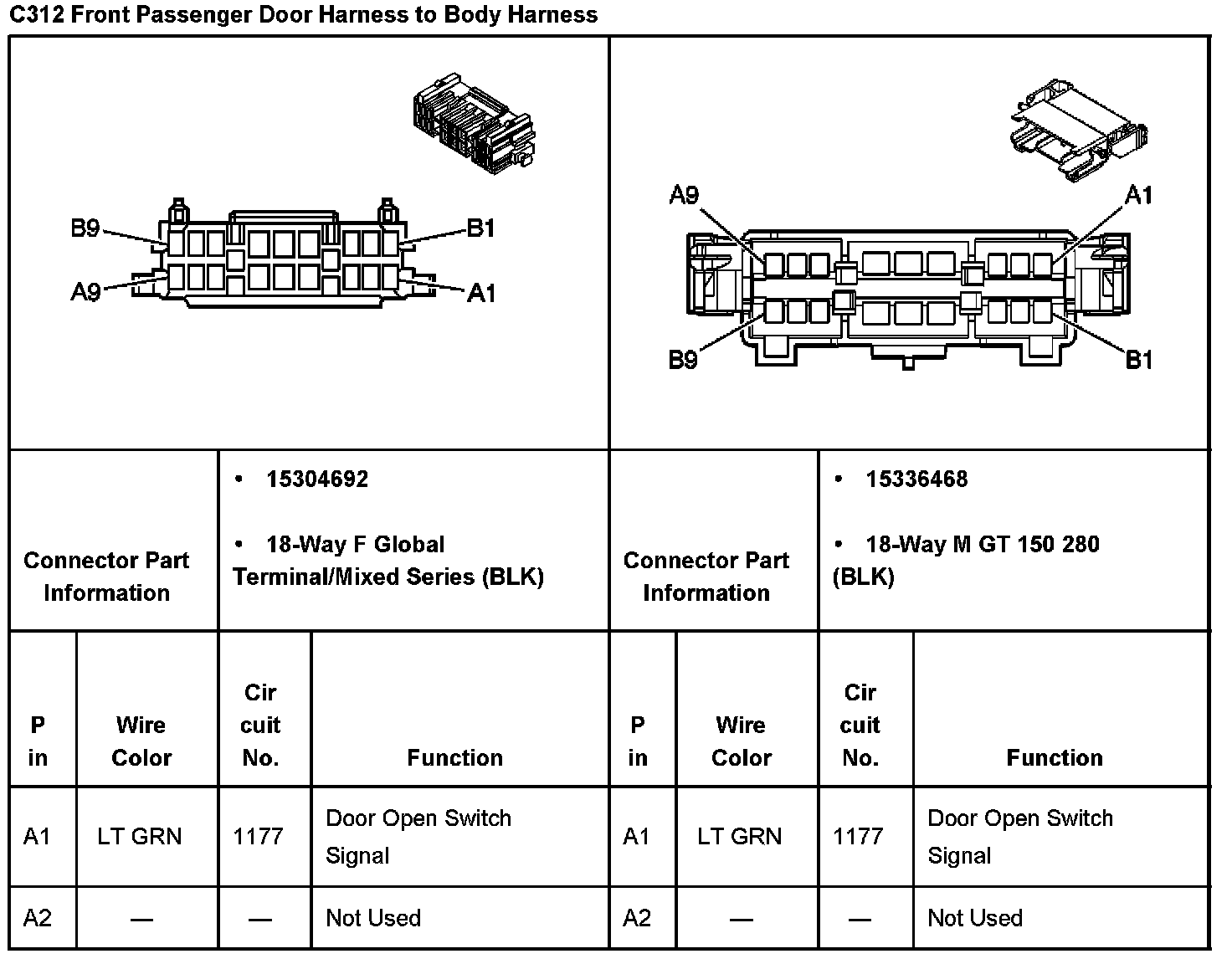

C312 Front Passenger Door Harness To Body Harness Part 1:

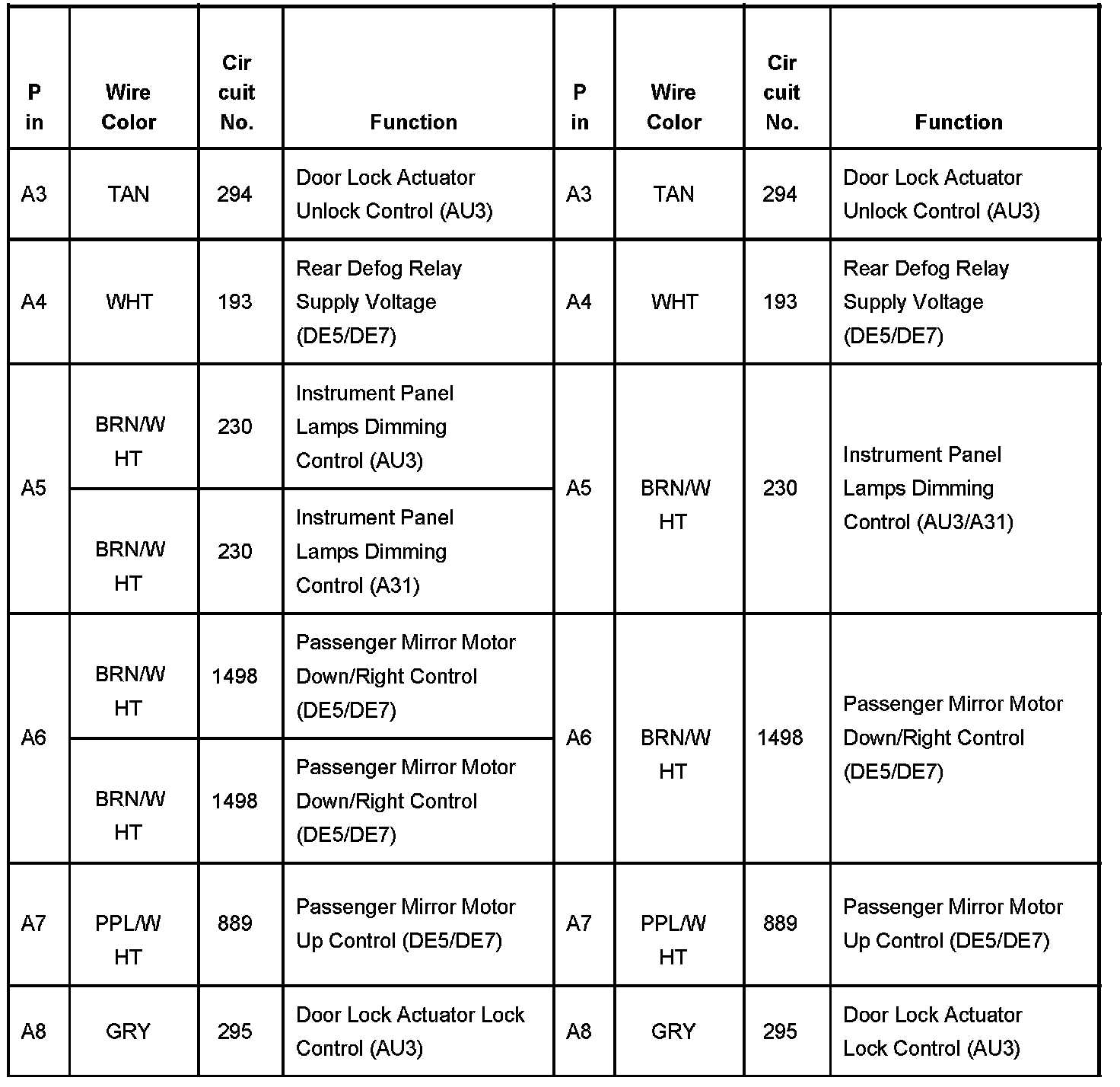

C312 Front Passenger Door Harness To Body Harness Part 2:

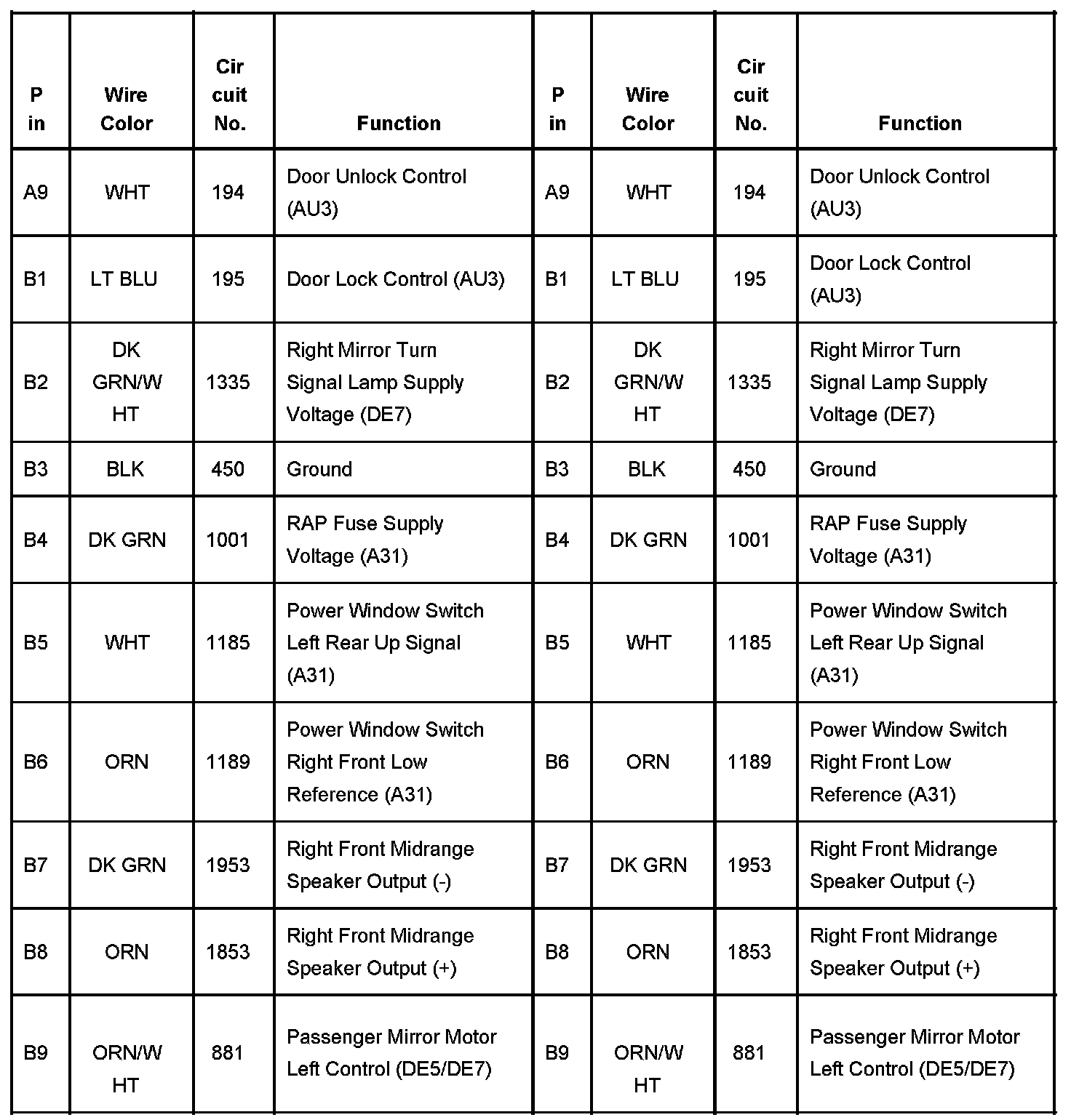

C312 Front Passenger Door Harness To Body Harness Part 3:
