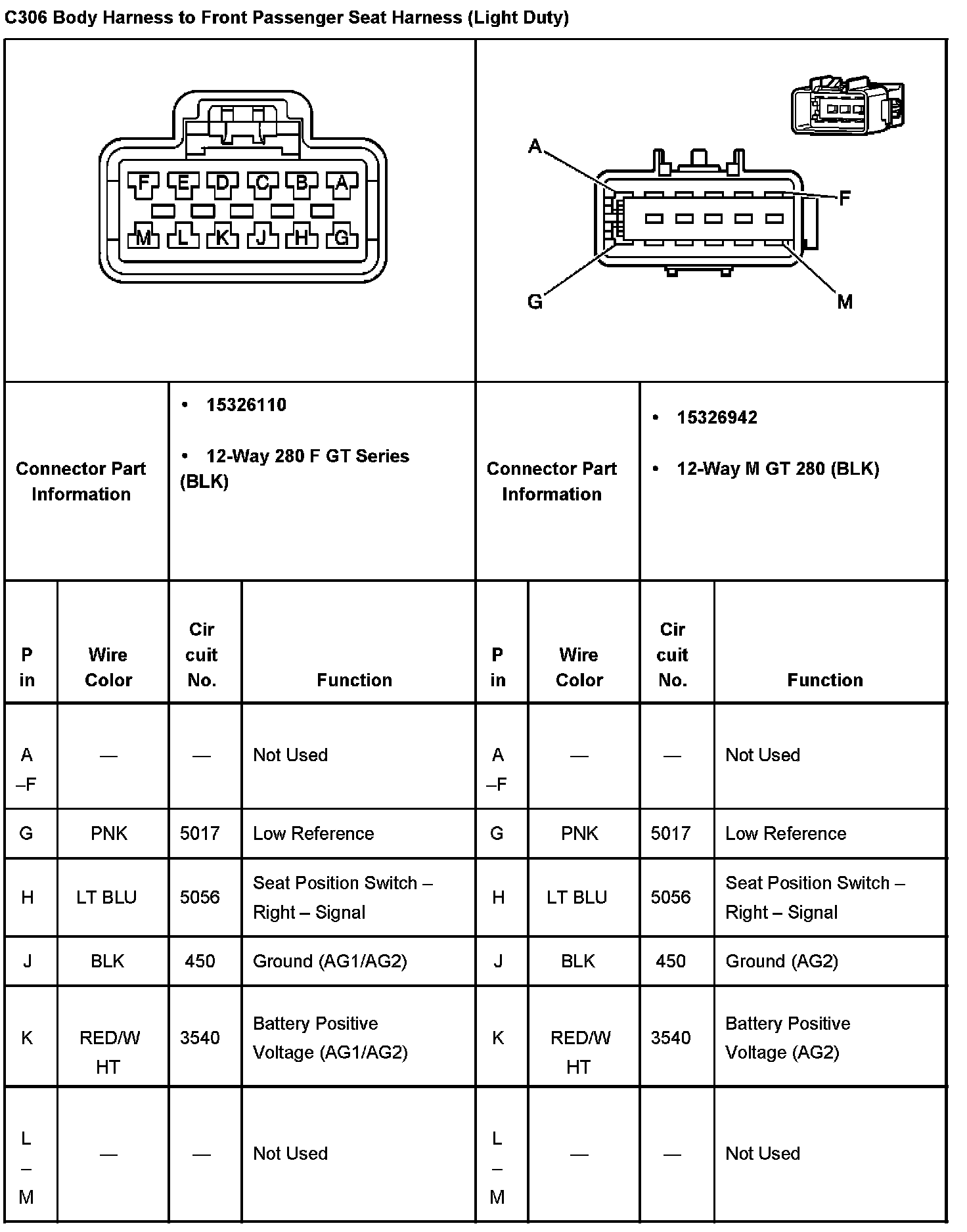

C306 Body Harness to Front Passenger Seat Harness (Light Duty)
C306 Body Harness to Front Passenger Seat Harness (Light Duty)
C306 Body Harness To Front Passenger Seat Harness (Light Duty):
