C225 I/P Harness to Mirror Harness
C225 I/P Harness to Mirror Harness

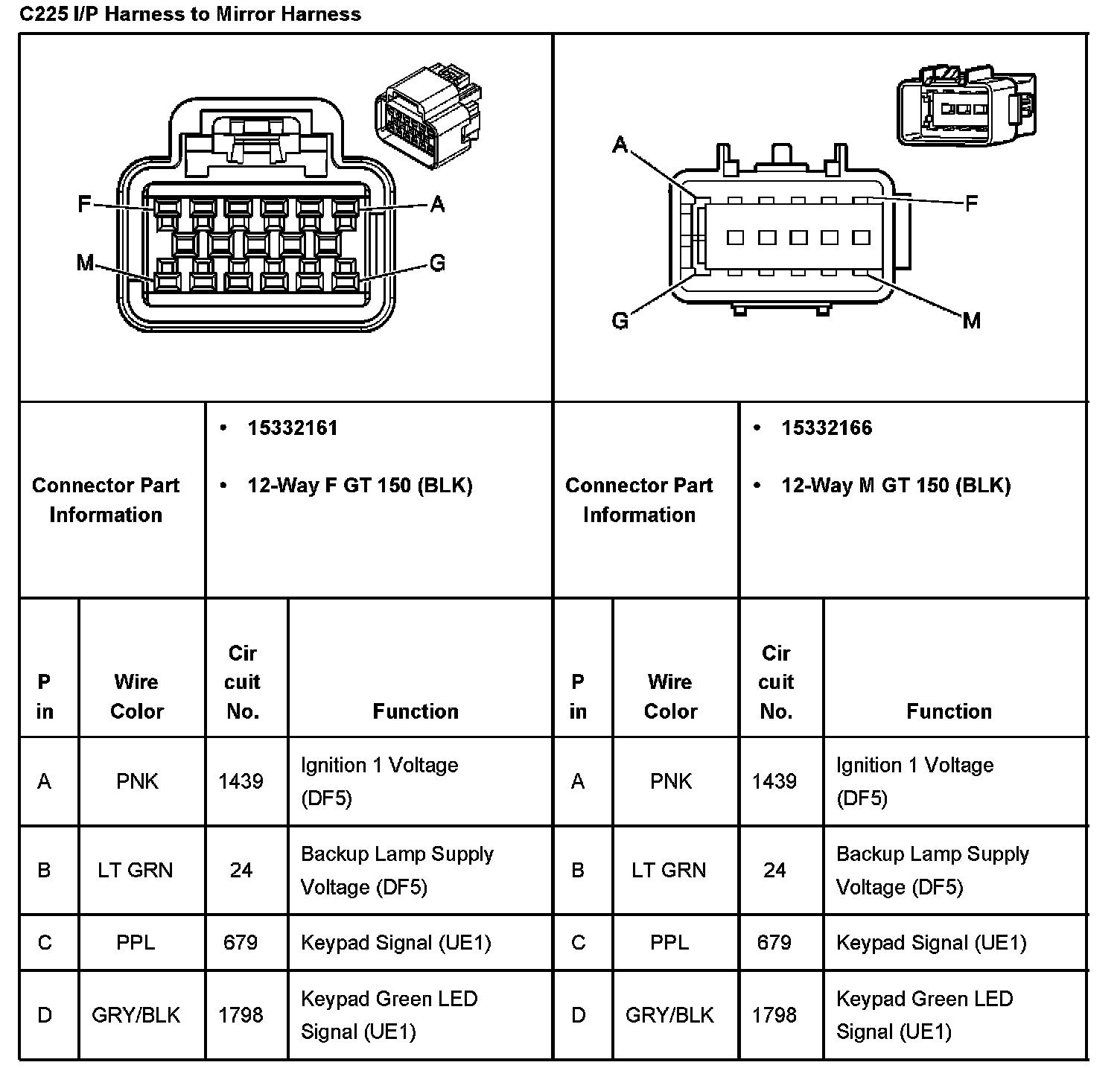

C225 I/P Harness To Mirror Harness Part 1:

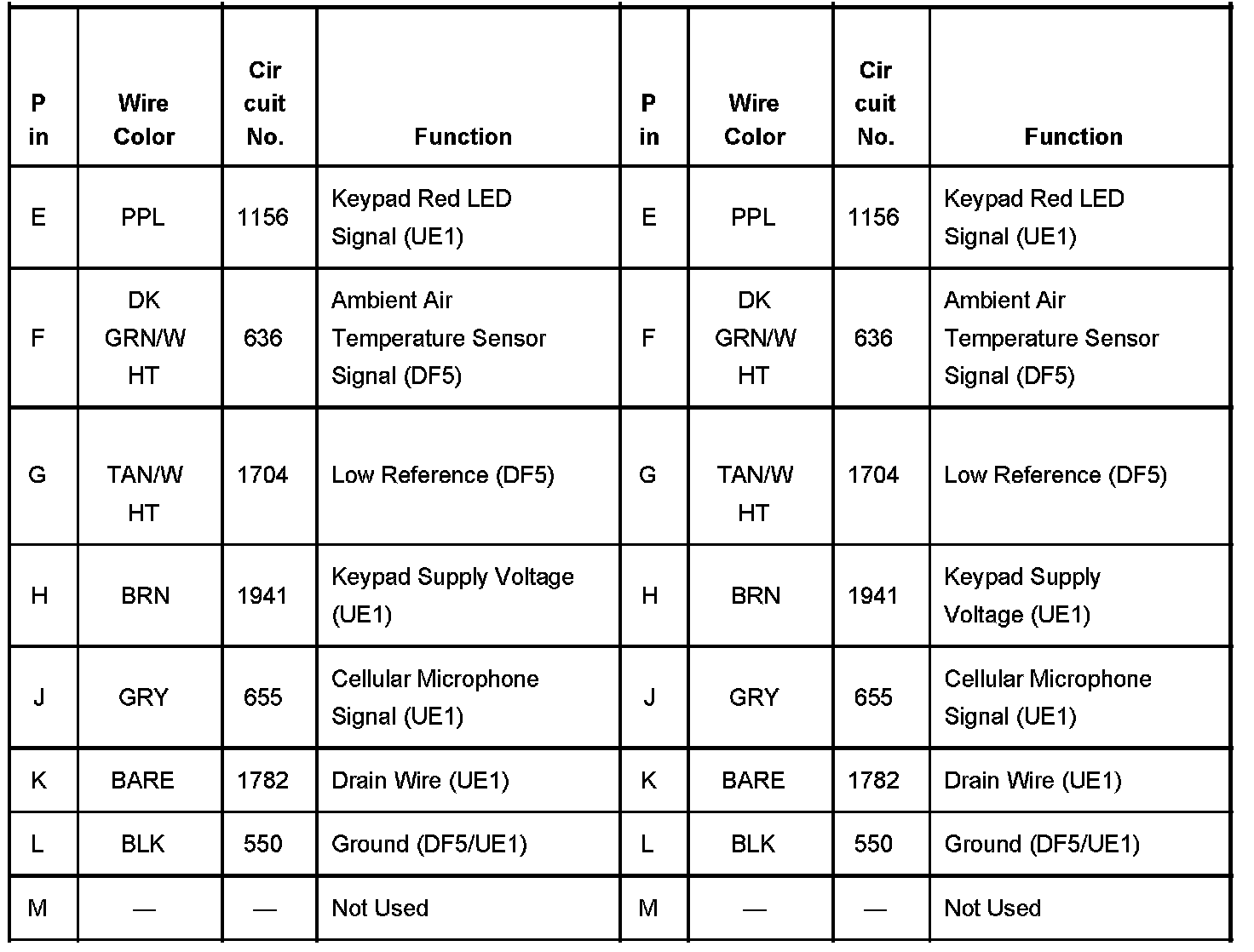

C225 I/P Harness To Mirror Harness Part 2:
