C222 Upfitter Harness to I/P Harness (With RPO Code YF7)
C222 Upfitter Harness to I/P Harness (With RPO Code YF7)

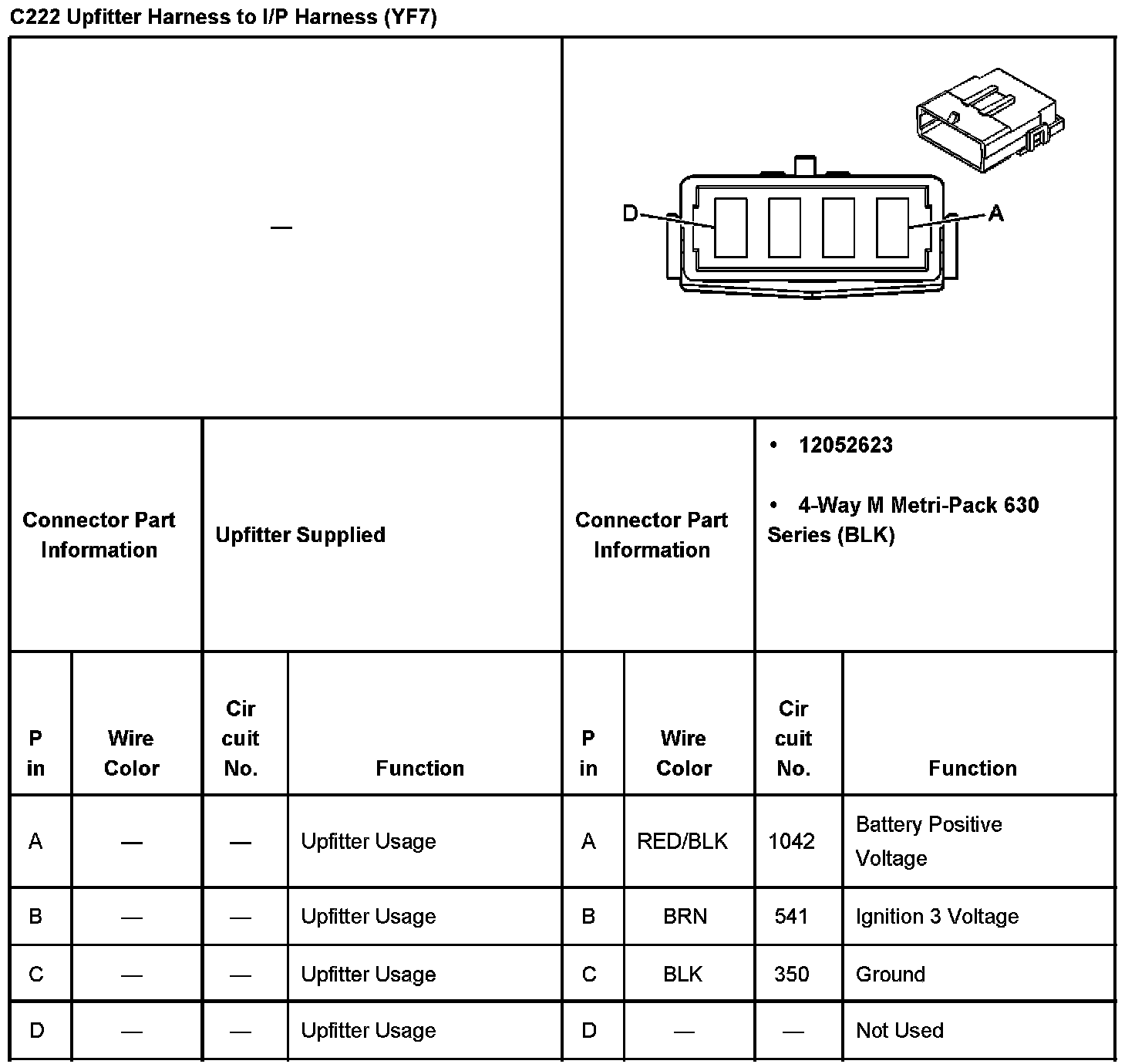

C222 Upfitter Harness To I/P Harness (With RPO Code YF7):
