C204 Pro Harness to Pro Jumper Harness (Prp)
C204 Pro Harness to Pro Jumper Harness (Prp)

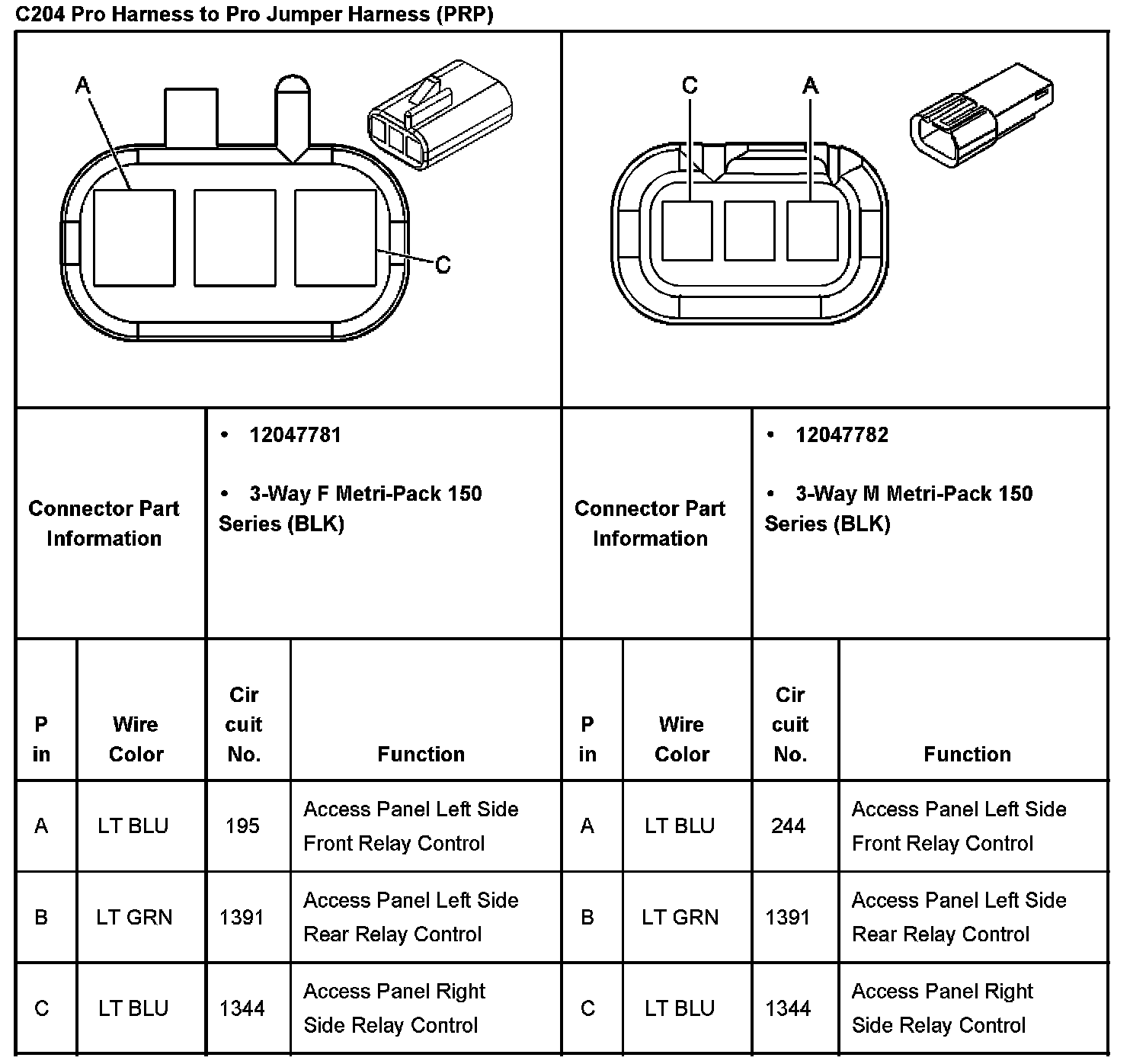

C204 Pro Harness To Pro Jumper Harness (PRP):
