C141 I/P to Brake Fluid Level (RPO Code UJ1 - Late Production)
C141 I/P to Brake Fluid Level (RPO Code UJ1 - Late Production)

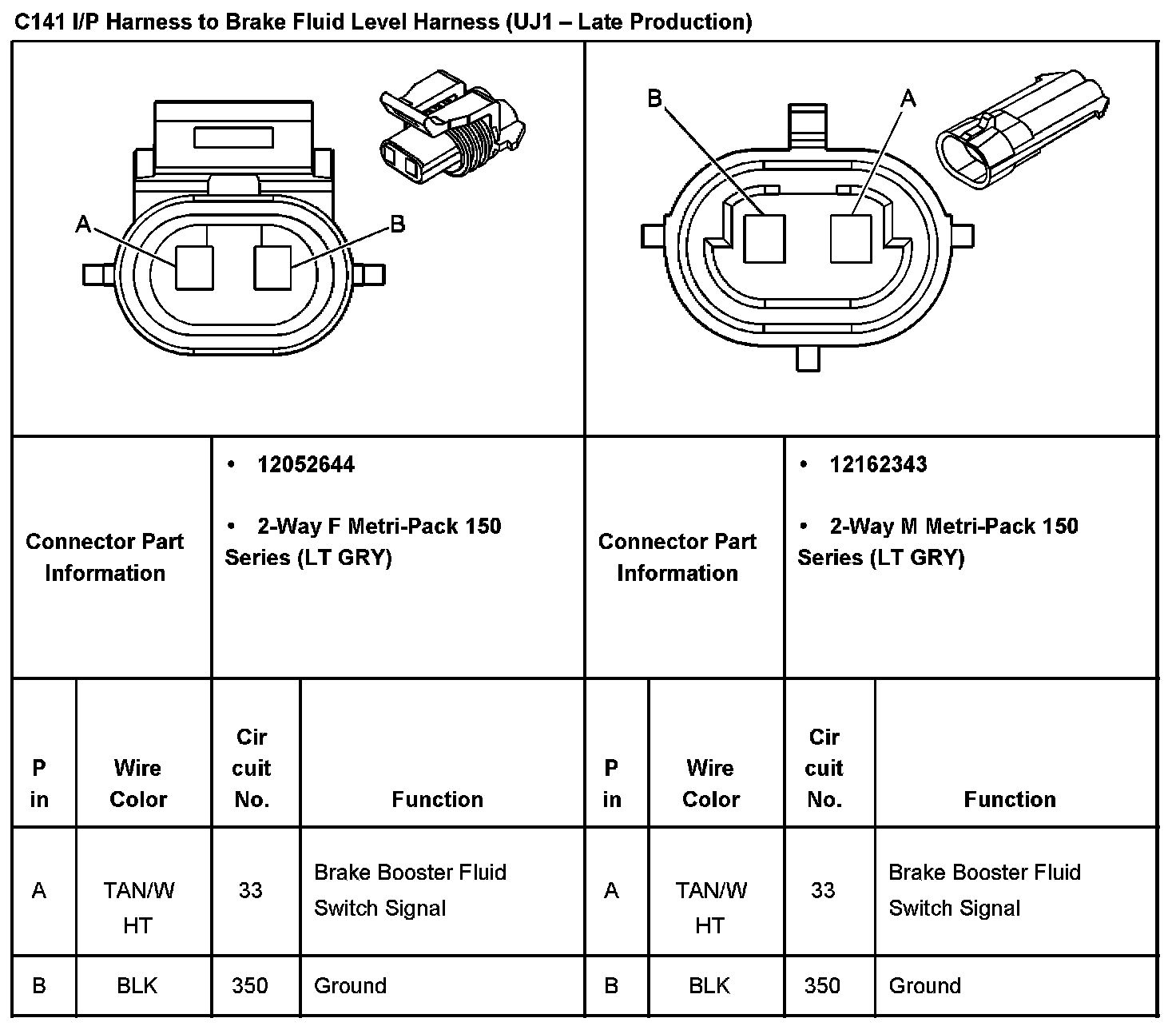

C141 I/P Harness To Brake Fluid Level Harness (with RPO Code UJ1 - Late Production):
