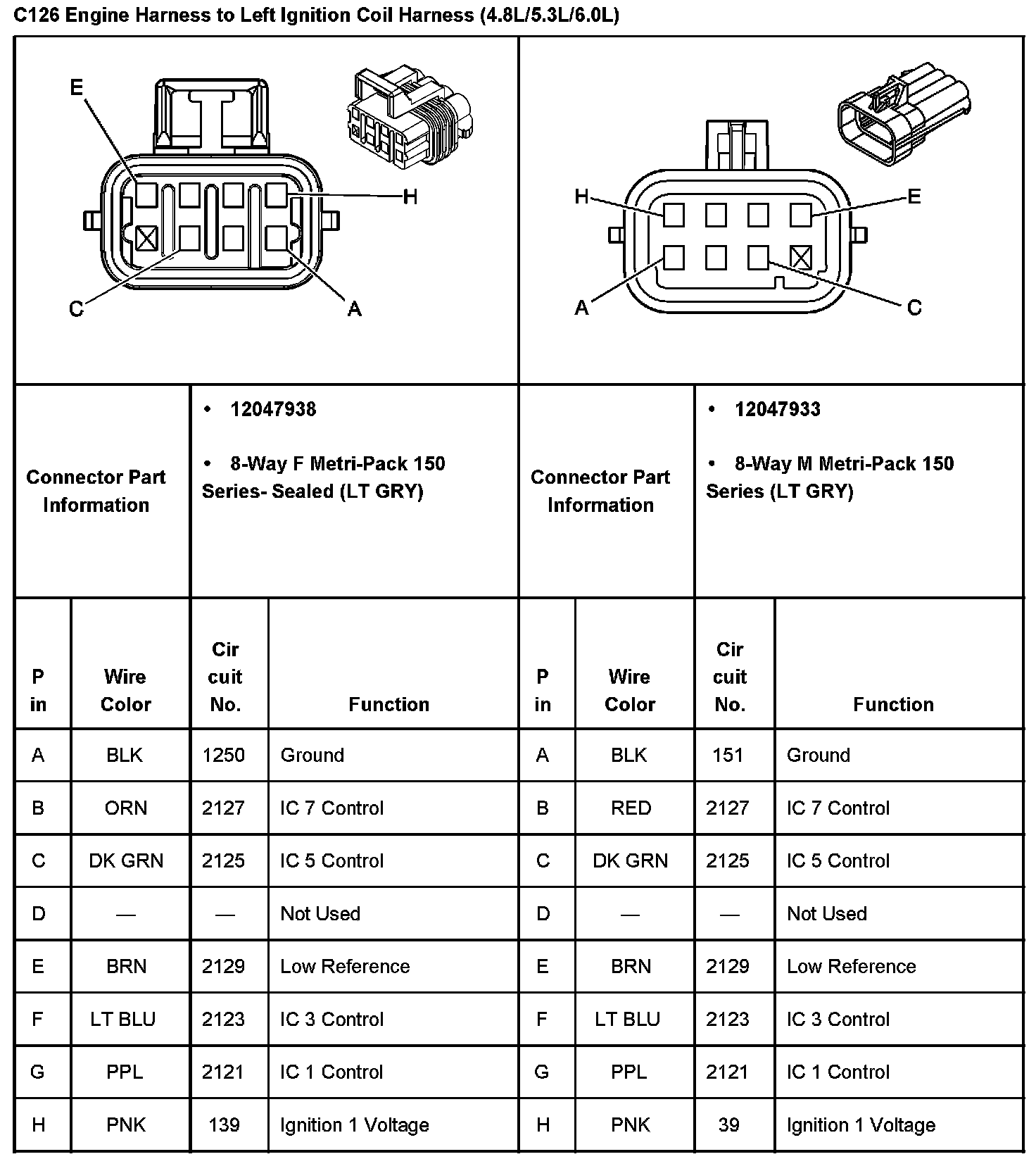

C126 Engine Harness to Left Ignition Coil Harness

C126 Engine Harness To Left Ignition Coil Harness:
