Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Fuse Block >> Fuse Block - Underhood - C4

Fuse Block - Underhood - C4

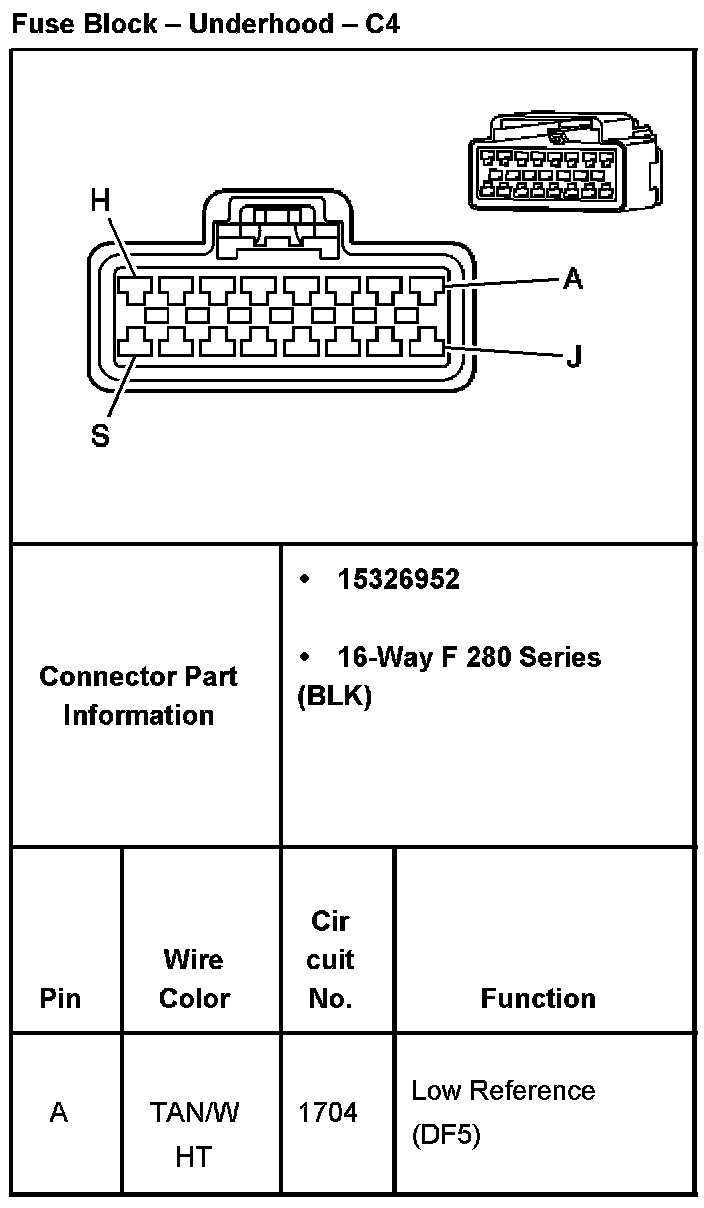

Fuse Block - Underhood - C4 Part 1:

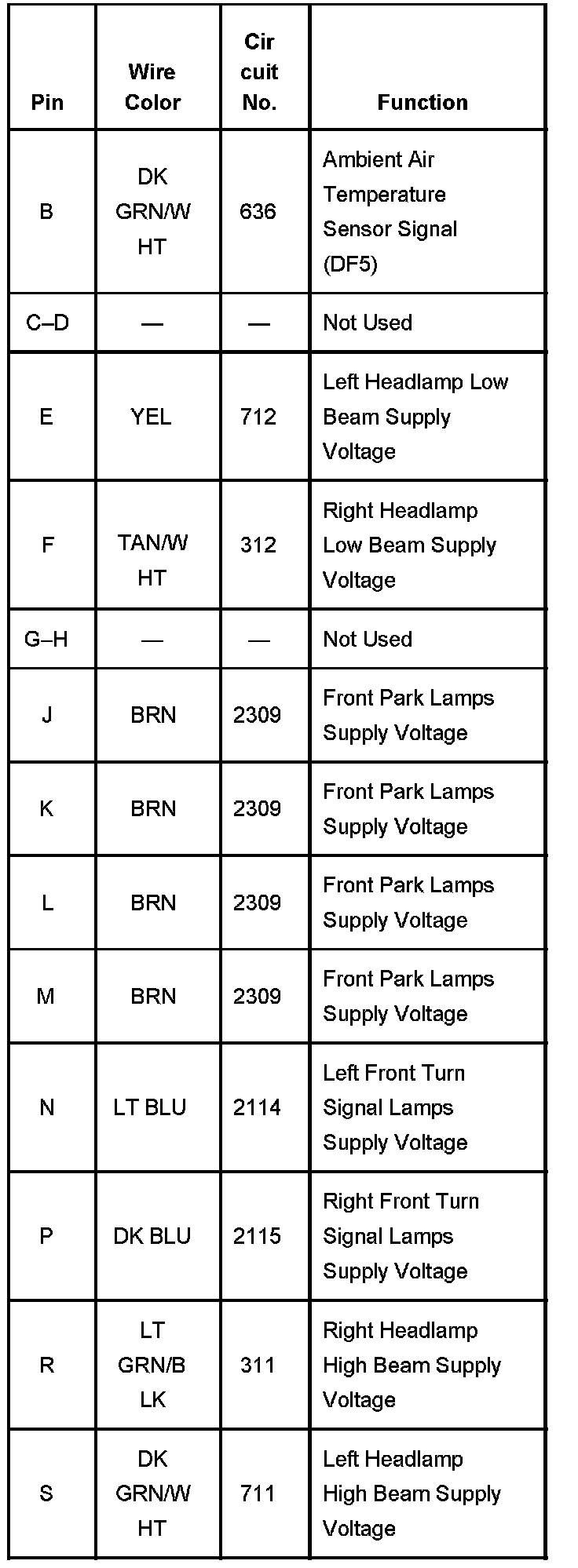

Fuse Block - Underhood - C4 Part 2:
