Fuse Block - Body - C1

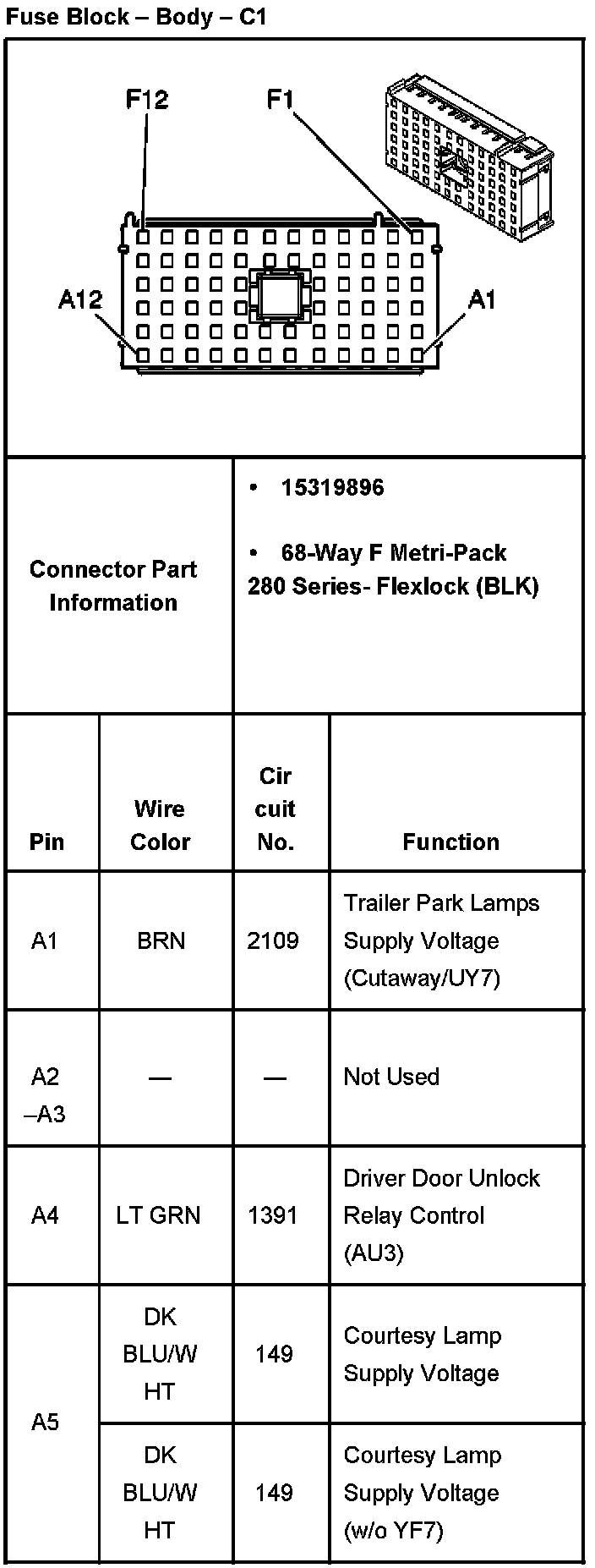

Fuse Block - Body - C1 Part 1:




Fuse Block - Body - C1 Part 2:

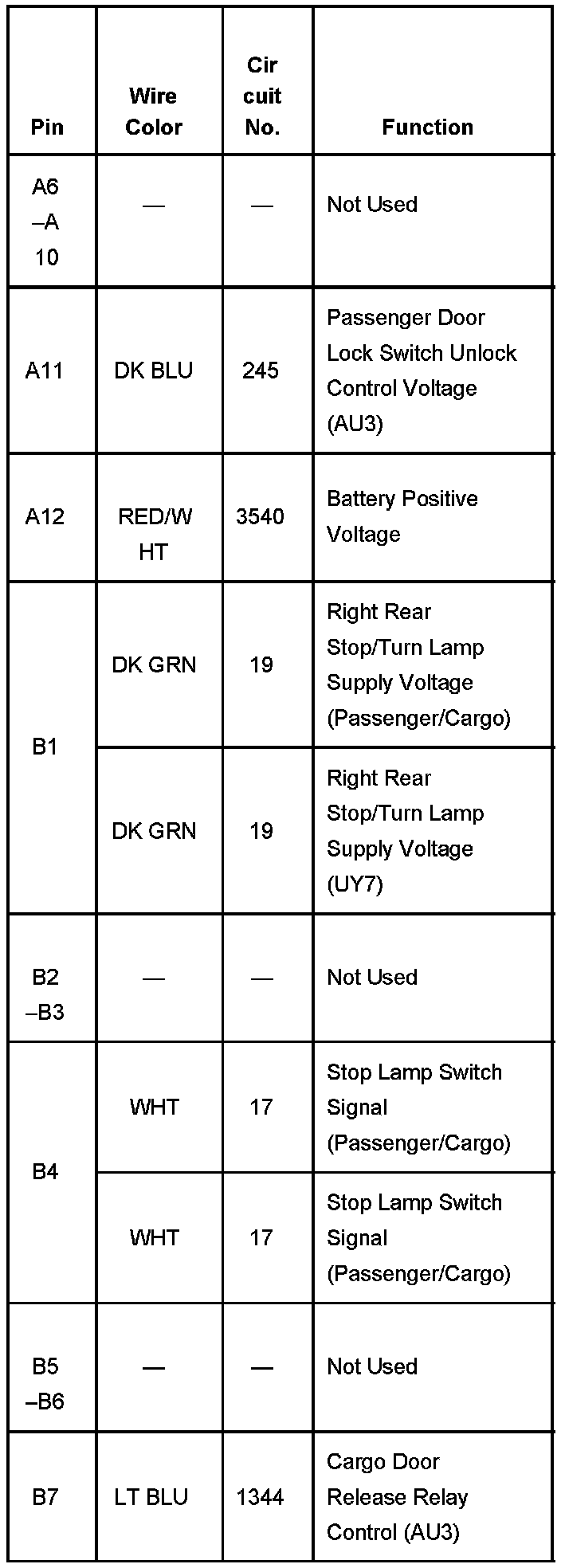

Fuse Block - Body - C1 Part 3:

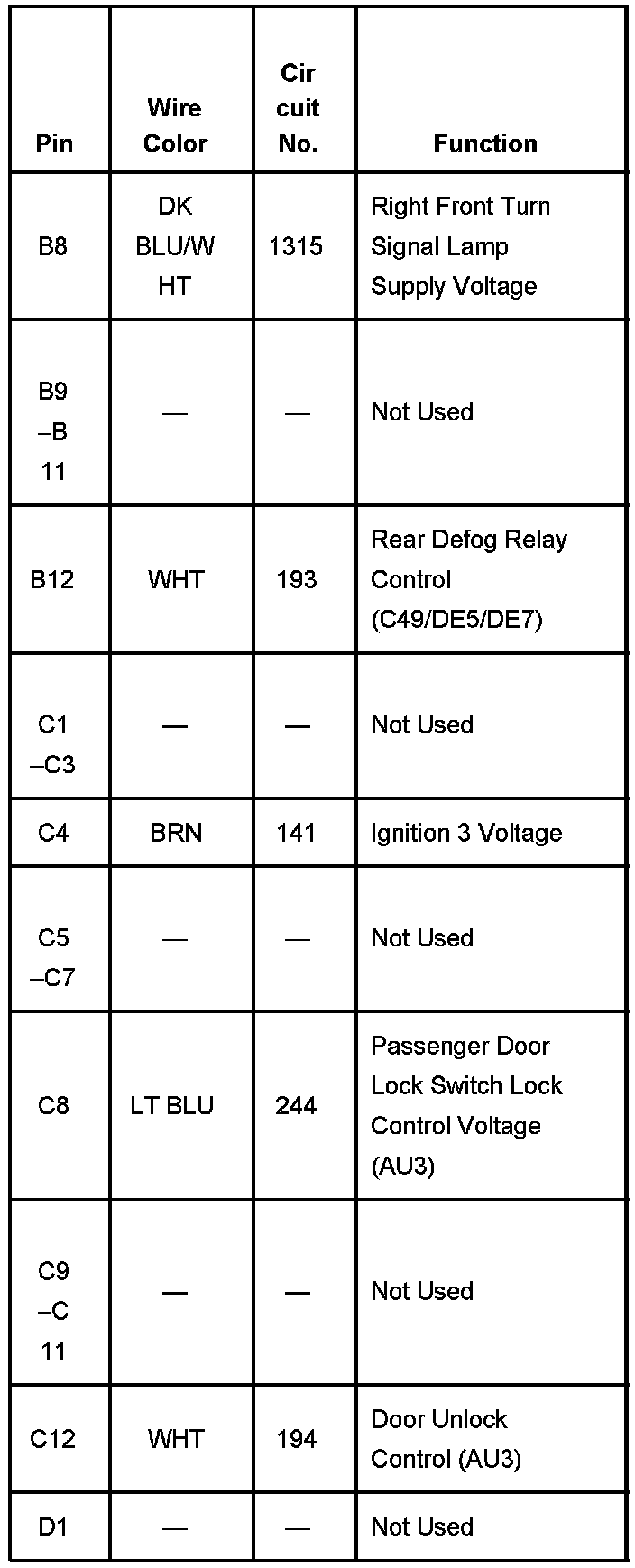

Fuse Block - Body - C1 Part 4:

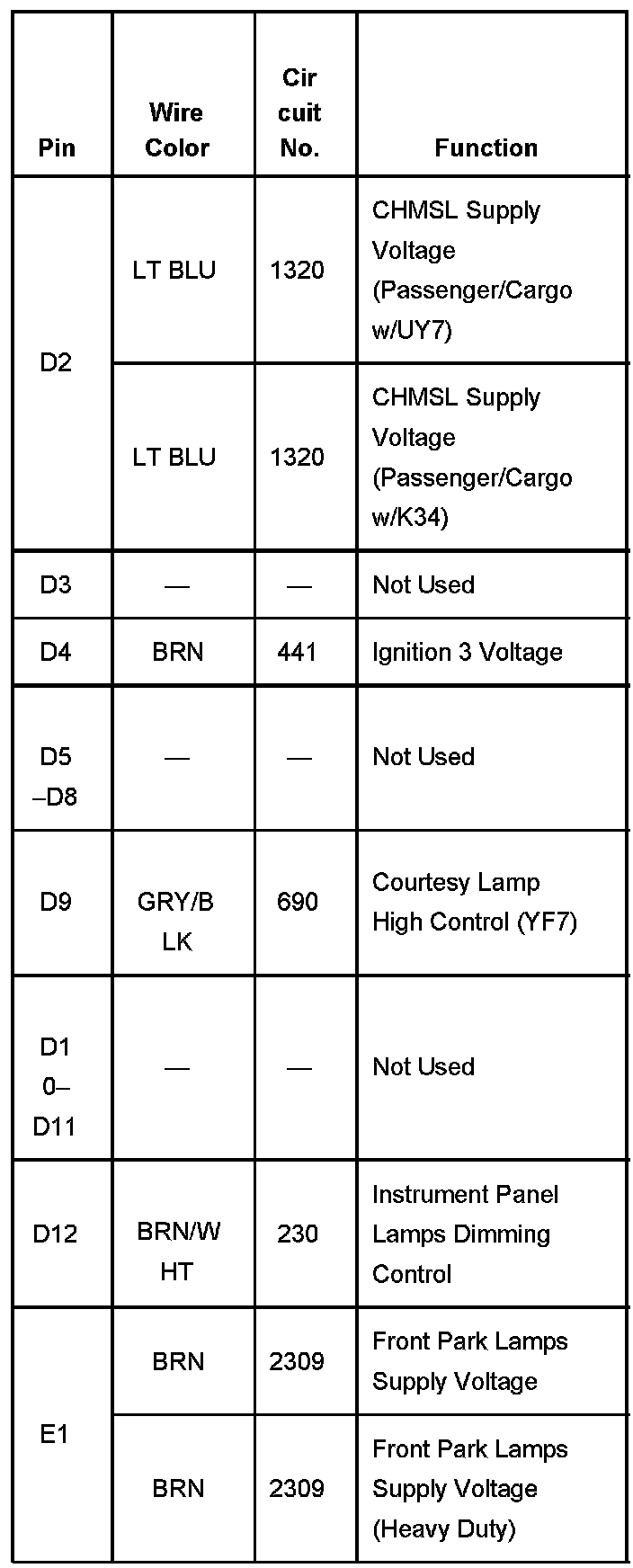

Fuse Block - Body - C1 Part 5:

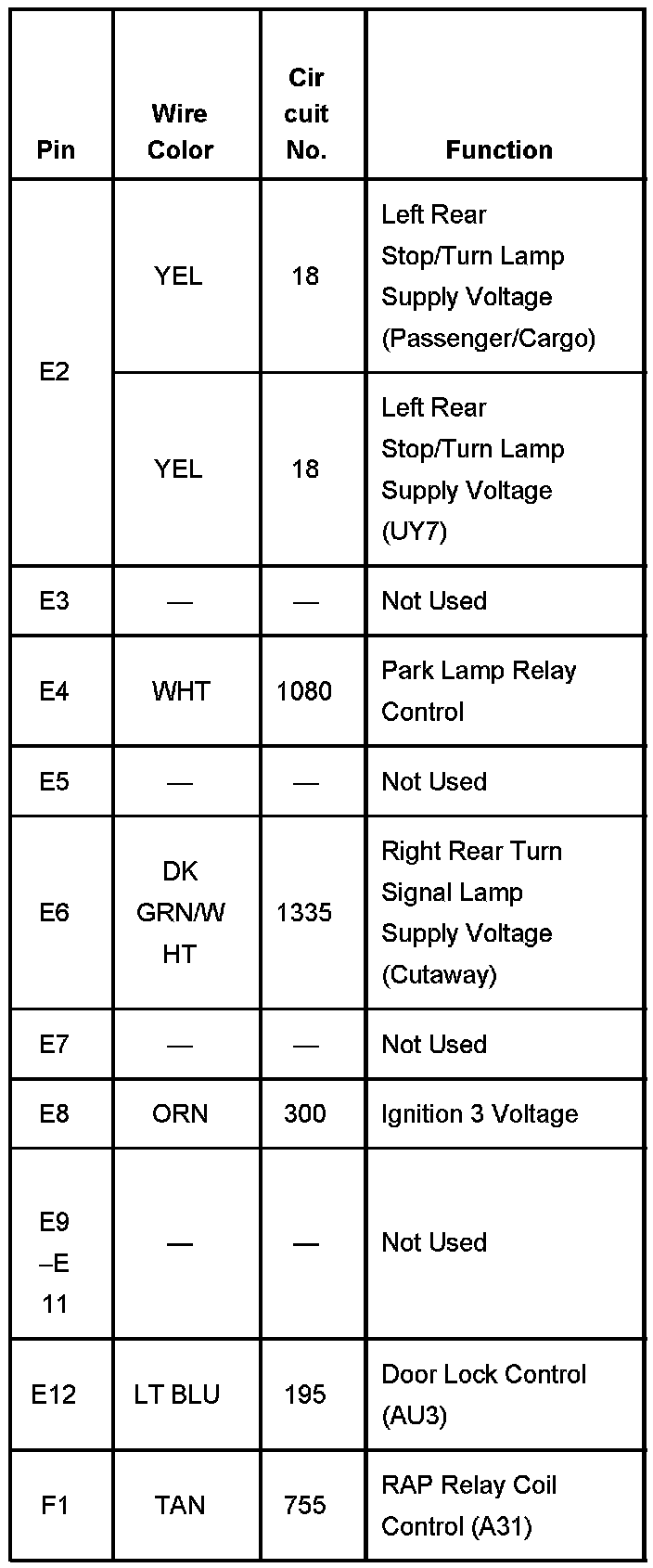

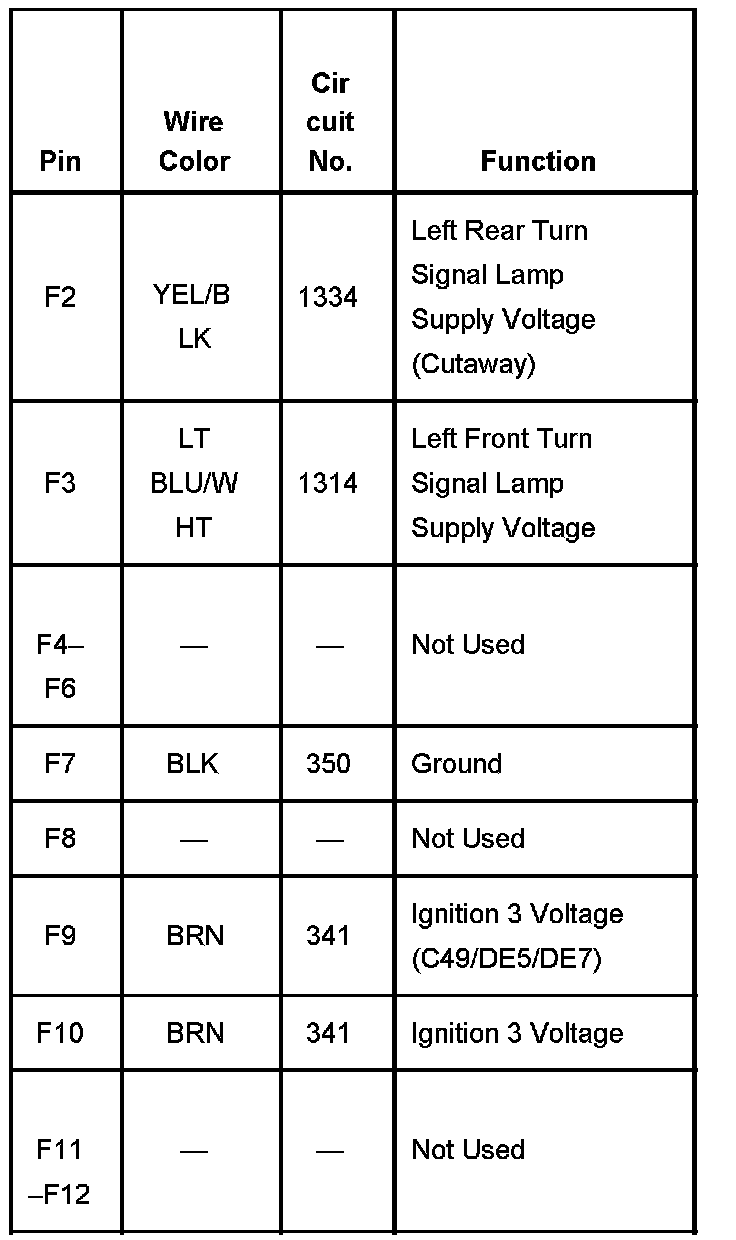

Fuse Block - Body - C1 Part 6:
