Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

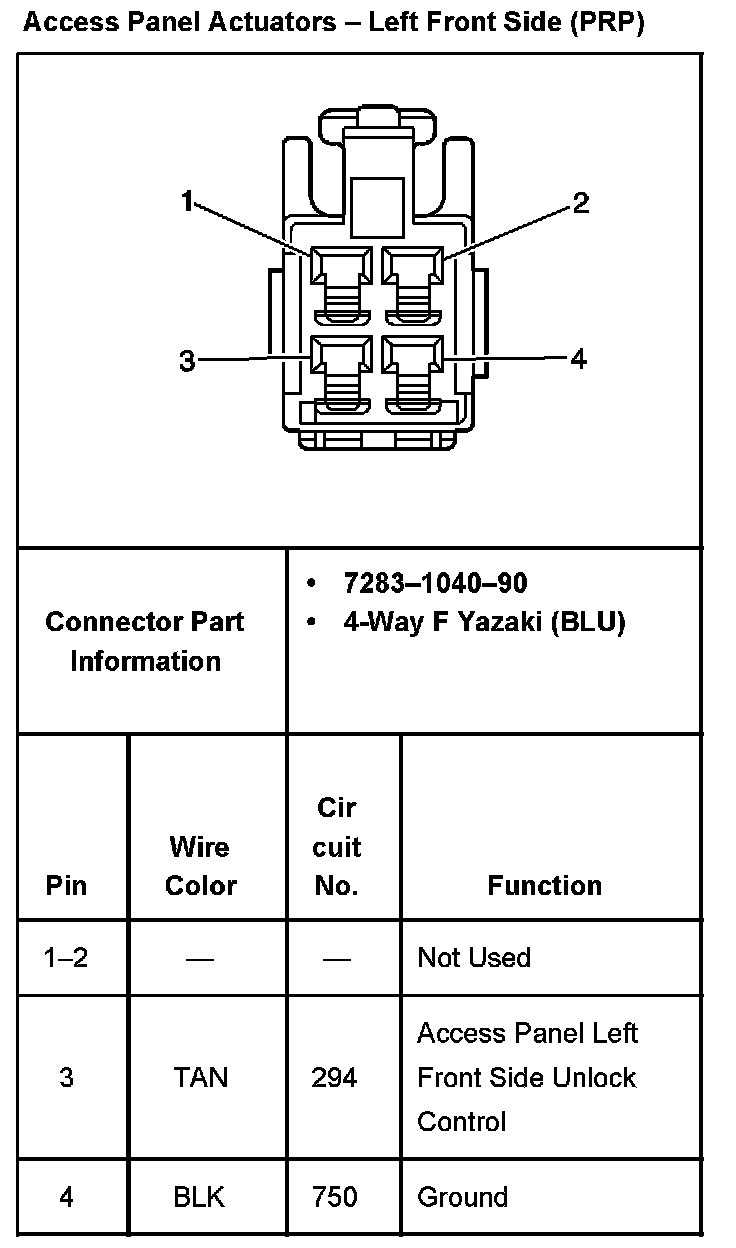

Access Panel Actuators - Left Front Side (PRP):

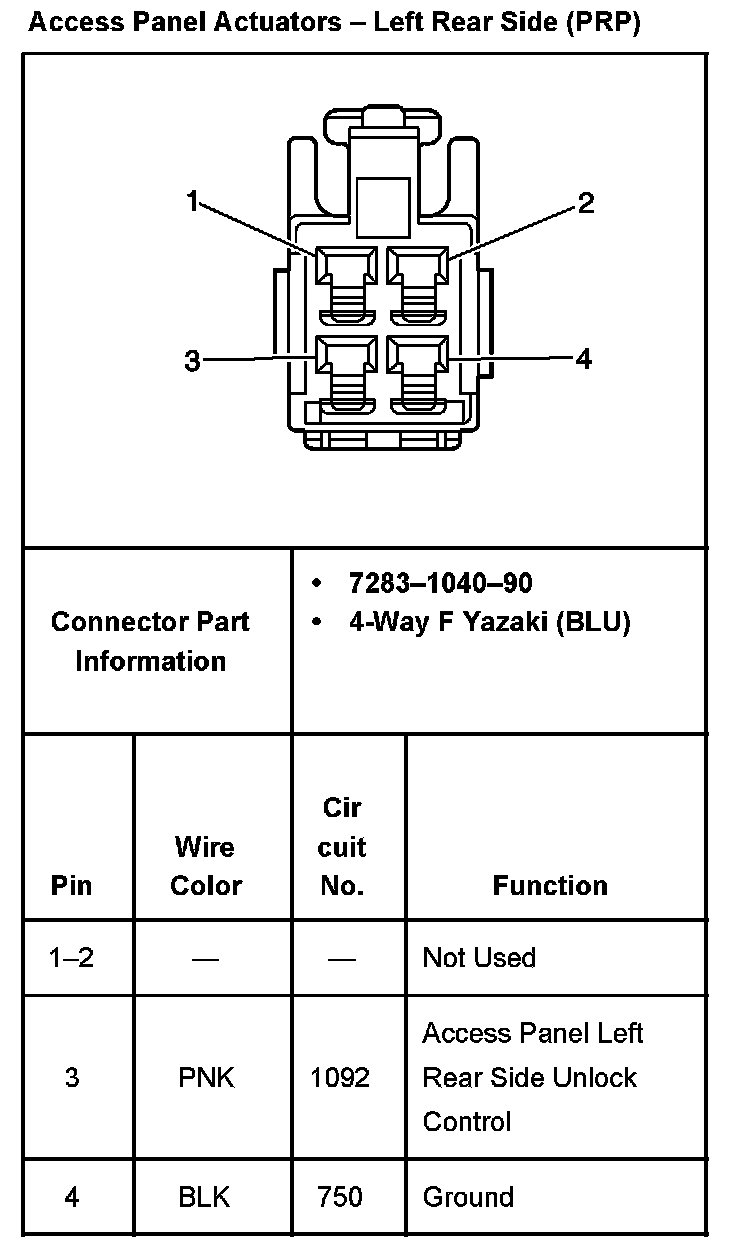

Access Panel Actuators - Left Rear Side (PRP):

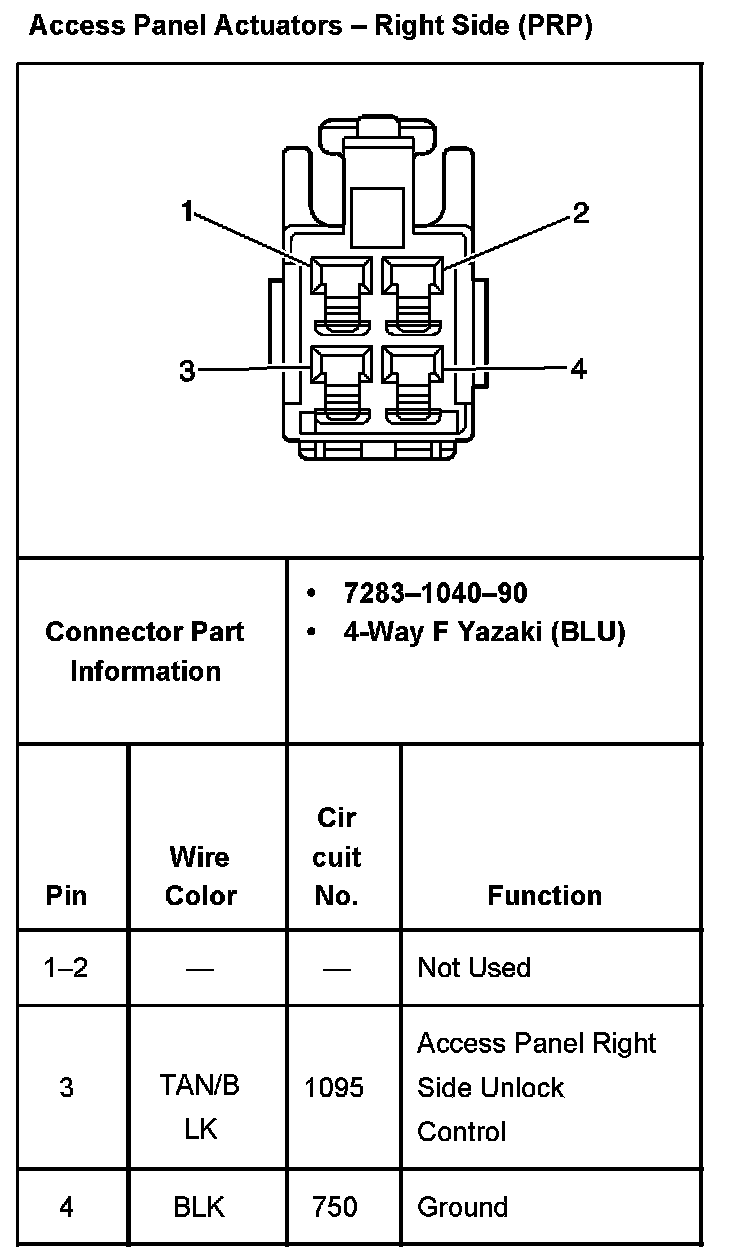

Access Panel Actuators - Right Side (PRP):
