Chevy Truck
>>
2003
>>
Express 1/2 Ton Van AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

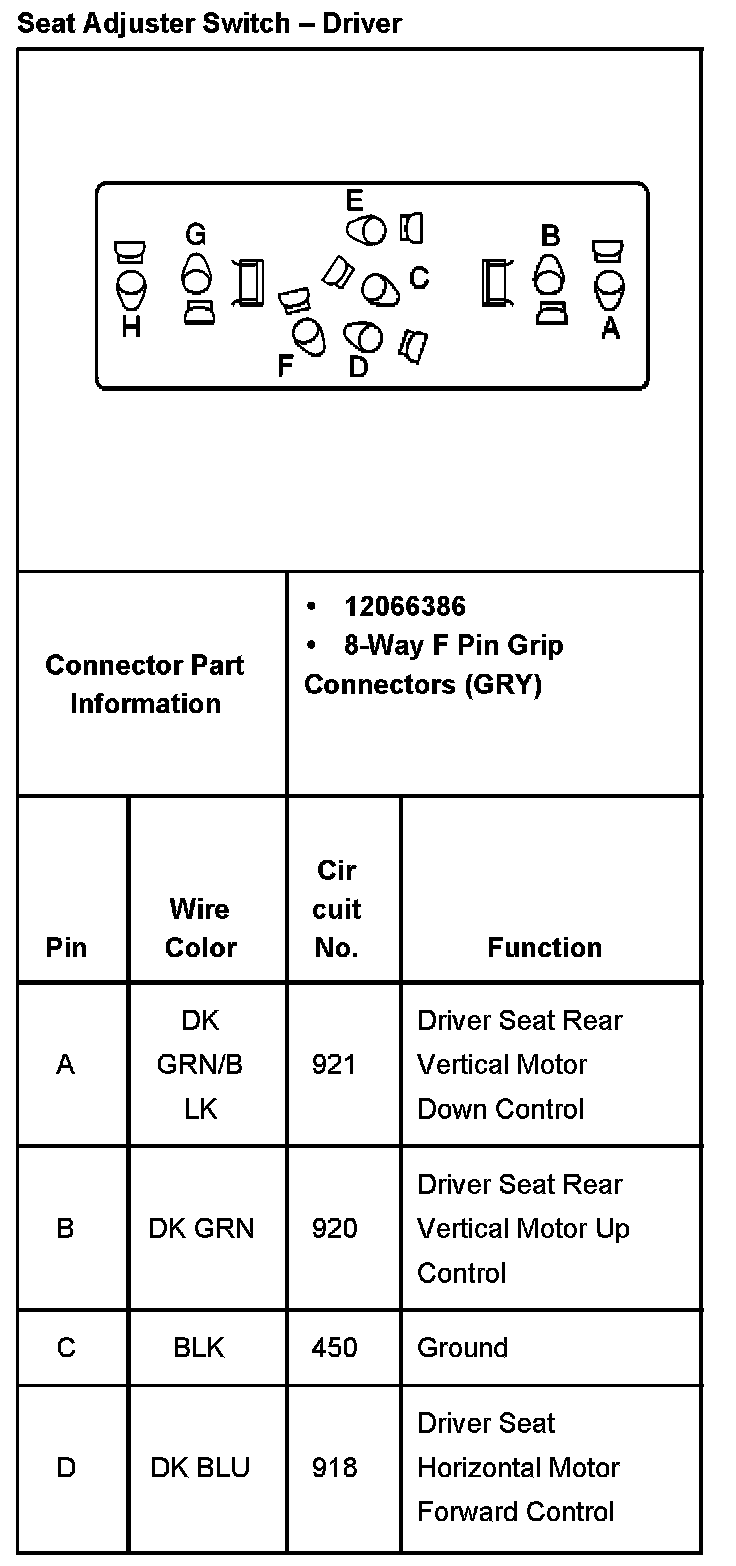

Seat Adjuster Switch-Driver Part 1:

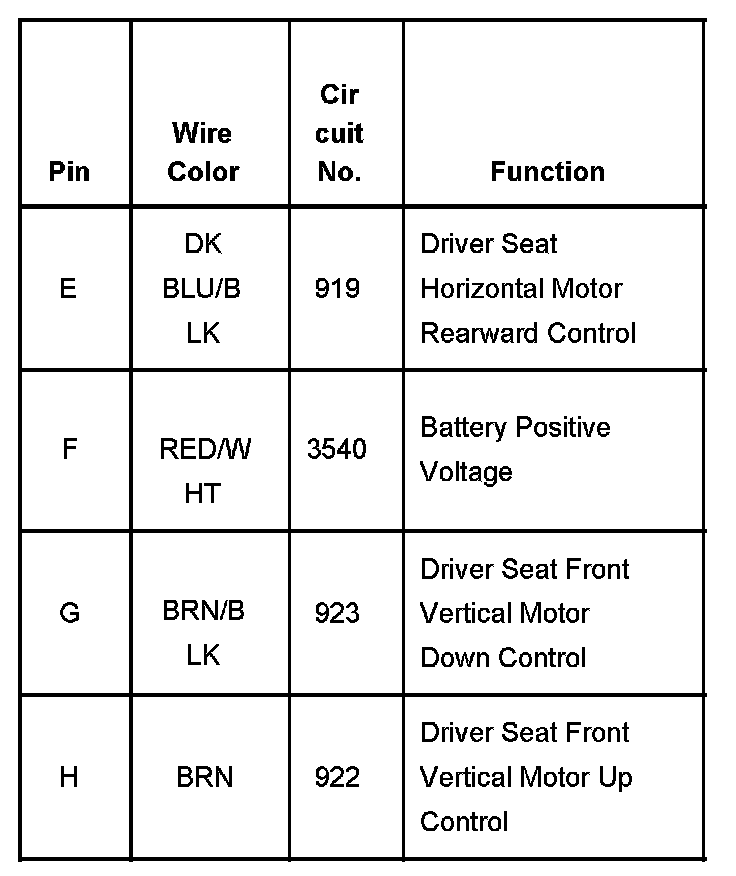

Seat Adjuster Switch-Driver Part 2:

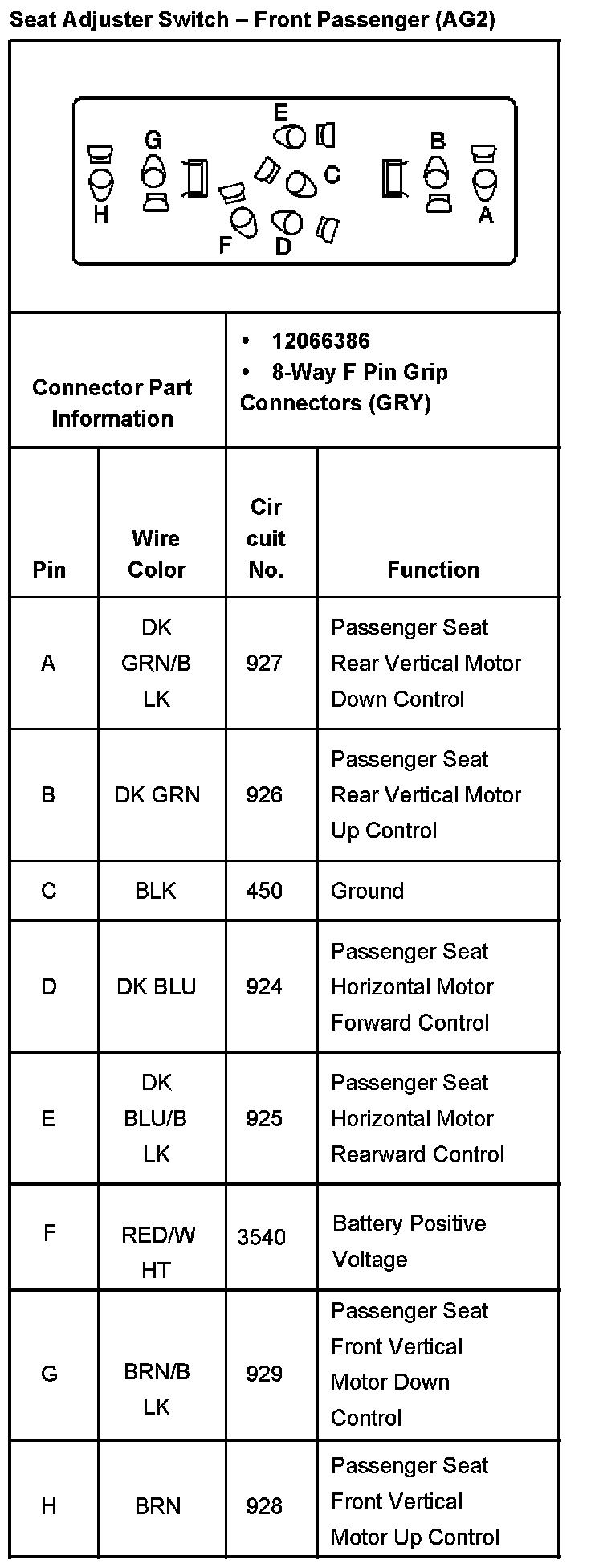

Seat Adjuster Switch-Front Passenger With RPO Code AG2:
