Map Light

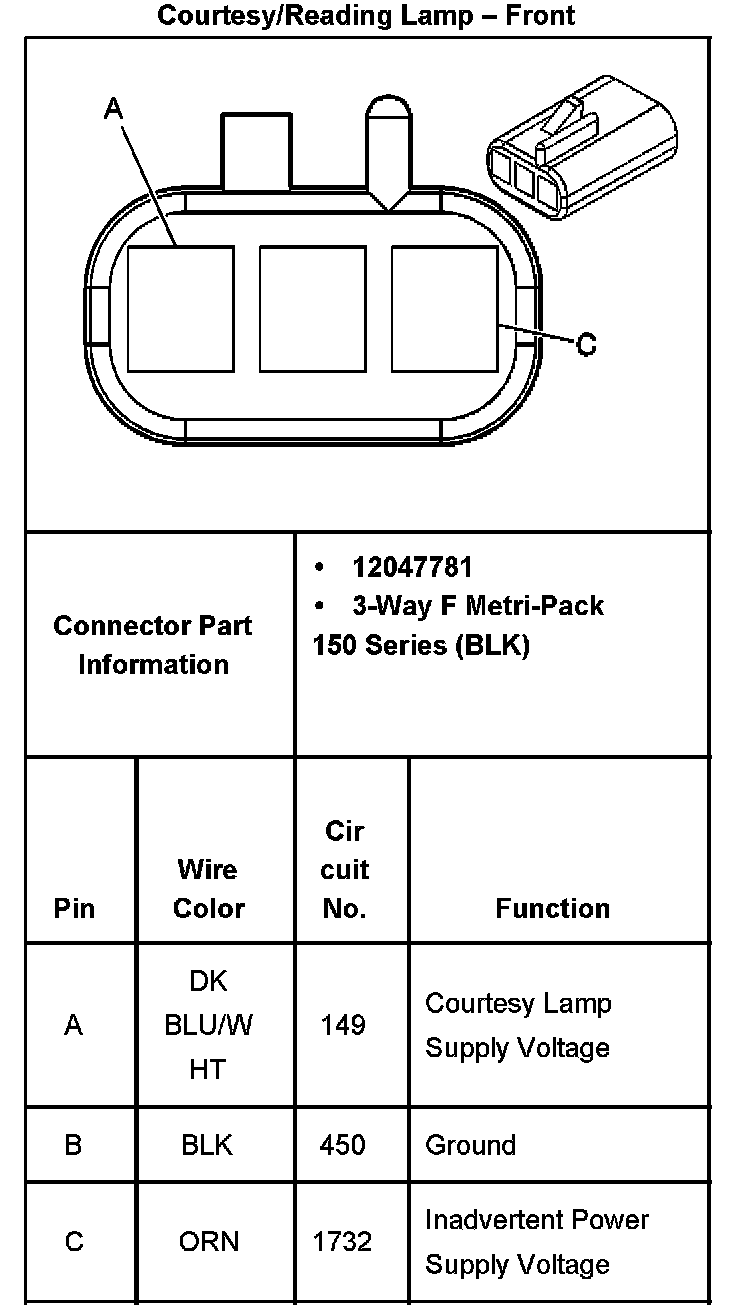

Courtesy/Reading Lamp - Front:

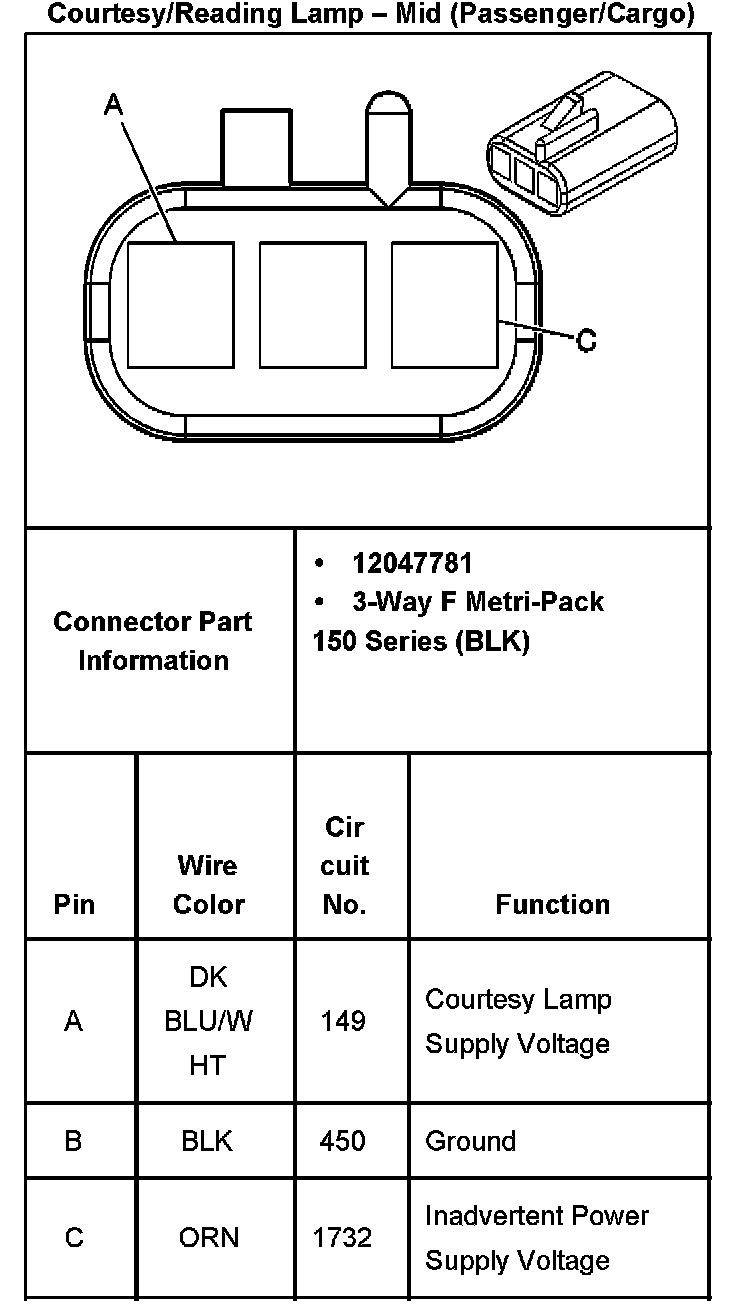

Courtesy/Reading Lamp - Mid (Passenger/Cargo):

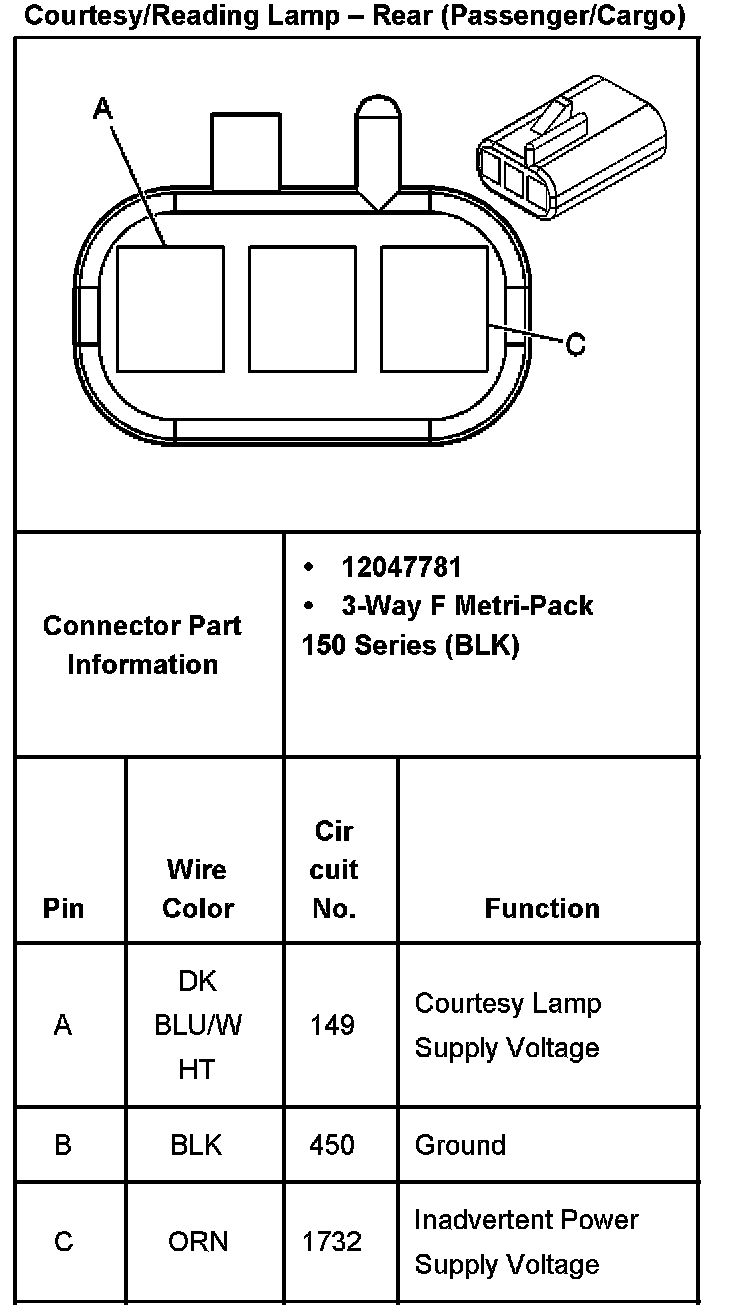

Courtesy/Reading Lamp - Rear (Passenger/Cargo):
