Instrument Cluster / Carrier
Instrument Cluster / Carrier

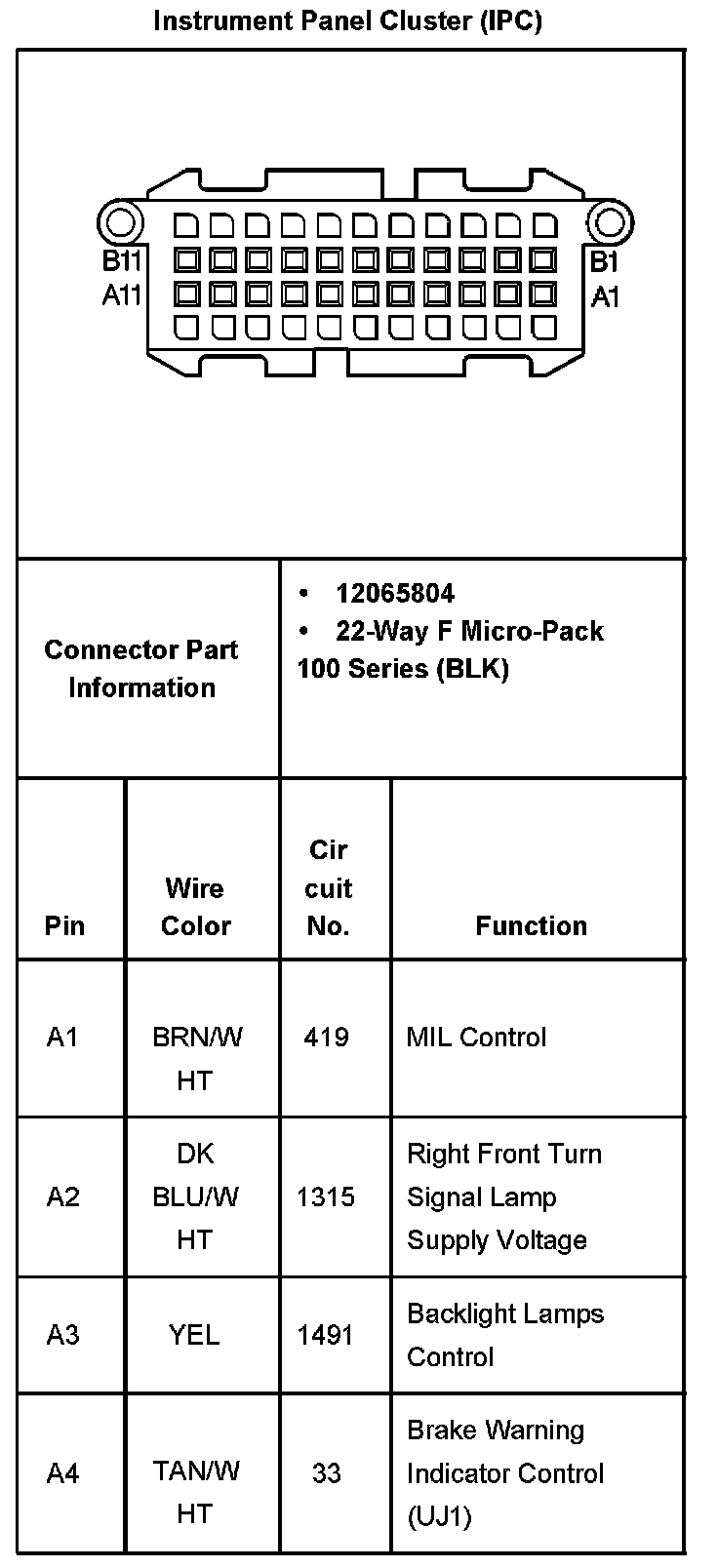

Instrument Panel Cluster (IPC) Part 1:

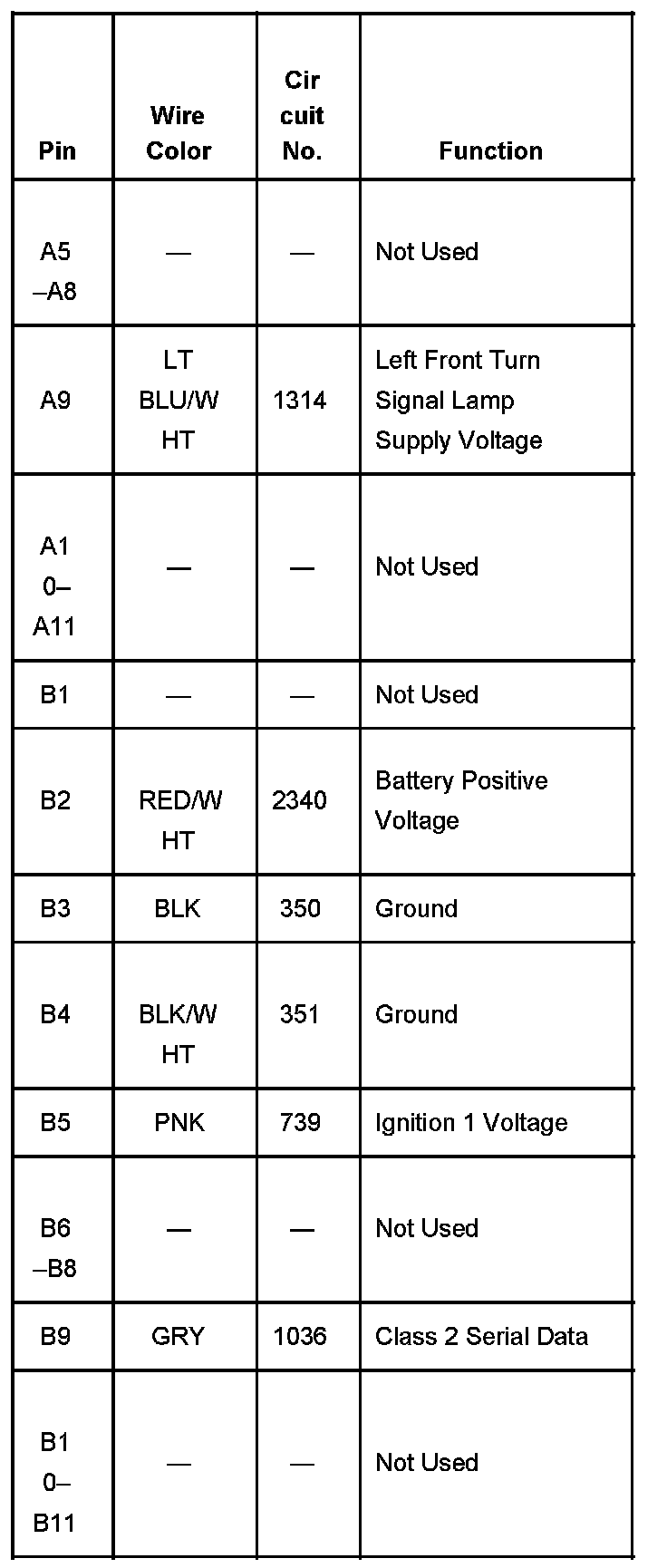

Instrument Panel Cluster (IPC) Part 2:
