Impact Sensor

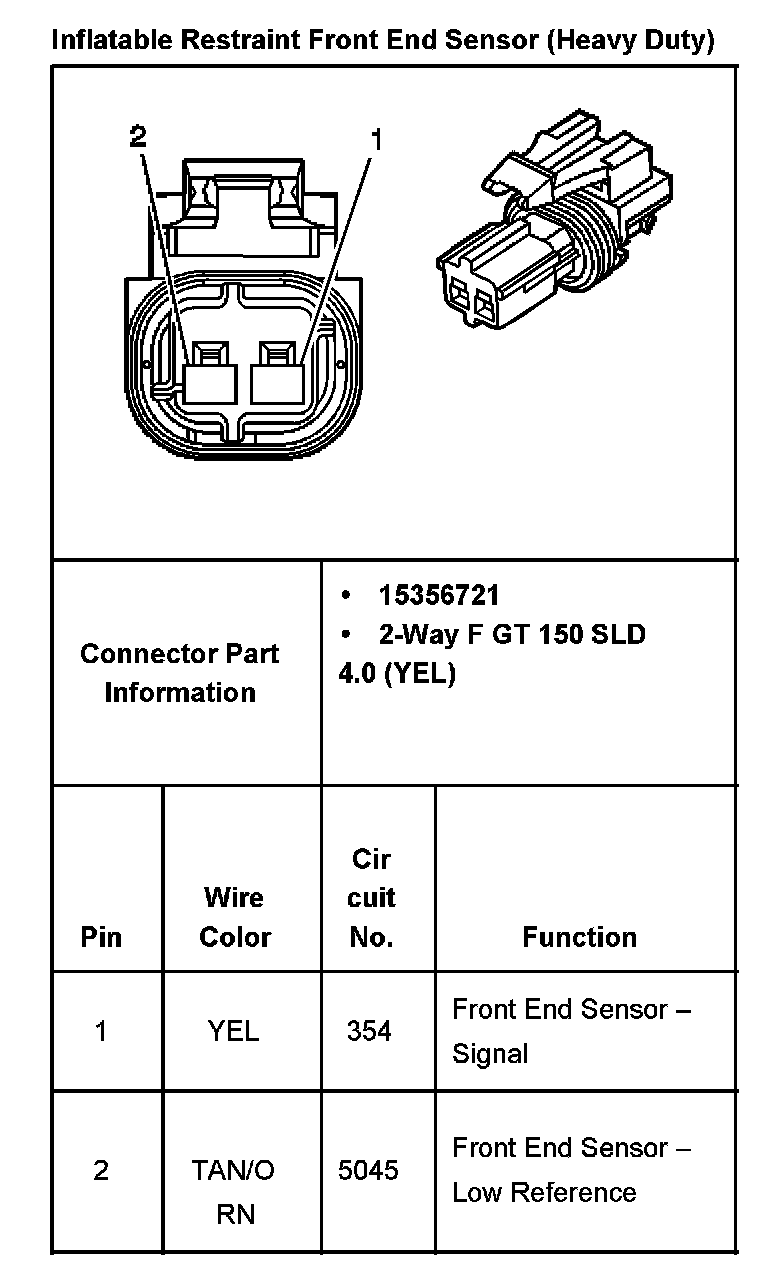

Inflatable Restraint Front End Sensor (Heavy Duty):

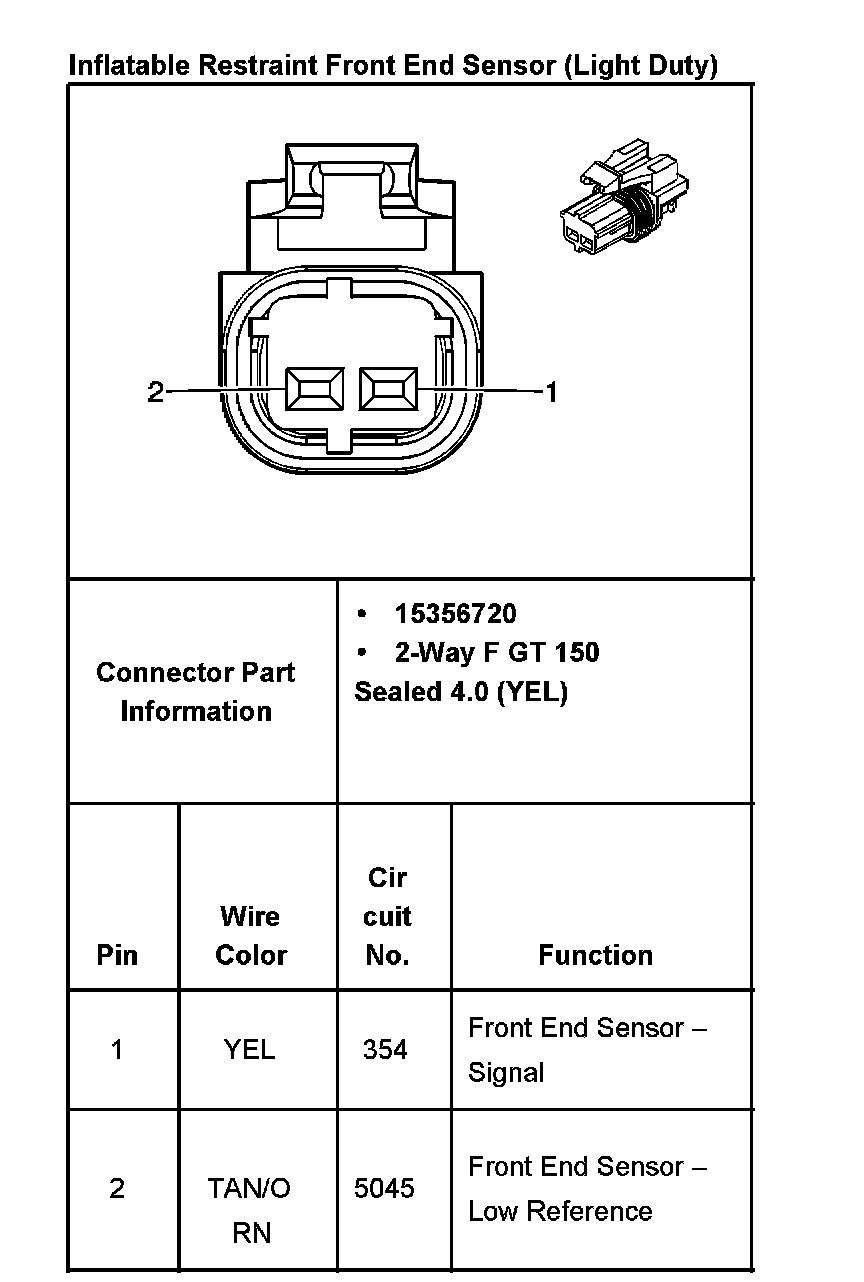

Inflatable Restraint Front End Sensor (Light Duty):
