Headlamp Switch

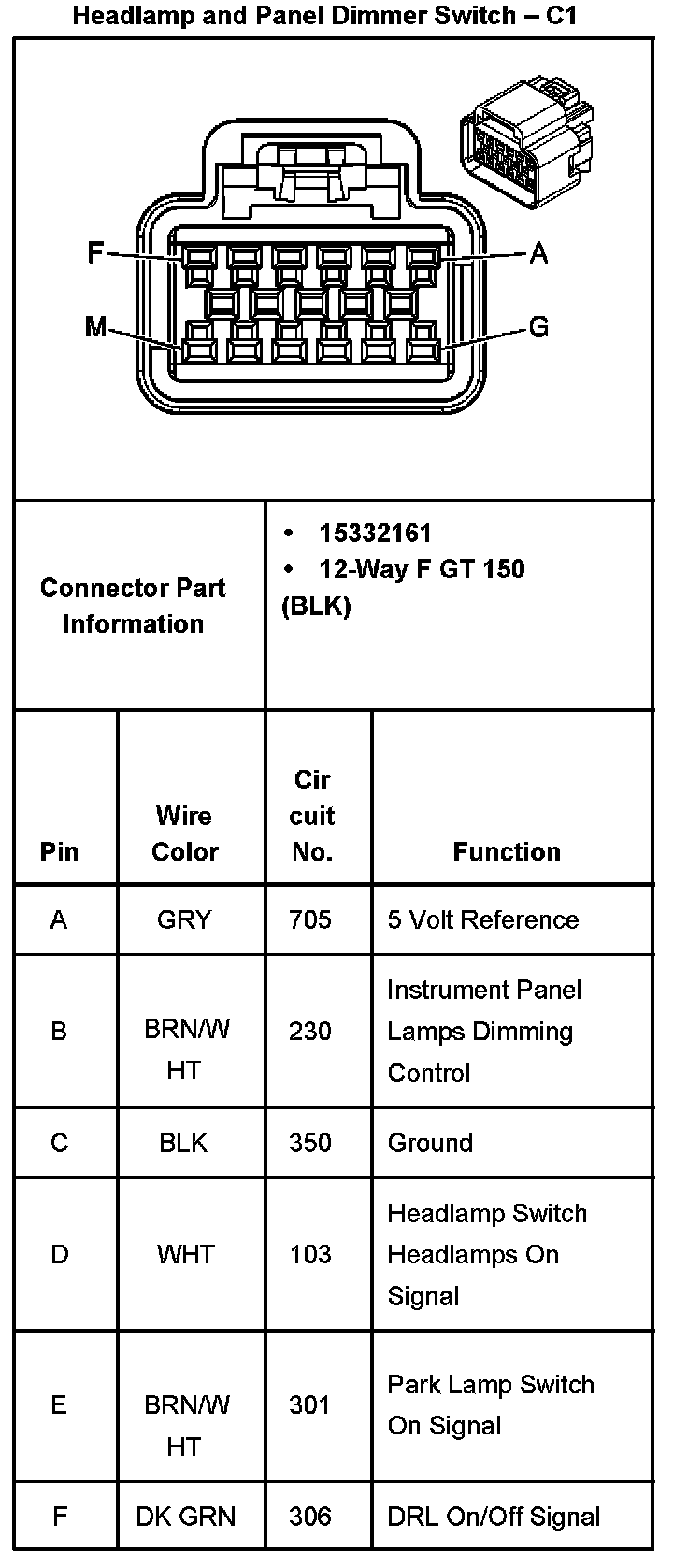

Headlamp And Panel Dimmer Switch - C1 Part 1:

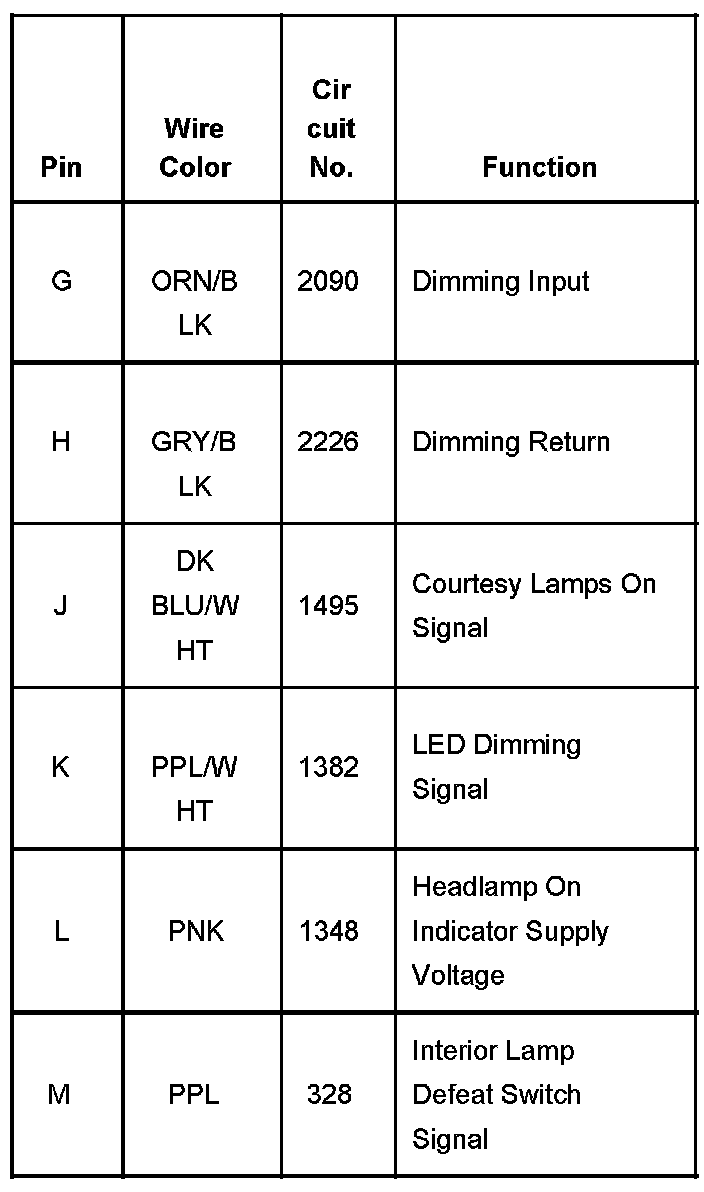

Headlamp And Panel Dimmer Switch - C1 Part 2:
