Powertrain Control Module (PCM) Connector C1

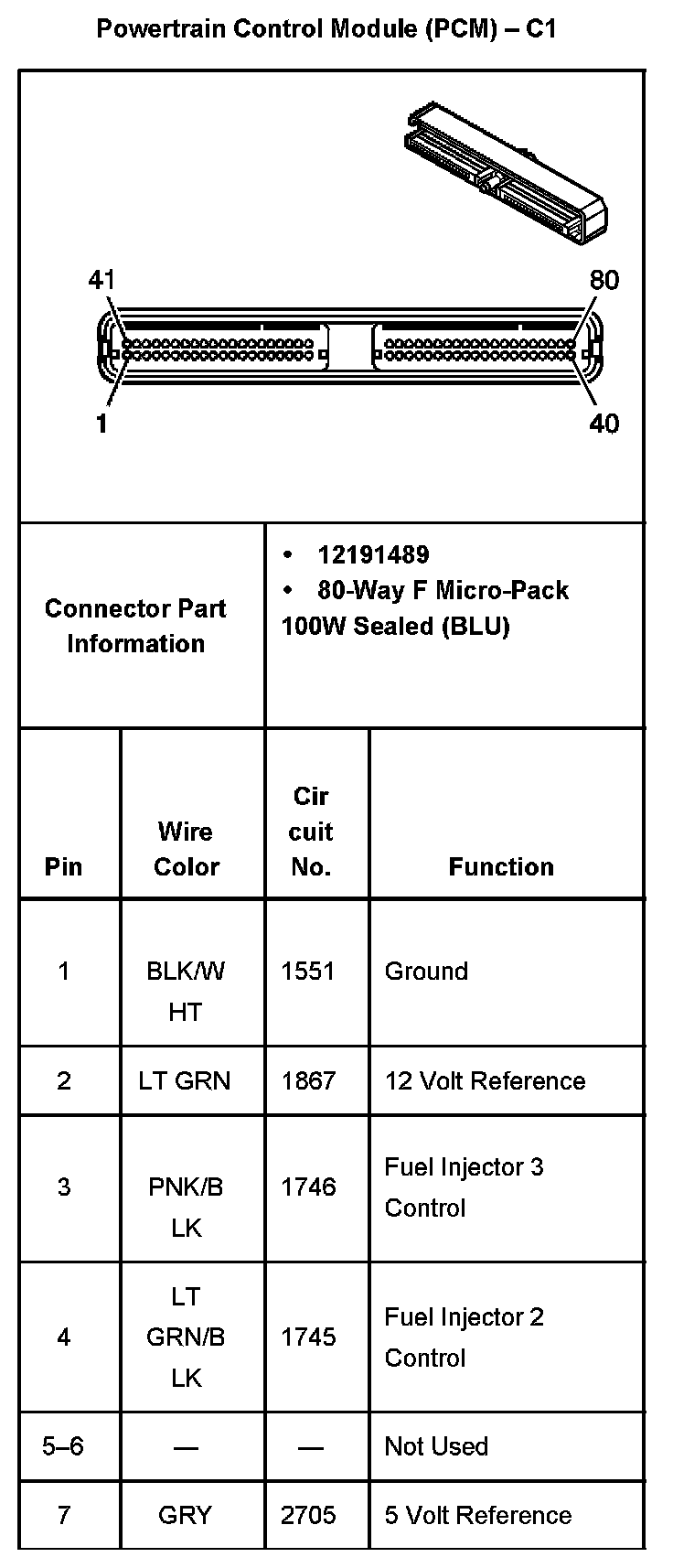

Powertrain Control Module (PCM) - C1 Part 1:

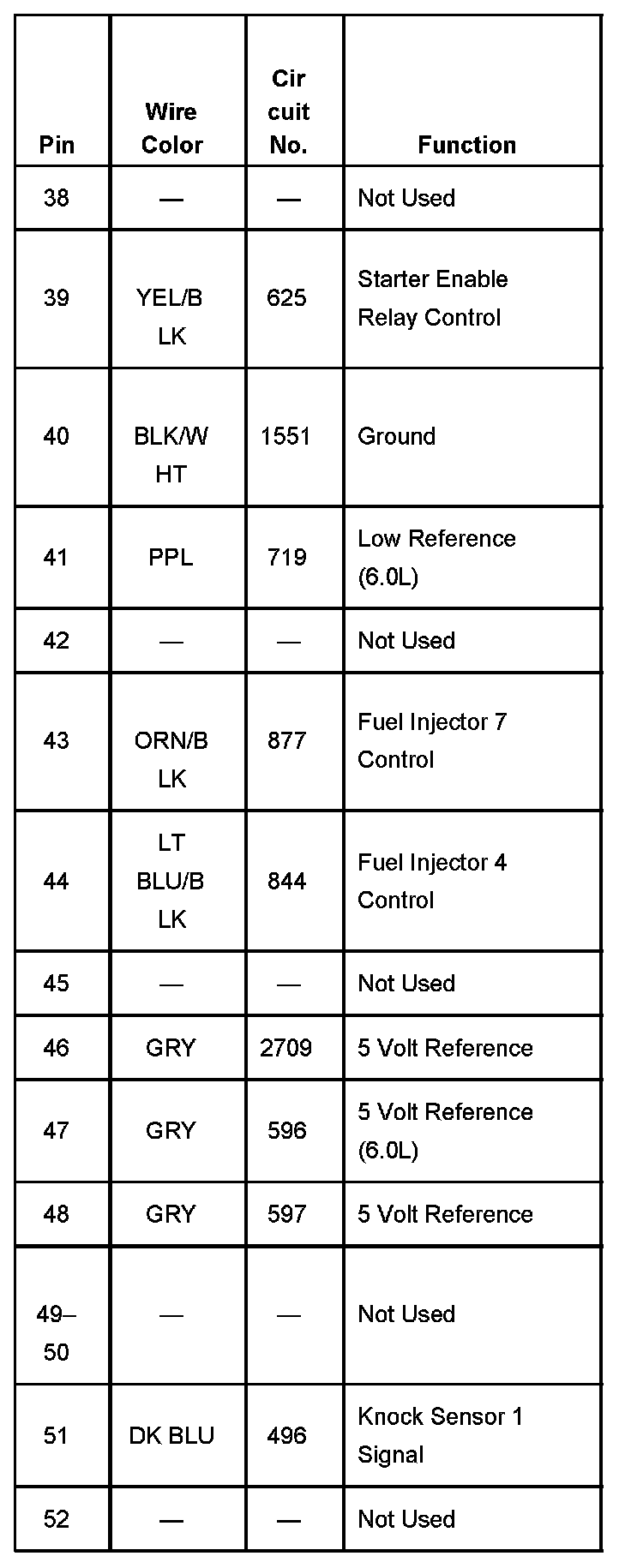

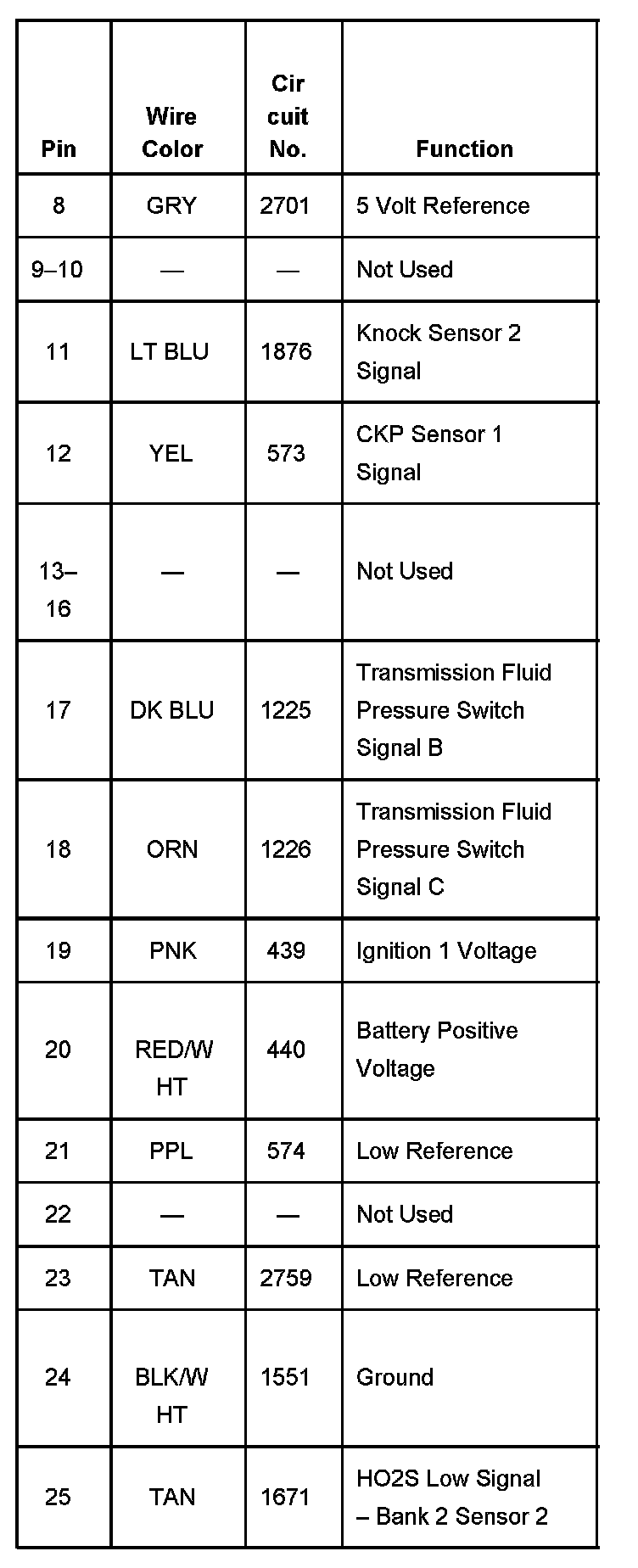

Powertrain Control Module (PCM) - C1 Part 2:

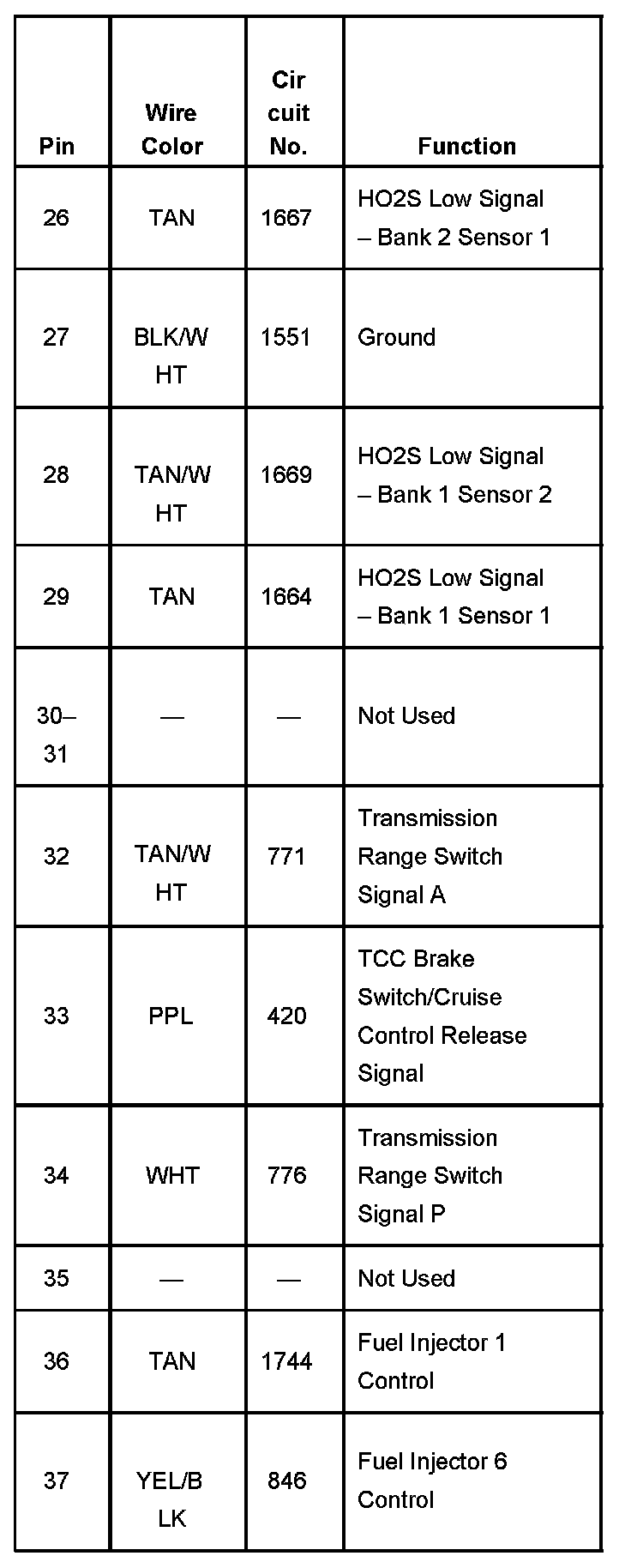

Powertrain Control Module (PCM) - C1 Part 3:

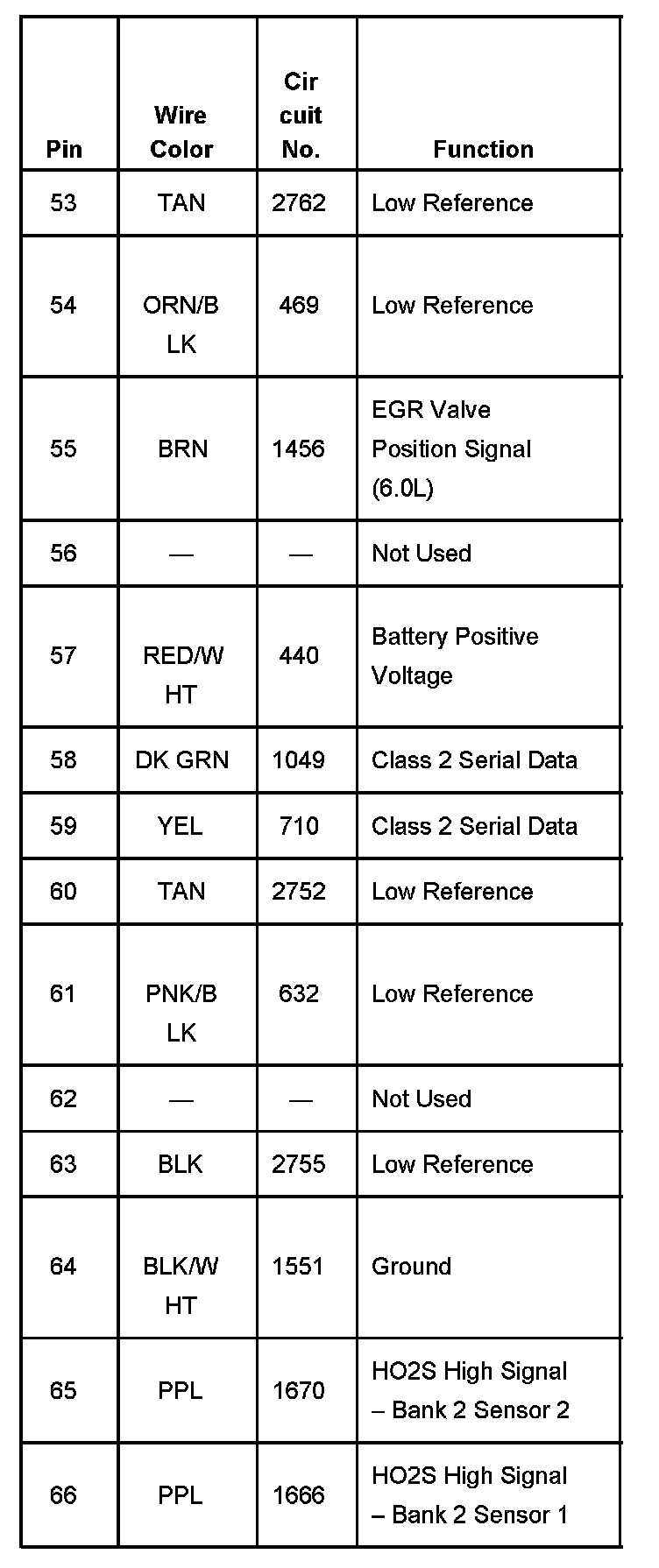

Powertrain Control Module (PCM) - C1 Part 4:

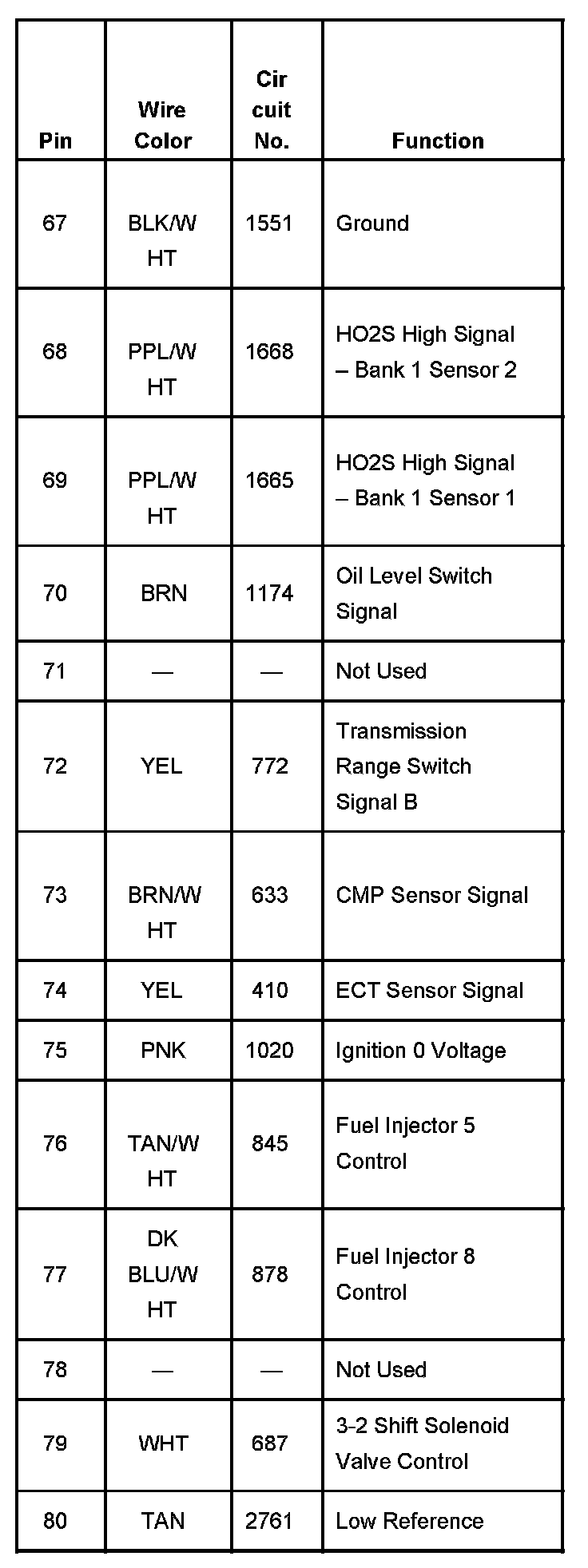

Powertrain Control Module (PCM) - C1 Part 5:

Powertrain Control Module (PCM) - C1 Part 6:
