Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cruise Control Module

Cruise Control Module

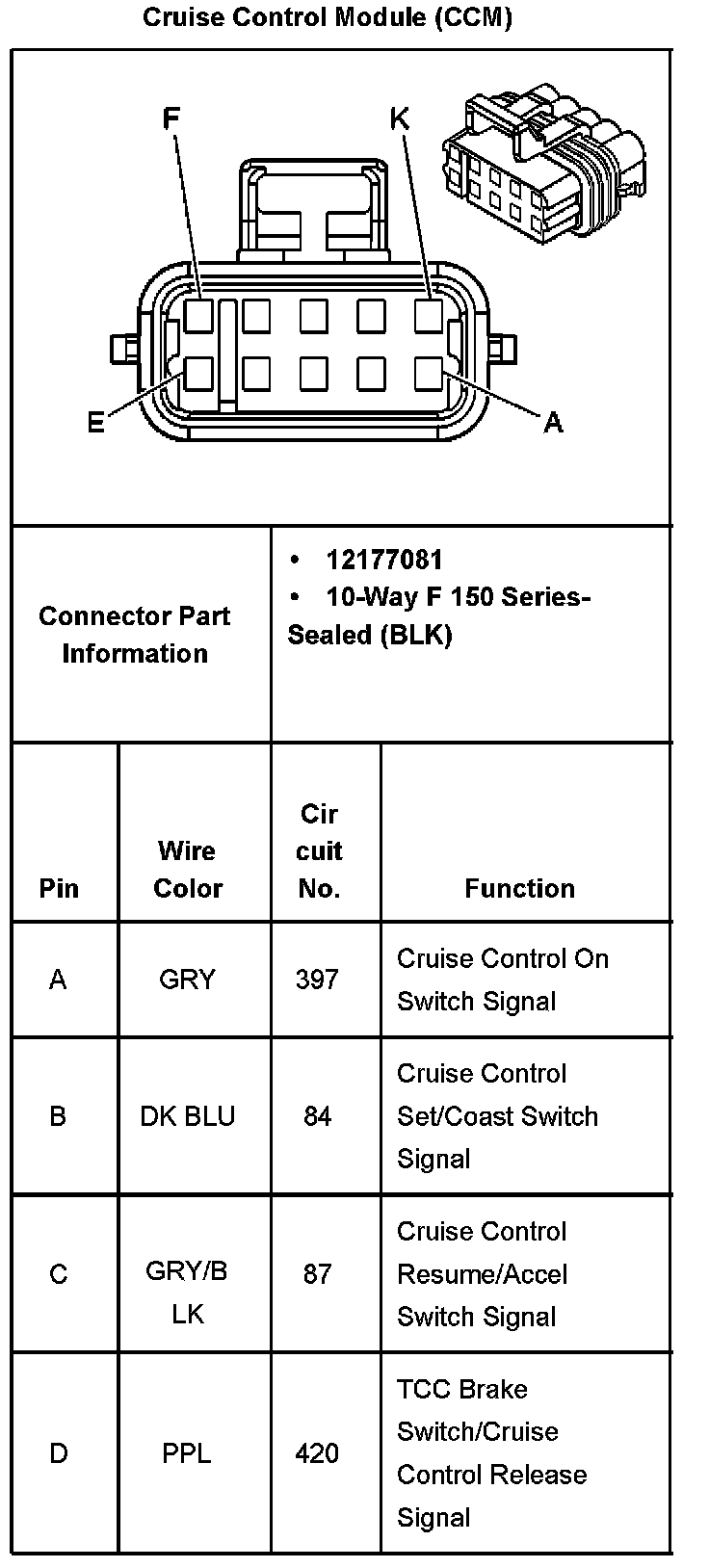

Cruise Control Module (CCM) Part 1:

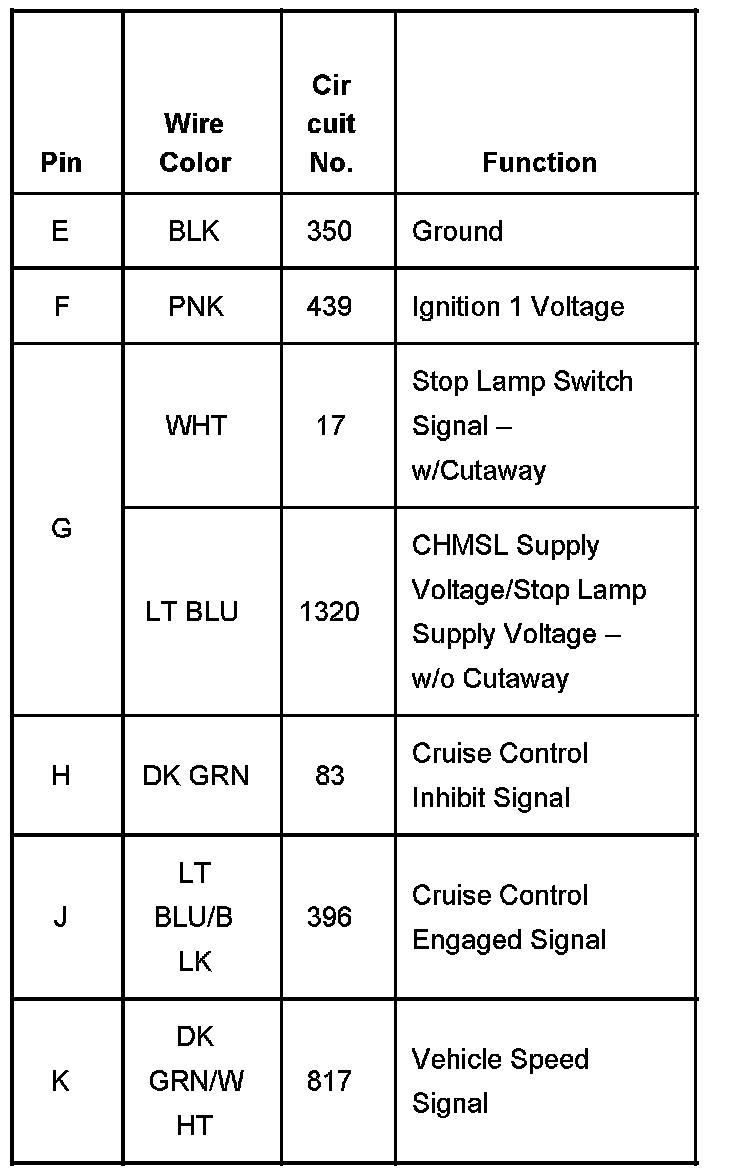

Cruise Control Module (CCM) Part 2:
