C304 Headliner Harness to Body Harness (Without RPO Code YF7)
C304 Headliner Harness to Body Harness (Without RPO Code YF7)

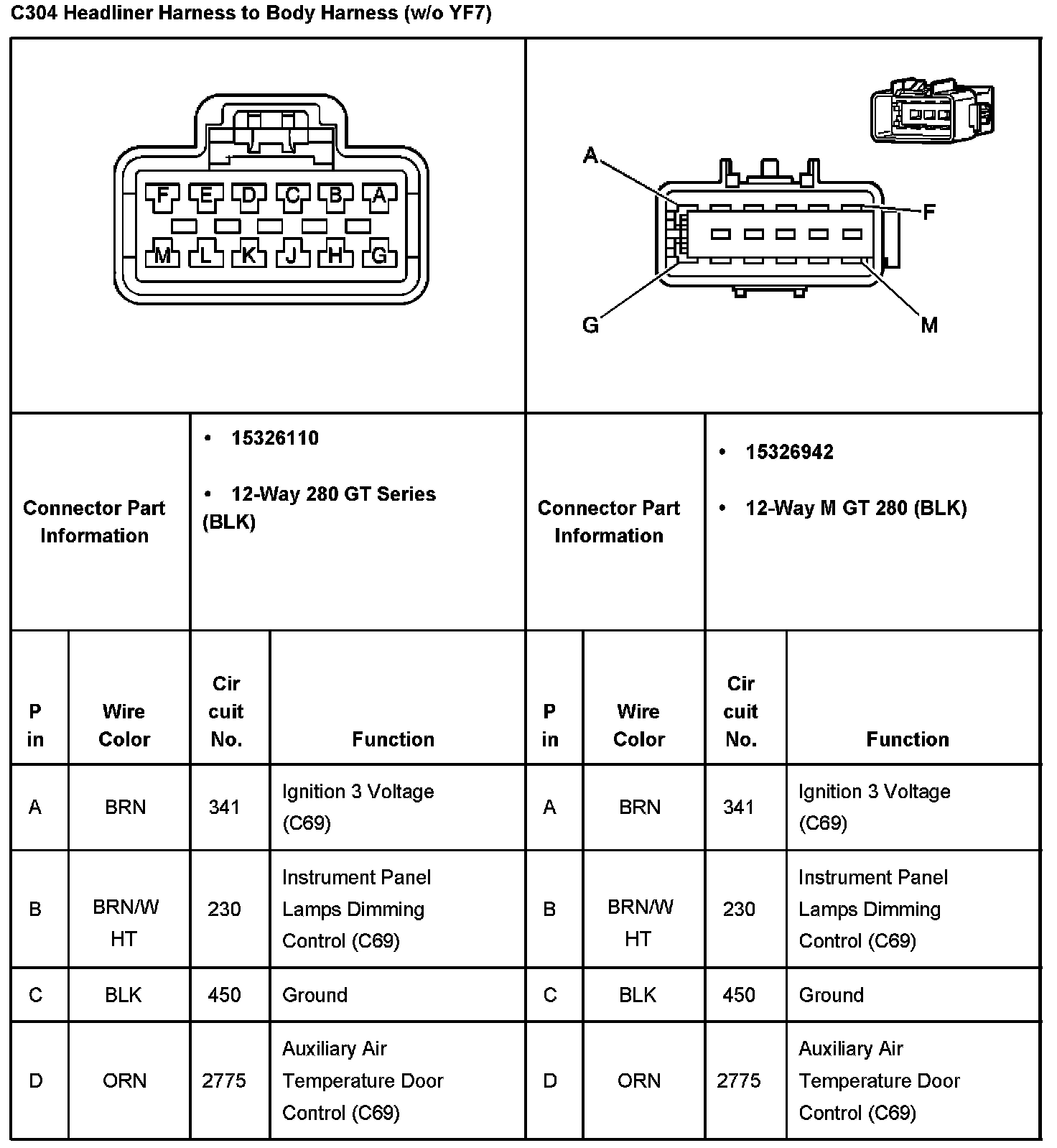

C304 Headliner Harness To Body Harness (Without RPO Code YF7) Part 1:

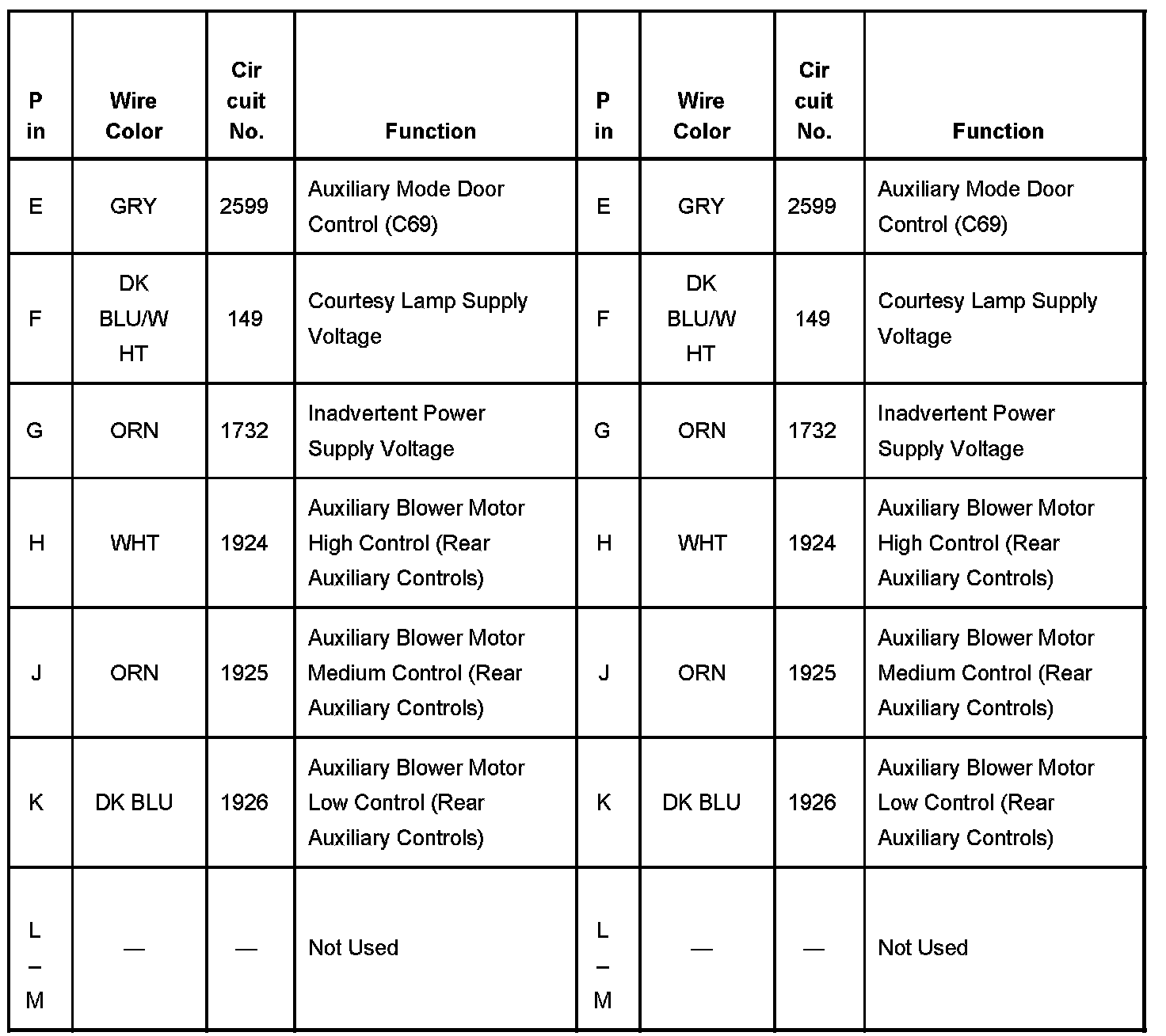

C304 Headliner Harness To Body Harness (Without RPO Code YF7) Part 2:
