C104 I/P to Front End Sensor (Heavy Duty - Late Production)
C104 I/P to Front End Sensor (Heavy Duty - Late Production)

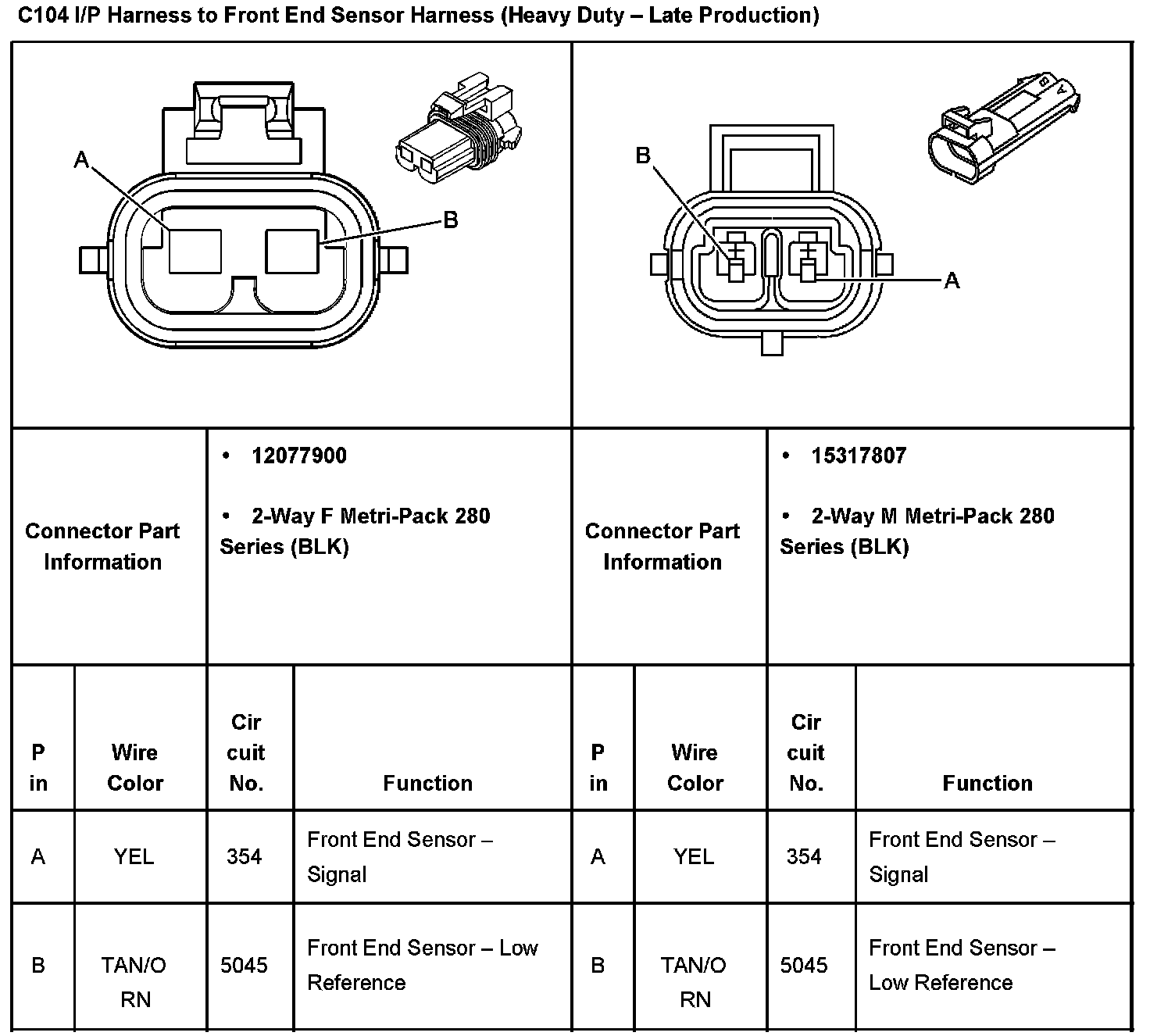

C104 I/P Harness To Front End Sensor Harness (Heavy Duty - Late Production):
