Blower Motor Relay

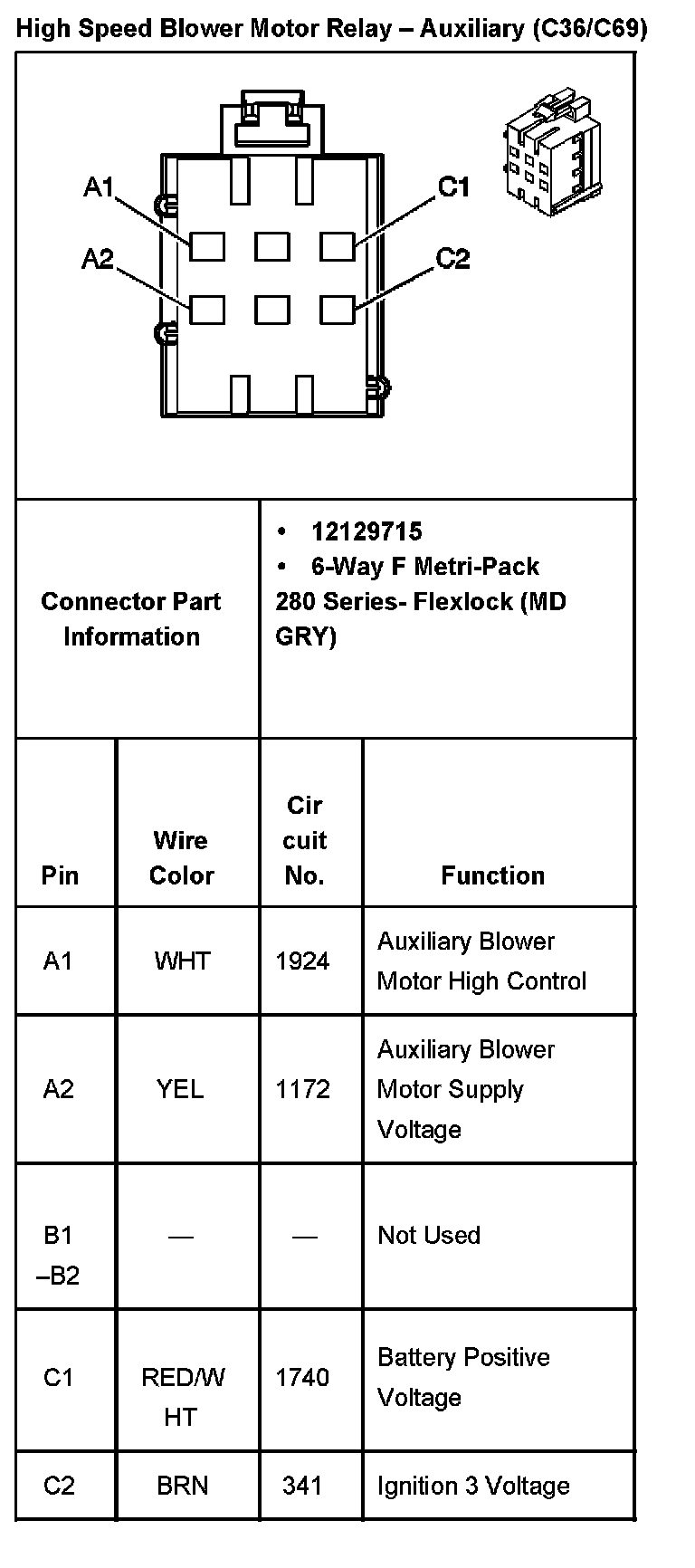

High Speed Blower Motor Relay - Auxiliary (With RPO Code C36/C69):

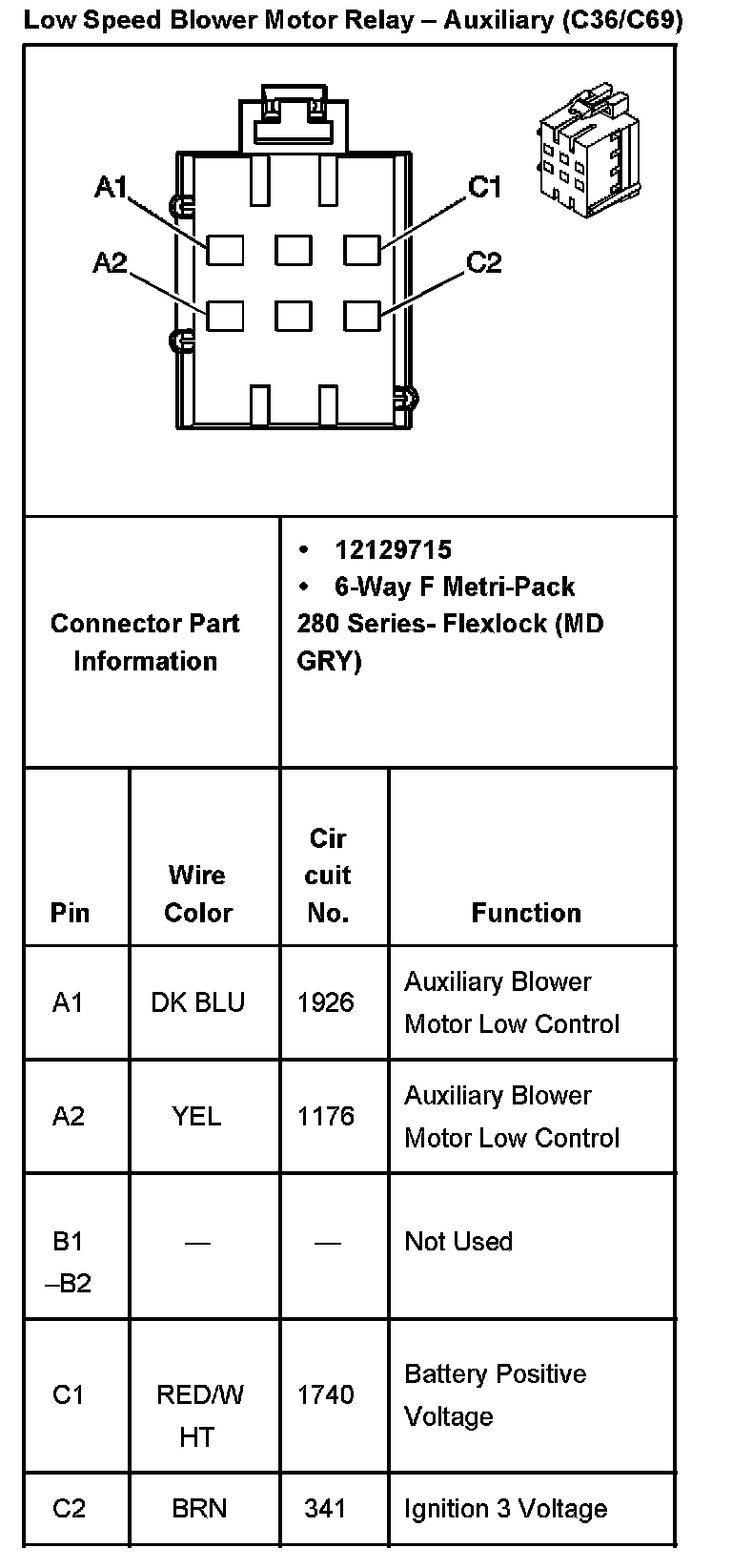

Low Speed Blower Motor Relay - Auxiliary (With RPO Code C36/C69):

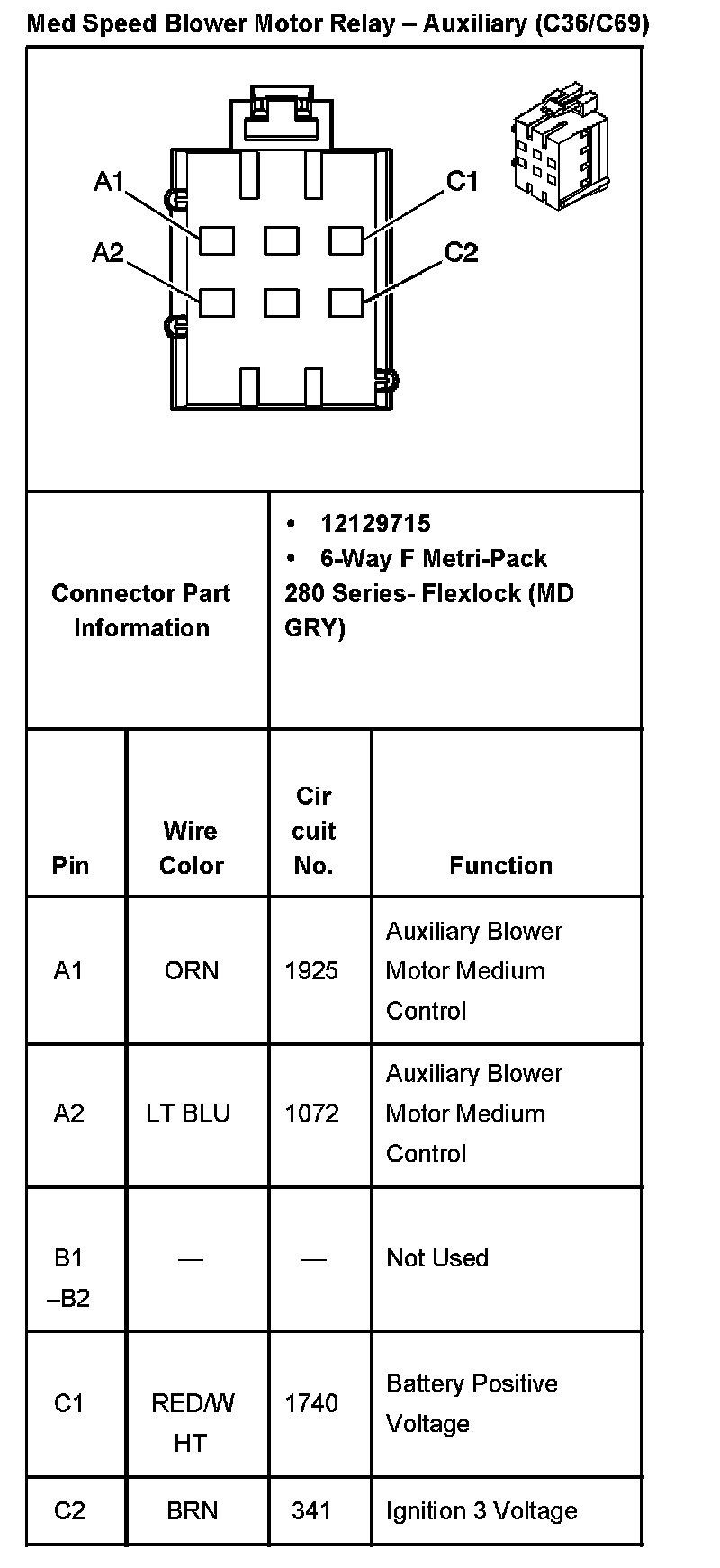

Med Blower Blower Motor Relay - Auxiliary (With RPO Code C36/C69):
