Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Torque Converter Clutch Solenoid, A/T >> 4L60-E/4L65-E >> Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve

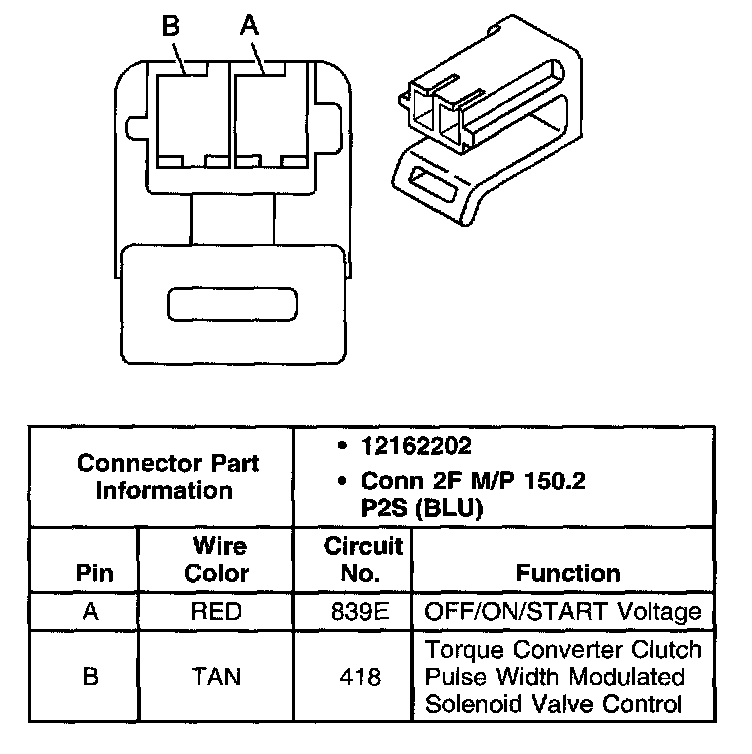

Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve
