Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> 4L80-E/4L85-E >> 1-2 Shift Solenoid Valve

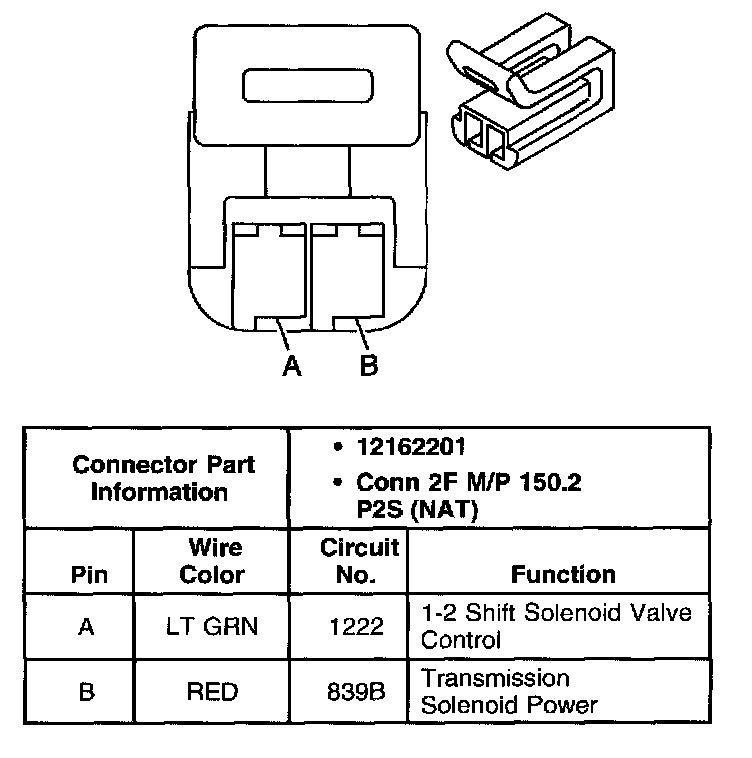

1-2 Shift Solenoid Valve
