Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
To avoid a misdiagnosis, inspect for the following:
- Proper operation of the stop lamps.
- Proper adjustment of the cruise control cable.
- The throttle linkage is not binding.

Electromagnetic interference on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
- The vehicle speed is greater than 40 km/h (25 mph).
- The vehicle is not in PARK, REVERSE, NEUTRAL, or 1st gear.
- The system voltage is within 9 volts and 16 volts.

TEST

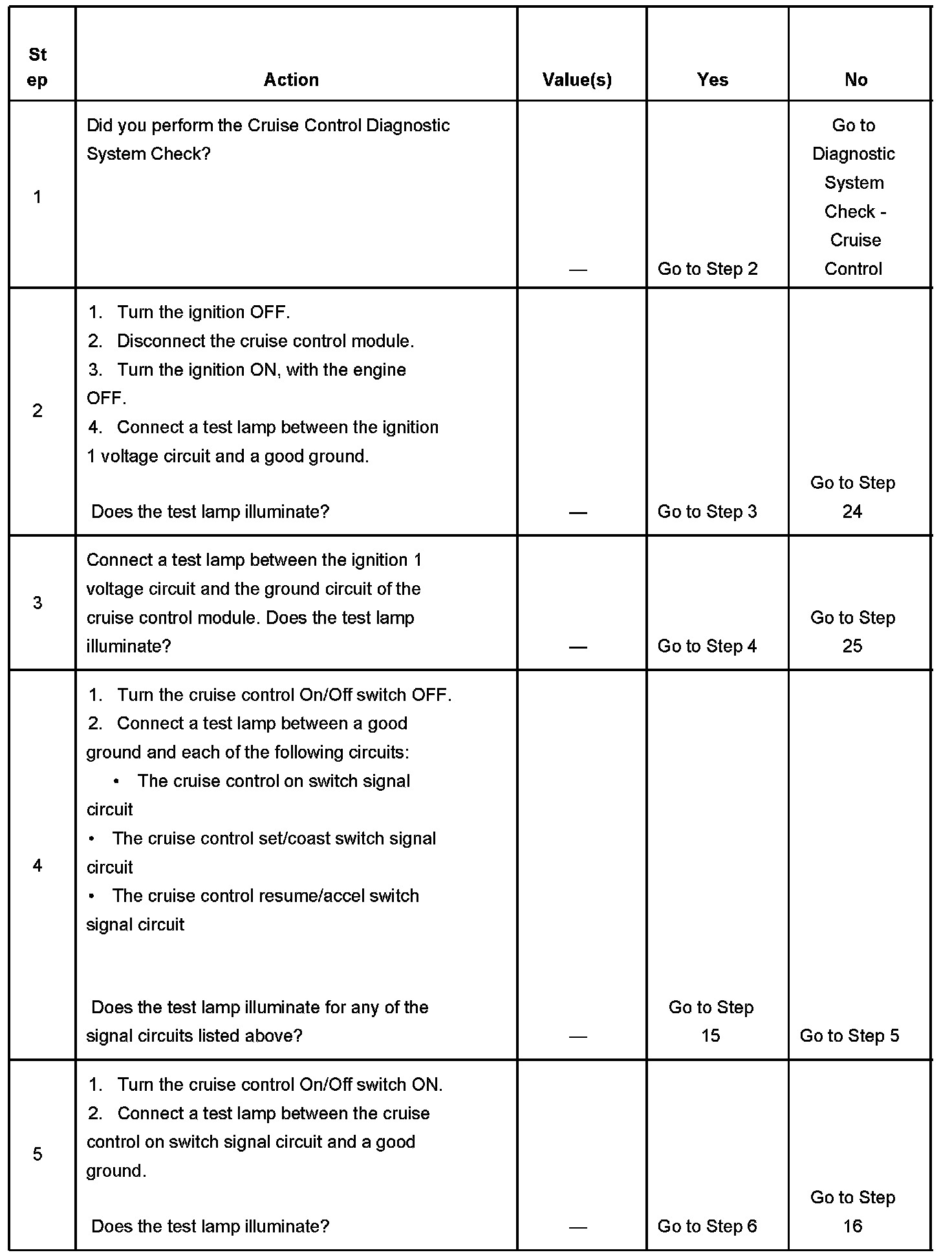

Steps 1-5:

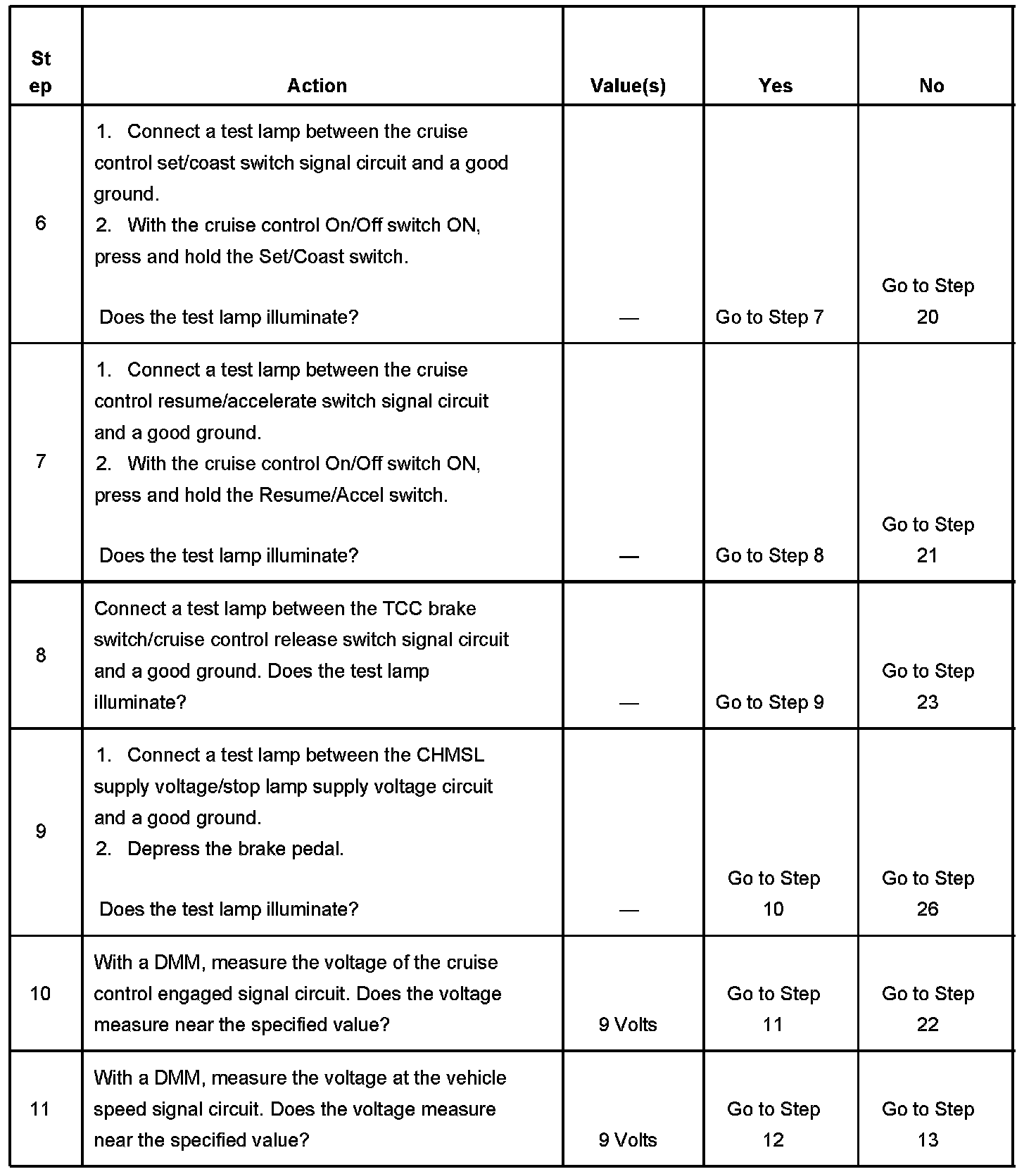

Steps 6-11:

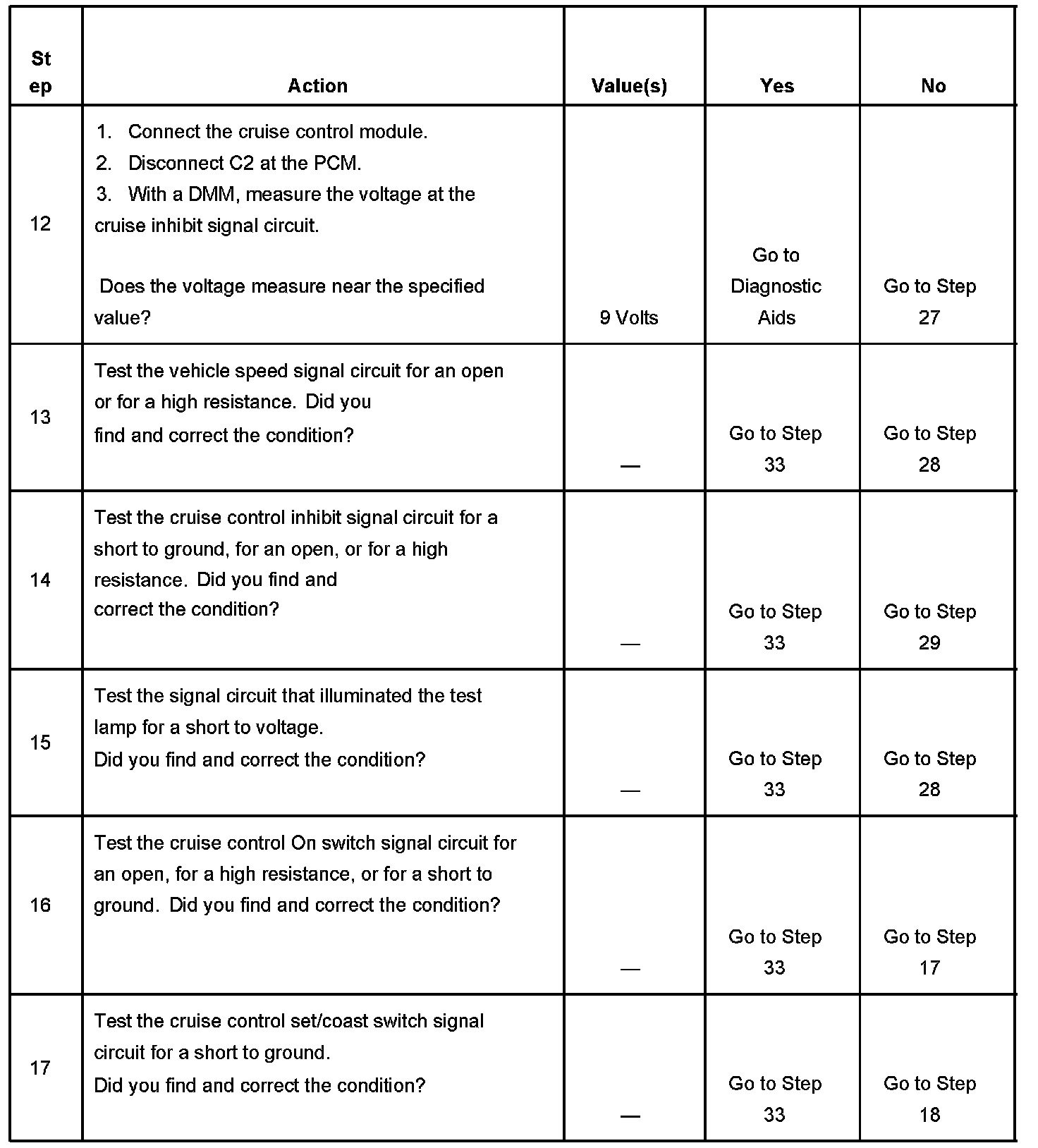

Steps 12-17:

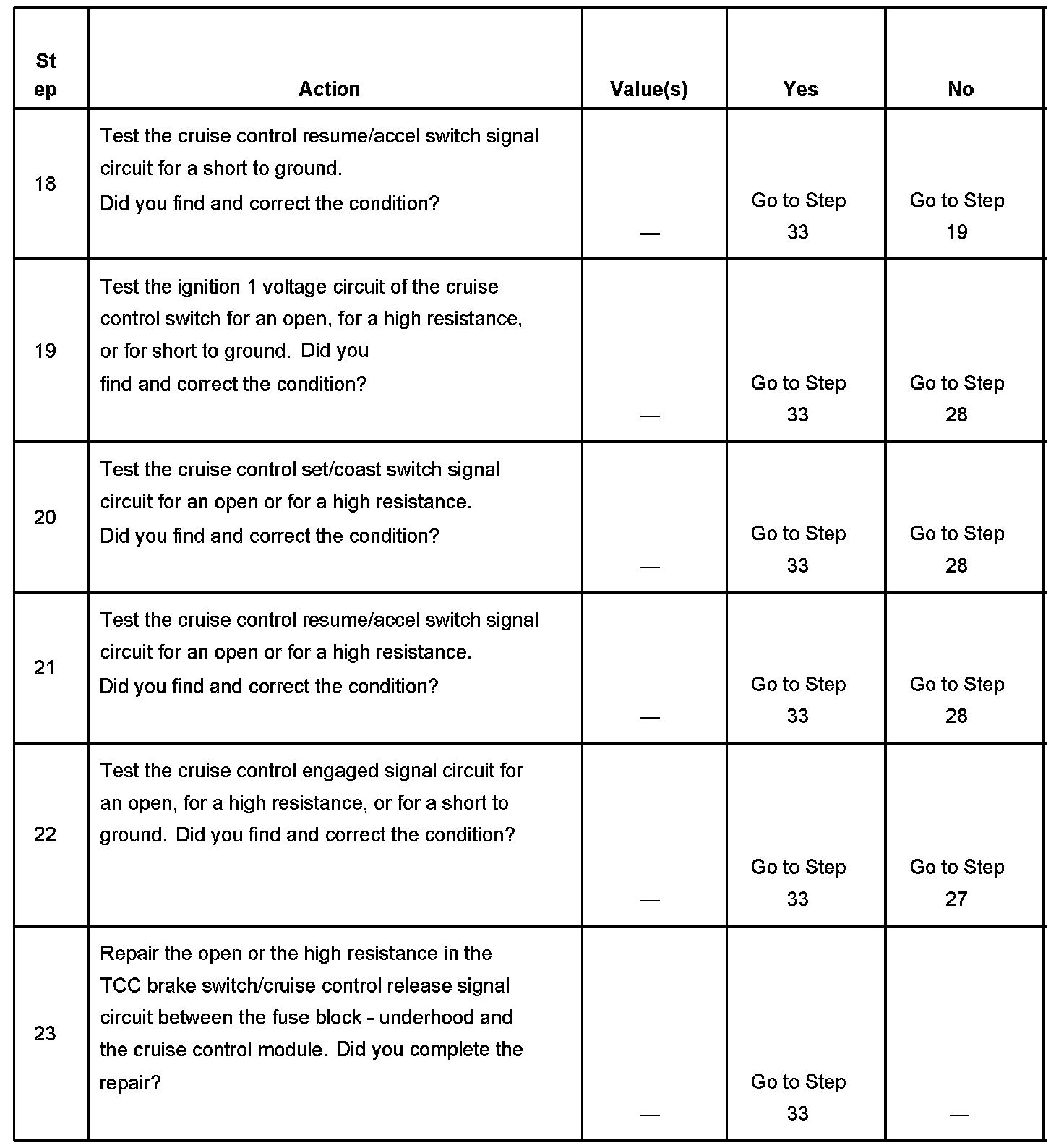

Steps 18-23:

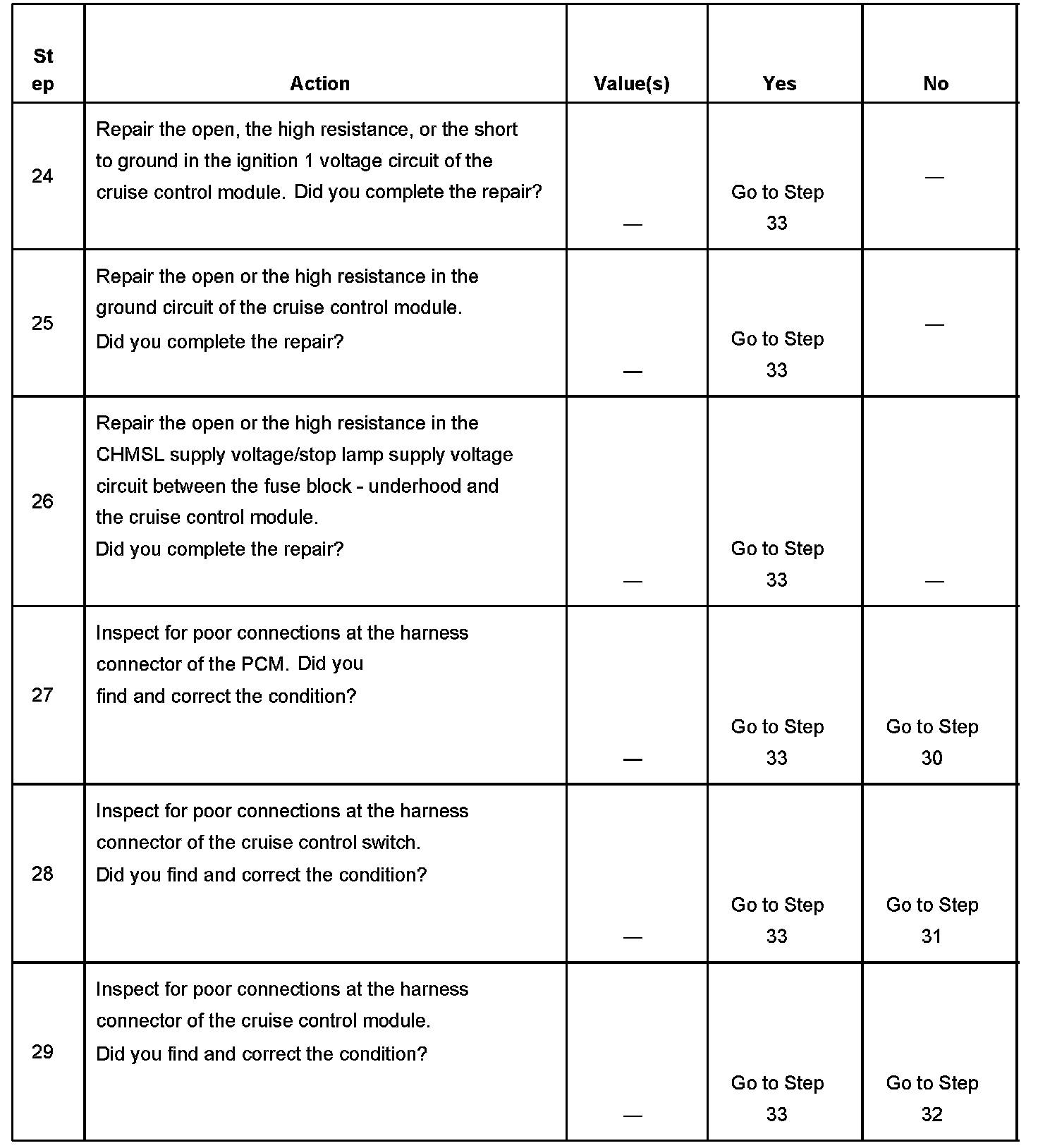

Steps 24-29:

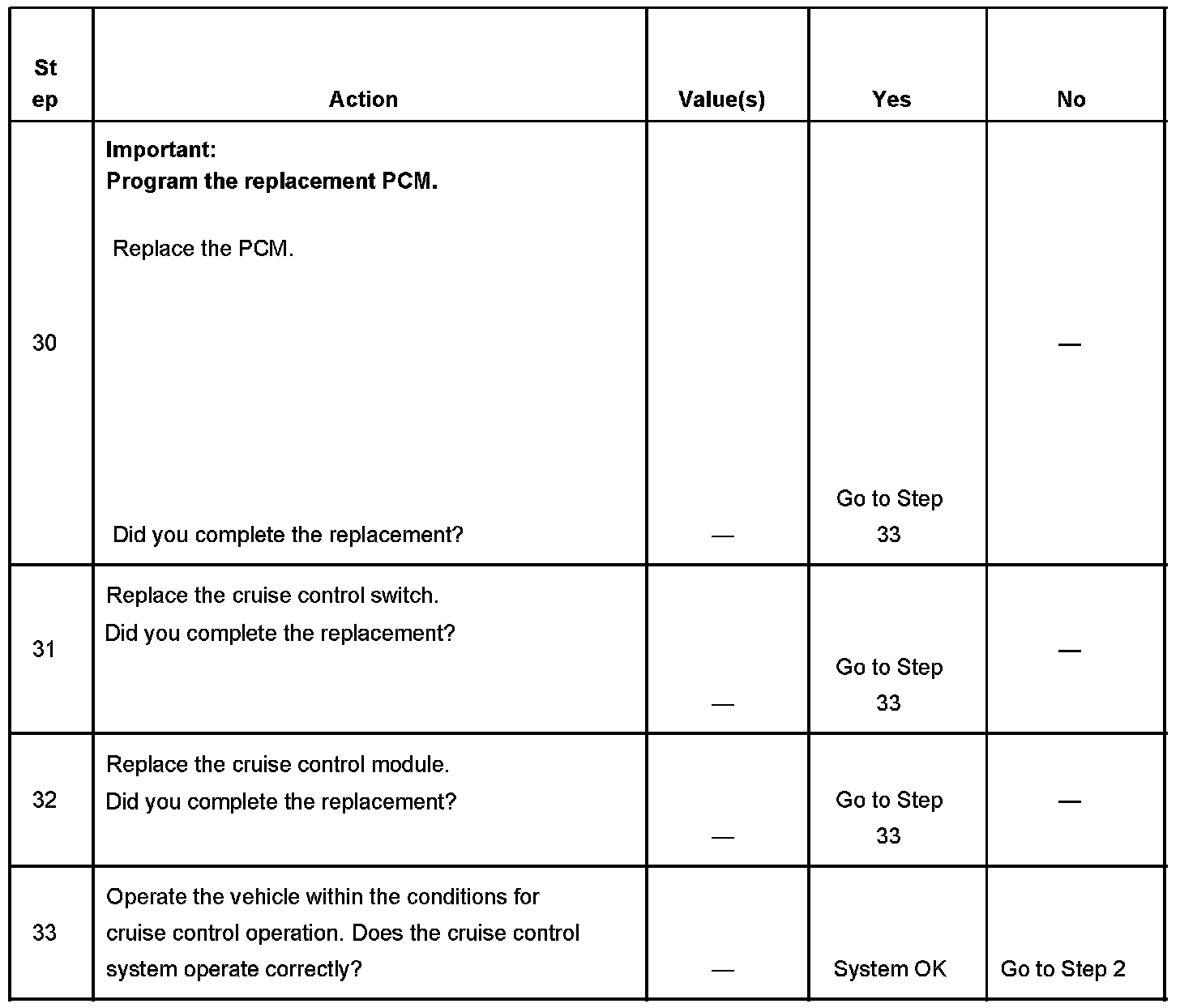

Steps 30-33:
