Front
Brake Rotor Replacement - FrontTools Required
- J41013 Rotor Resurfacing Kit
- J42450A Wheel Hub Resurfacing Kit
Caution: Refer to Brake Dust Caution in Service Precautions.
Brake Dust Caution
Removal Procedure
Notice: Any new rotor must have the protective coating removed from the friction surfaces before being placed in service. Use Goodwrench Brake Parts Cleaner, GM P/N 123777981 (Canadian P/N 10953463), or the equivalent, and wipe the surface clean with clean cloths. Do not use gasoline, kerosene, or other oil base solvents which may leave an oily residue. This residue is damaging to the brake lining and is flammable.
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.

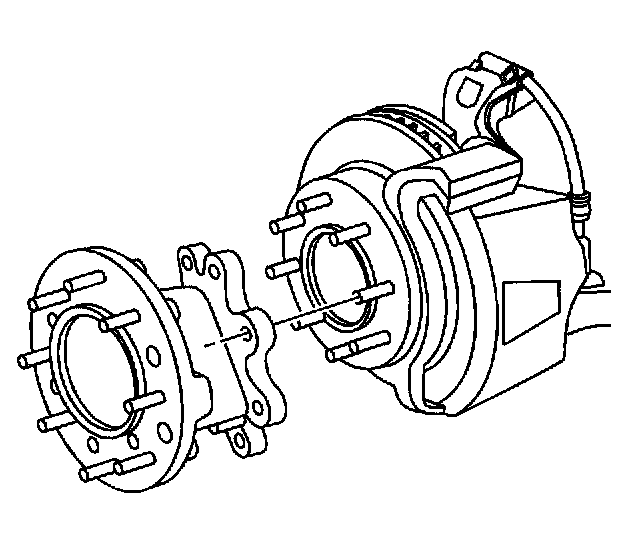

3. Remove the front wheel hub extension, dual wheel vehicles only.
3.1. Insert a drift or large screwdriver through the brake caliper into one of the brake rotor vanes in order to prevent the rotor from turning.
3.2. Mark the relationship of the front wheel hub extension to the hub.
3.3. Remove the front wheel hub extension bolts.
3.4. Remove the front wheel hub extension from the vehicle. It may be necessary to tap around the perimeter of the hub extension with a rubber mallet to loosen it from the hub.
4. Mark the relationship of the rotor to the hub.

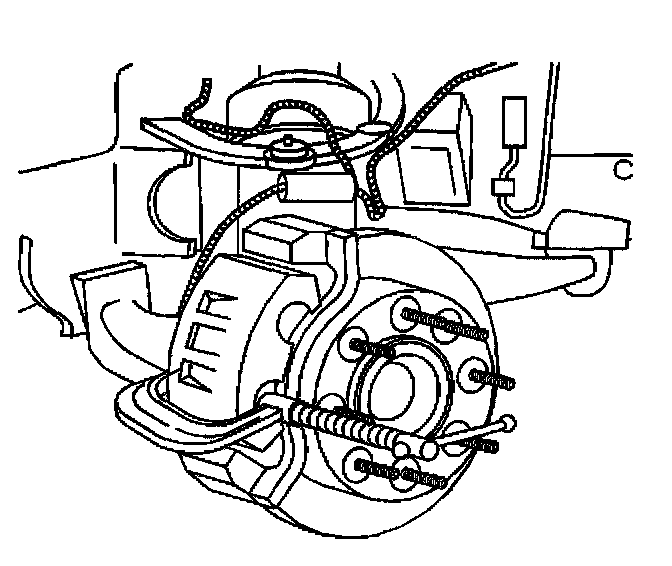

5. Install a C-clamp over the body of the brake caliper, with the C-clamp ends against the rear of the caliper body and the outboard disc brake pad.
6. Slowly tighten the C-clamp until the pistons are pushed into the caliper bores enough to remove the caliper from the pads.
7. Remove the C-clamp from the caliper.
Notice: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from it's mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

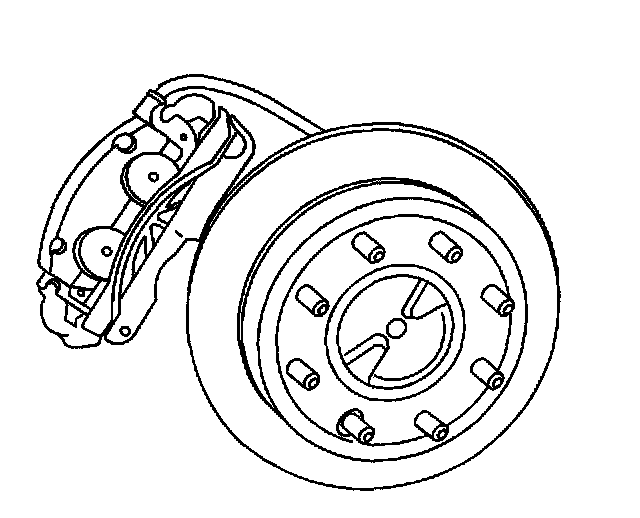

8. Remove the brake caliper and brake caliper bracket as an assembly and support with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper.
9. Remove the rotor retaining push nuts from the wheel studs, if applicable.
10. It may be necessary to strike the end of the hub or the rotor with a deadblow hammer to separate the rotor from the hub.

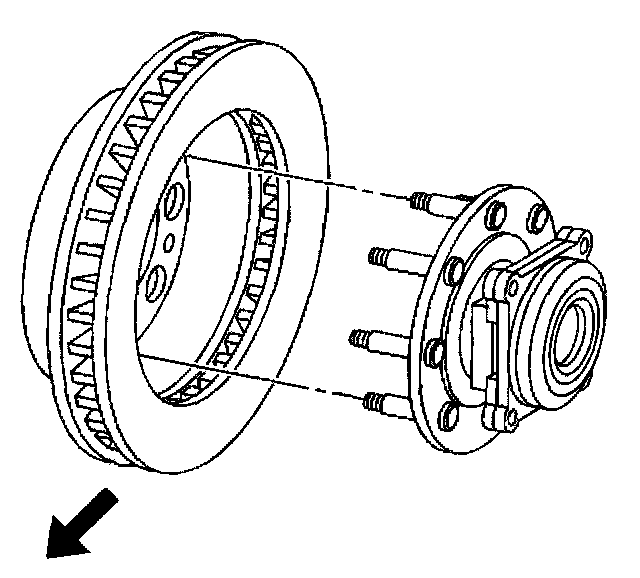

11. Remove the rotor.
12. If the rotor is difficult to remove due to corrosion in the hub area use the following procedure to remove the rotor, 25 and 35 series only.
12.1. Clean all the surface areas and the threaded holes of contamination.
12.2. Generously apply penetrating oil or the equivalent to the hub/rotor area
12.3. insert two M10 x 1.5 bolts or jack screws into the threaded holes of the rotor.
12.4. Tighten both bolts evenly to force the rotor from the hub.
Installation Procedure
Important: Whenever the brake rotor has been separated from the hub axle flange, any rust or contaminants should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor. which could lead to brake pulsation.
1. Use the J42450-A to clean all rust and contaminants from the mating surface of the hub flange.
2. Use the J41013to clean all rust and contaminants from the inside diameter of the hat section of the brake rotor to prevent any foreign material from getting between the brake rotor and the hub flange.
3. Inspect the mating surfaces of the hub/axle flange and the rotor to ensure that there are no foreign particles or debris remaining.
Important: If the rotor was removed using the jack screw method you must ensure that the hub flange is free of nicks or marks caused by this procedure. Remove all raised nicks or marks before installing the rotor.

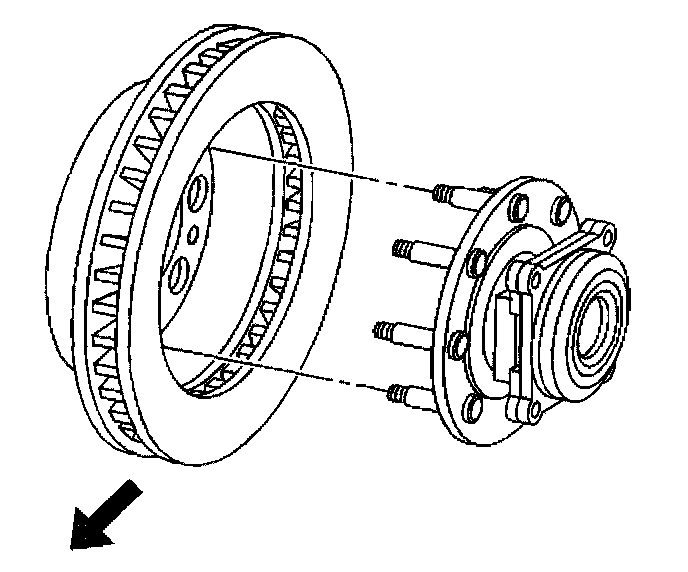

4. Align the rotor to its original position on the hub (if applicable) and install the rotor.
5. If the brake rotor was removed and installed as part of a brake system repair. measure the assembled lateral runout (LRO) of the brake rotor to ensure optimum performance of the disc brakes.
6. If the brake rotor assembled LRO measurement exceeds the specification, bring the LRO to within specifications.
7. Install the caliper and caliper bracket assembly.
8. Perform the following procedure before installing the brake caliper bracket mounting bolts.
8.1. Remove all traces of the original adhesive patch.
8.2. Clean the threads of the bolt with brake parts cleaner or the equivalent and allow to dry.
8.3. Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488) to the threads of the bolt.
Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice
9. Install the caliper bracket mounting bolts.
Tighten the brake caliper bracket mounting bolts to 175 Nm (121 ft. lbs.) (15 Series).
Tighten the brake caliper bracket mounting bolts to 300 Nm (221 ft. lbs.) (25 and 35 Series).

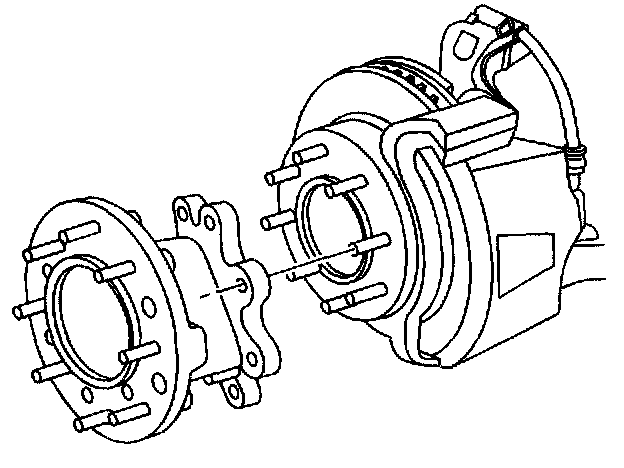

10. Install the front wheel hub extension (dual wheel vehicles only).
10.1. Insert a drift or large screwdriver through the brake caliper into one of the brake rotor vanes in order to prevent the rotor from turning.
10.2. Align and install the front wheel hub extension to the original position on the hub.
Important :Follow the same tightening sequence for the front wheel hub extension that is used on an eight lug wheel.
10.3. Install the front wheel hub extension nuts.
Tighten the front wheel hub extension nuts to 130 Nm (96 ft. lbs.).
11. Install the tire and wheel assembly.
12. Lower the vehicle.
13. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
14. Slowly release the brake pedal.
15. Wait 15 seconds, then repeat steps 13-14 until a firm pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
16. Fill the master cylinder reservoir to the proper level with clean brake fluid.
