Brake Caliper Bracket Replacement - Front
Brake Caliper Bracket Replacement - FrontRemoval Procedure
Caution: Refer to Brake Dust Caution in Service Precautions.
Brake Dust Caution
Notice: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from it's mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
1. Remove the caliper from the mounting bracket and support the caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper.
2. Remove the brake pads.
3. Remove the anti-rattle clips from the brake caliper bracket.

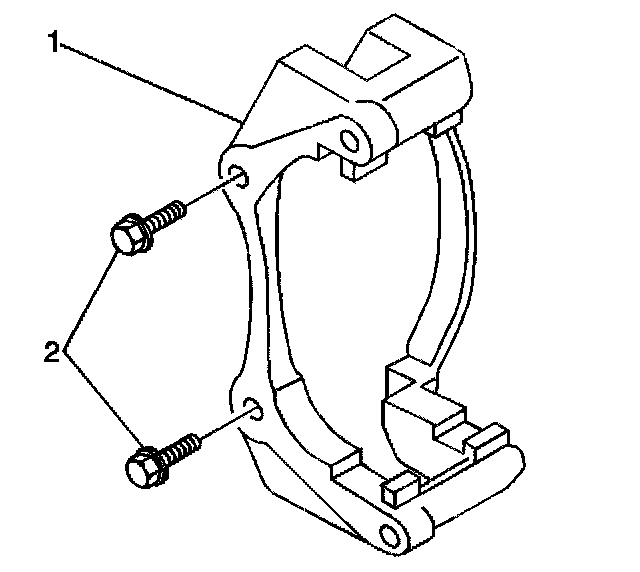

4. Remove the brake caliper bracket mounting bolts (1)
5. Remove the brake caliper bracket (1).
6. Remove any contaminants or foreign material from the inside ends of the brake caliper bracket.
7. Clean the mounting surface and threads of the brake caliper bracket.
Installation Procedure
1. Install the brake caliper bracket (1).
2. Perform the following procedure before installing the brake caliper bracket mounting bolts.
- Remove all traces of the original adhesive patch.
- Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
- Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488).
Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice

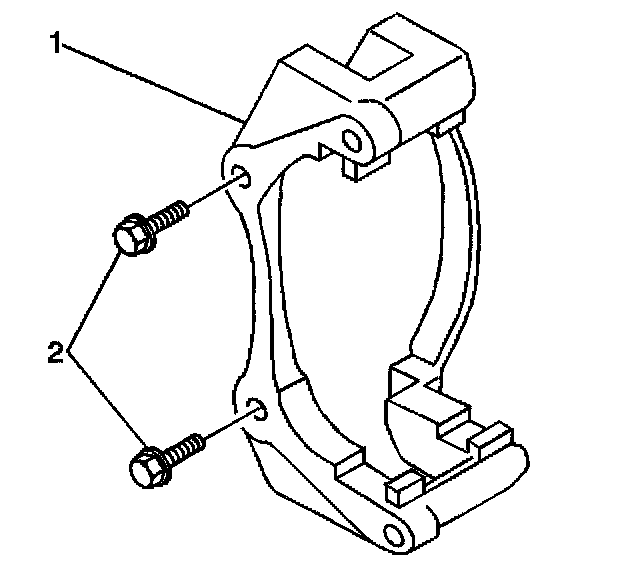

3. Install the caliper bracket mounting bolts (2).
Tighten the brake caliper bracket to knuckle bolt to 175 Nm (121 lb ft) for the 15 Series.
Tighten the brake caliper bracket to knuckle bolts to 300 Nm (221 lb ft) for 25/35 Series.
4. Install the anti-rattle clips to the brake caliper bracket.
5. Install the brake pads to the brake caliper bracket.
6. Slide the brake pads in until they contact the rotor.
7. Install the brake caliper.
8. Install the tire and wheel assembly.
9. Lower the vehicle.
10. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
11. Slowly release the brake pedal.
12. Wait 15 seconds, then repeat steps 10 - 11 until a firm pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
