Tie-Down Bracket Replacement - Front

Tie-Down Bracket Replacement - Front

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) in General Information.

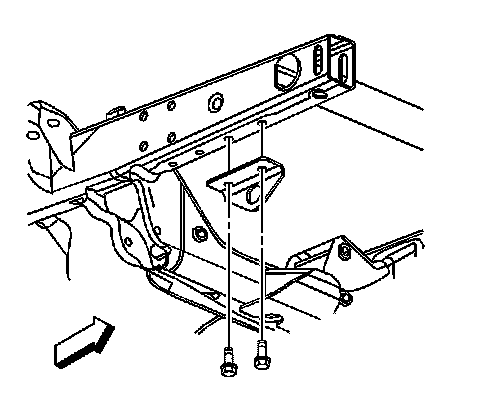

2. Remove the tie down bracket to the frame mounting bolts, left side only.
3. Remove the tie down bracket from the frame.



Installation Procedure





1. Install the tie down bracket to the frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the tie down bracket to the frame mounting bolts.

Tighten the bolts to 30 N.m (22 lb ft).

3. Lower the vehicle.
