Procedures

LOCK ACTUATOR REPLACEMENT - POWER DOOR

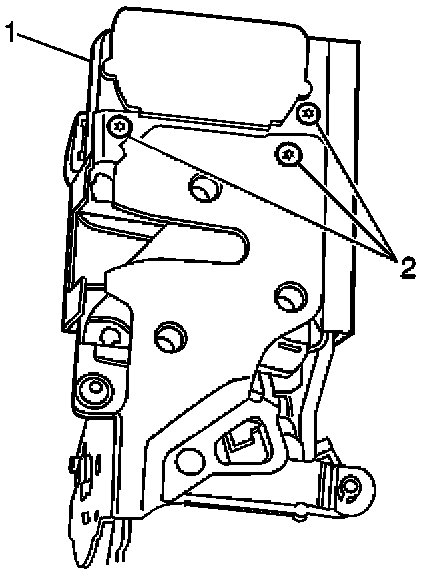

REMOVAL PROCEDURE

IMPORTANT: The power door lock actuator is attached to the door lock assembly.

1. Remove the door lock assembly.




2. Remove the power door lock actuator retainers (2) from the door lock assembly.
3. Remove the power door lock actuator (1).

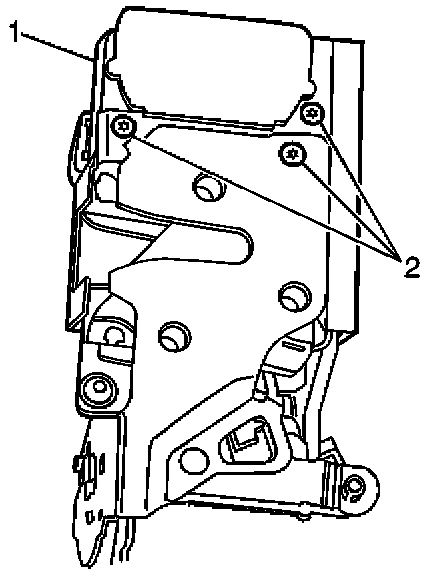

INSTALLATION PROCEDURE




1. Install the power door lock actuator (1).
2. Install the power door lock actuator retainers (2) to the door lock assembly.
3. Install the door lock assembly.
