Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> One Access Panel Inoperative

One Access Panel Inoperative

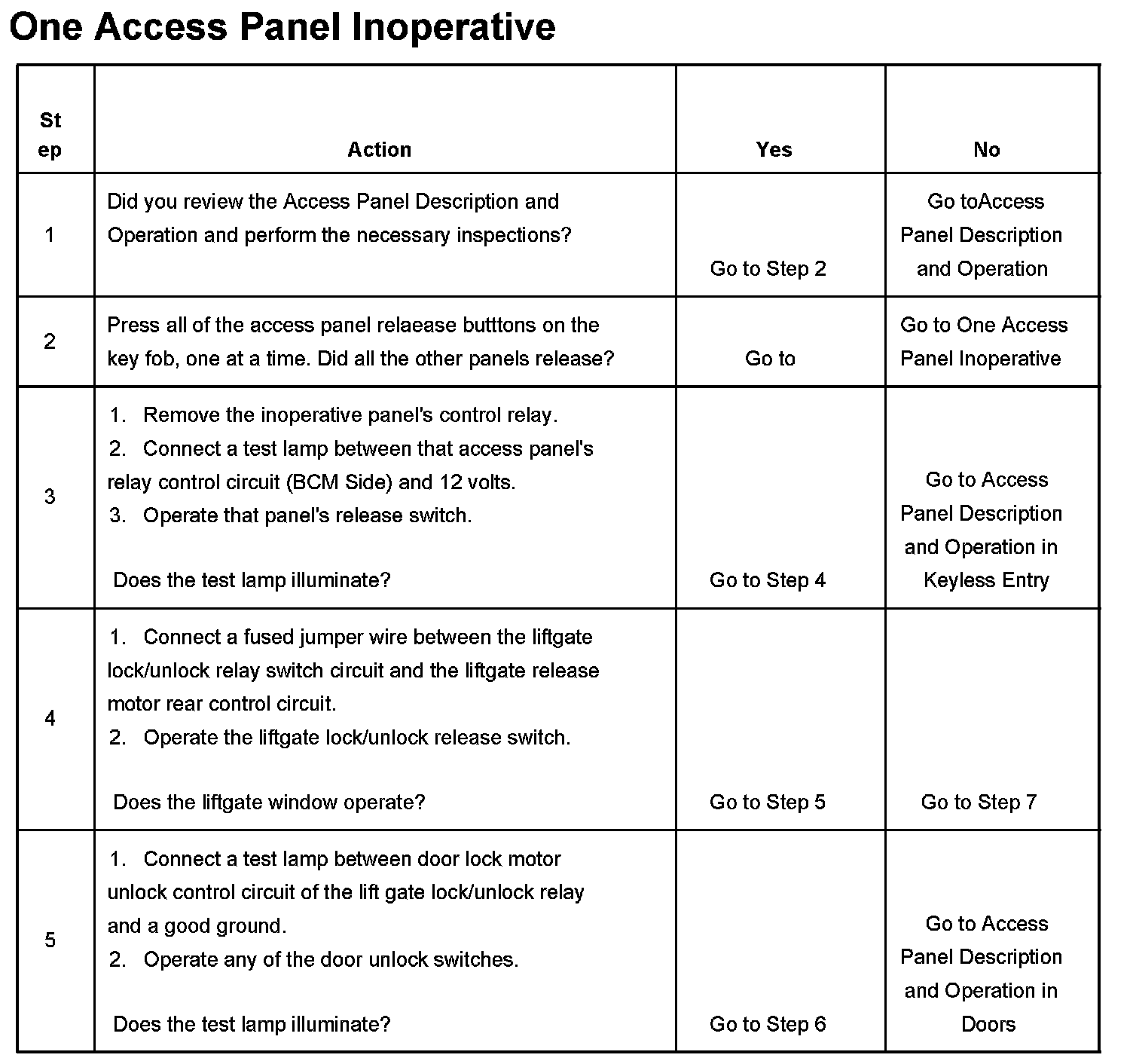

Steps 1-5:

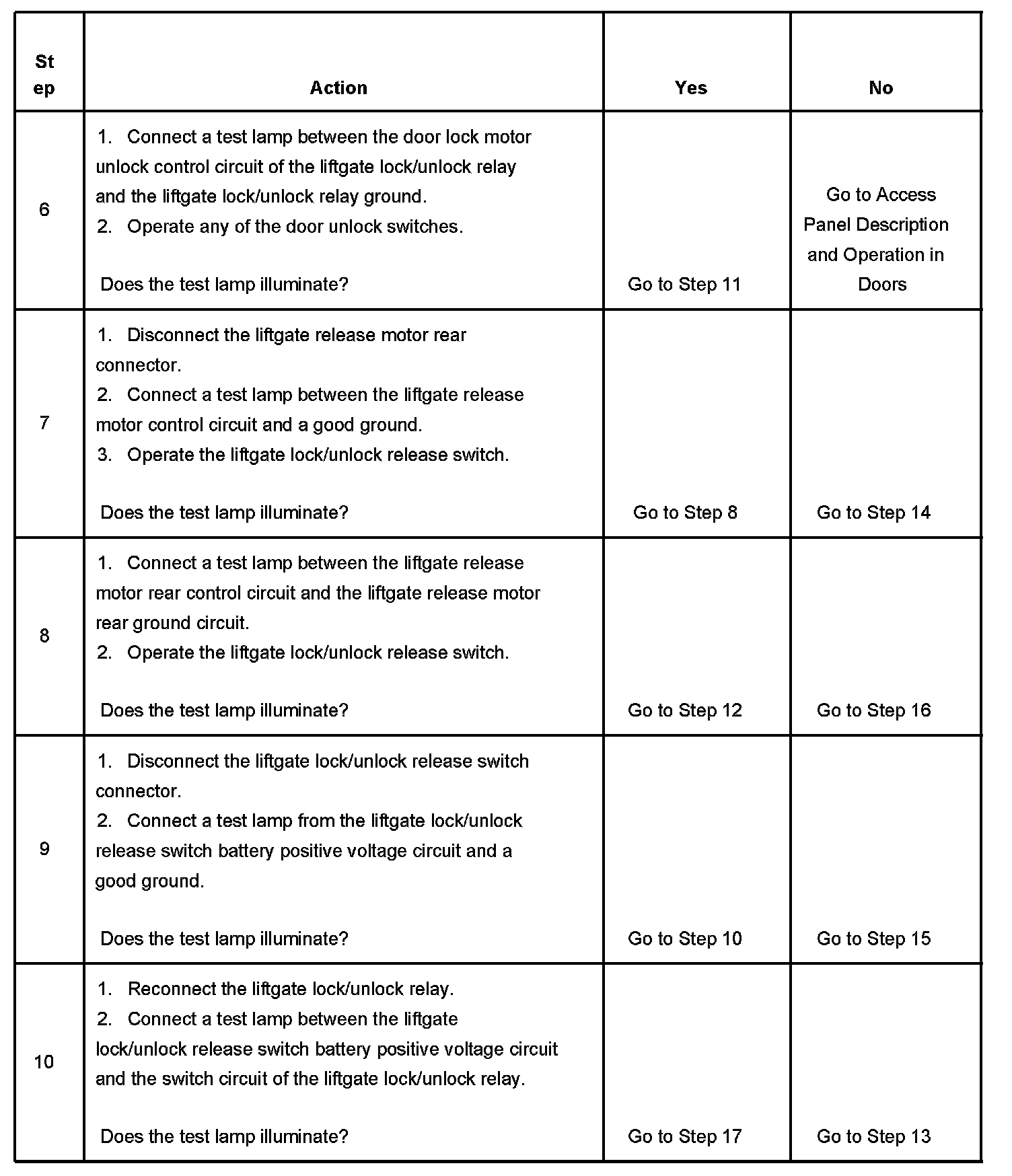

Steps 6-10:

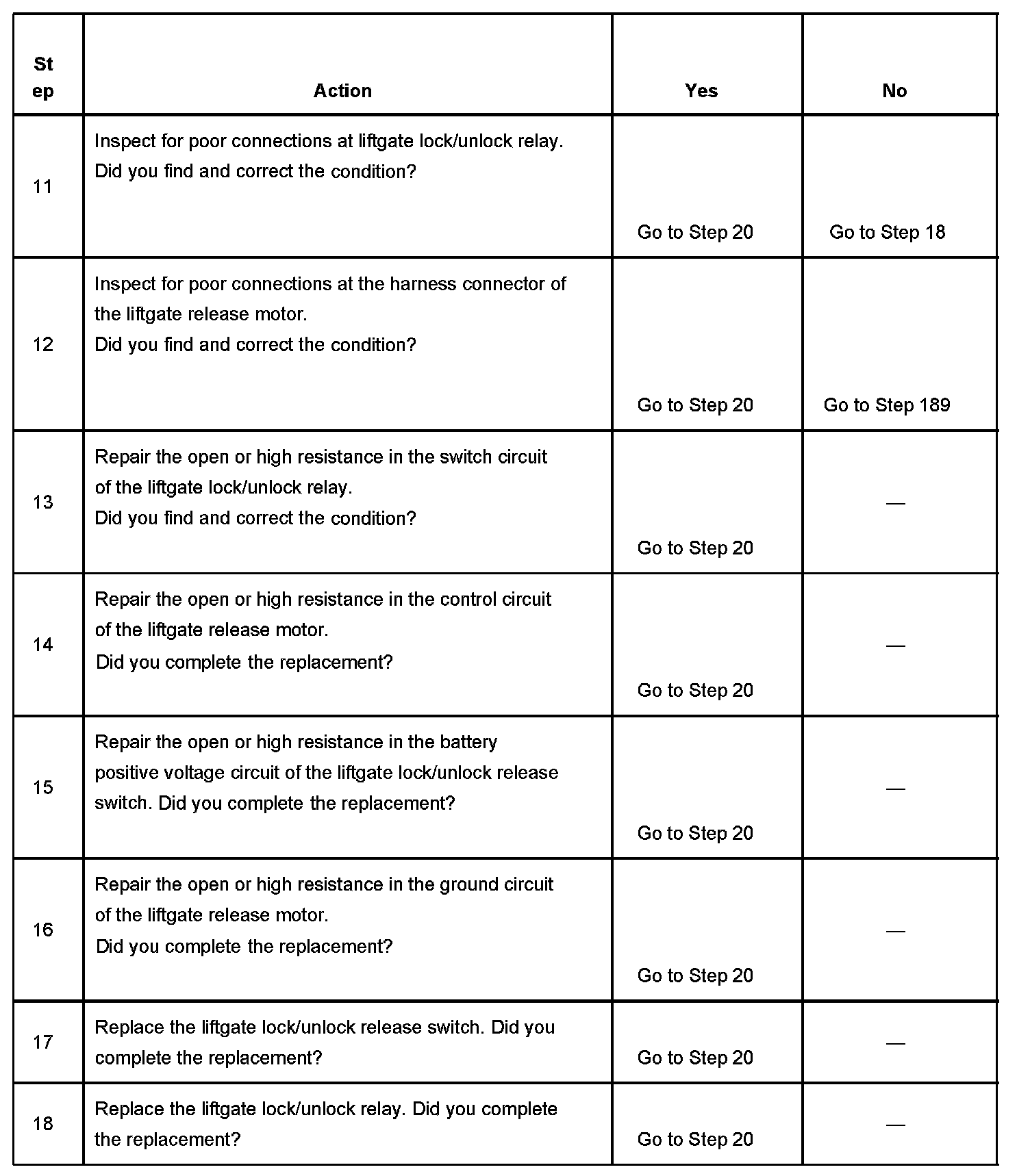

Steps 11-18:

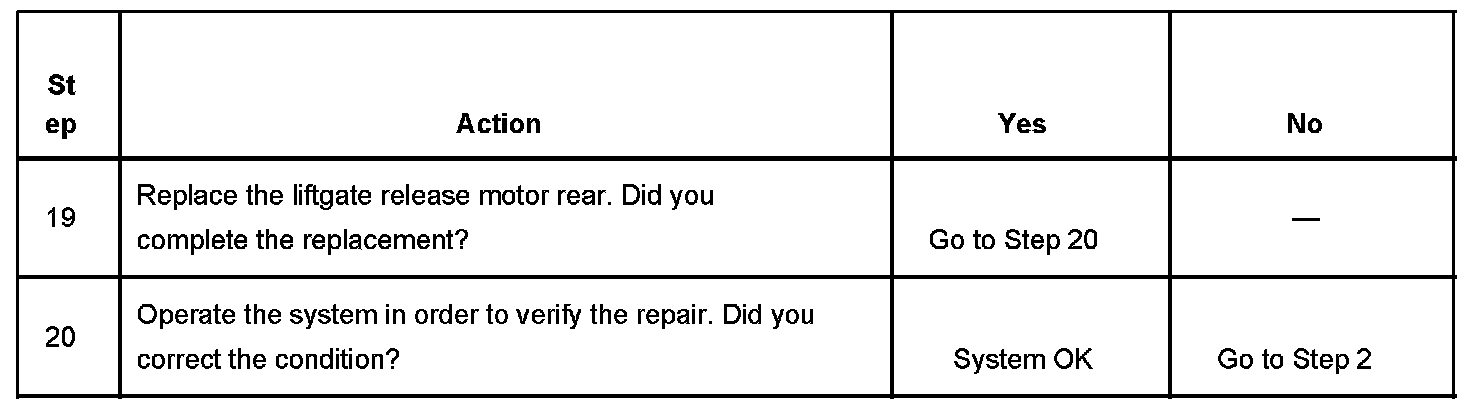

Steps 19-20:
