Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> All Access Panels Inoperative

All Access Panels Inoperative

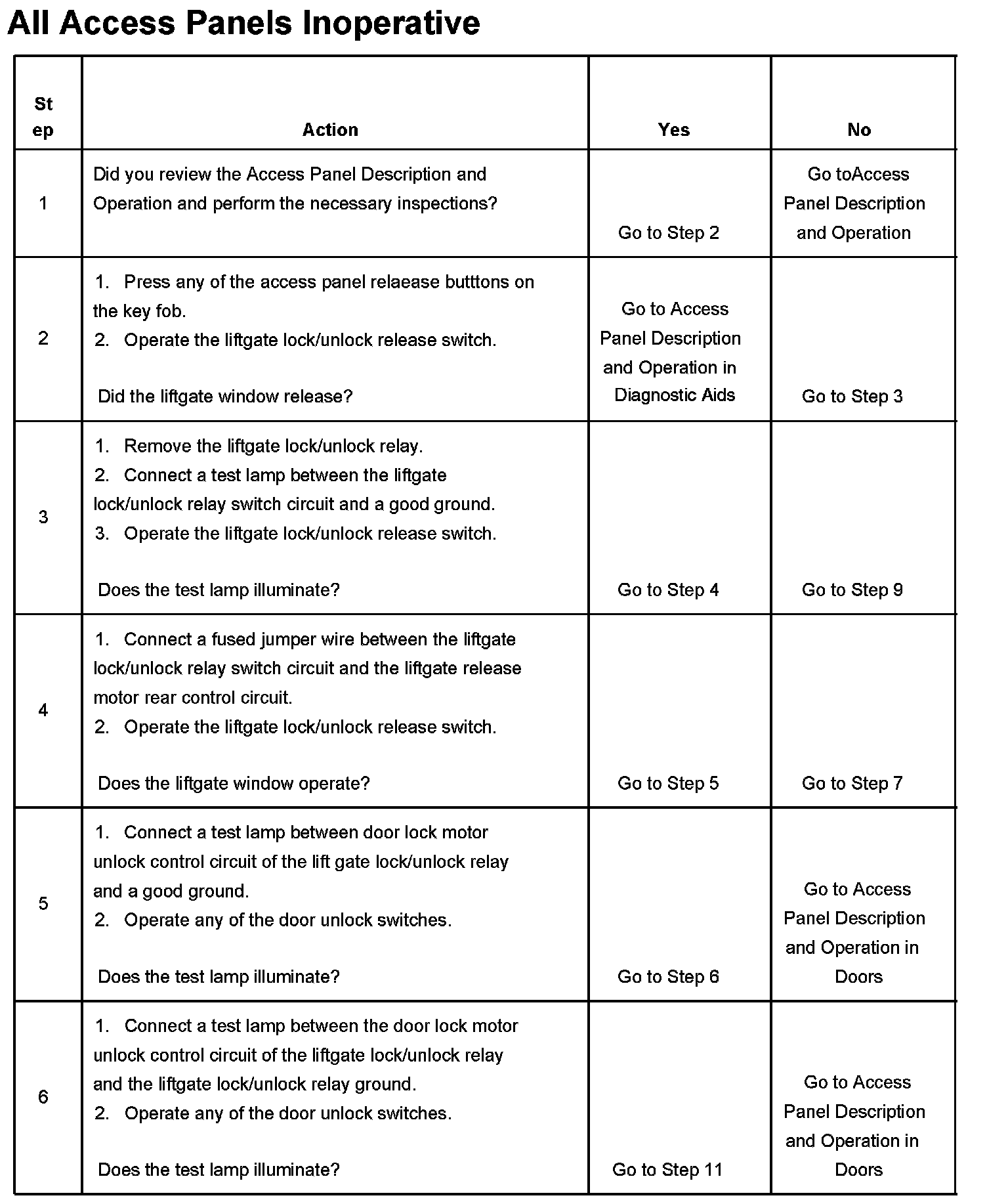

Steps 1-6:

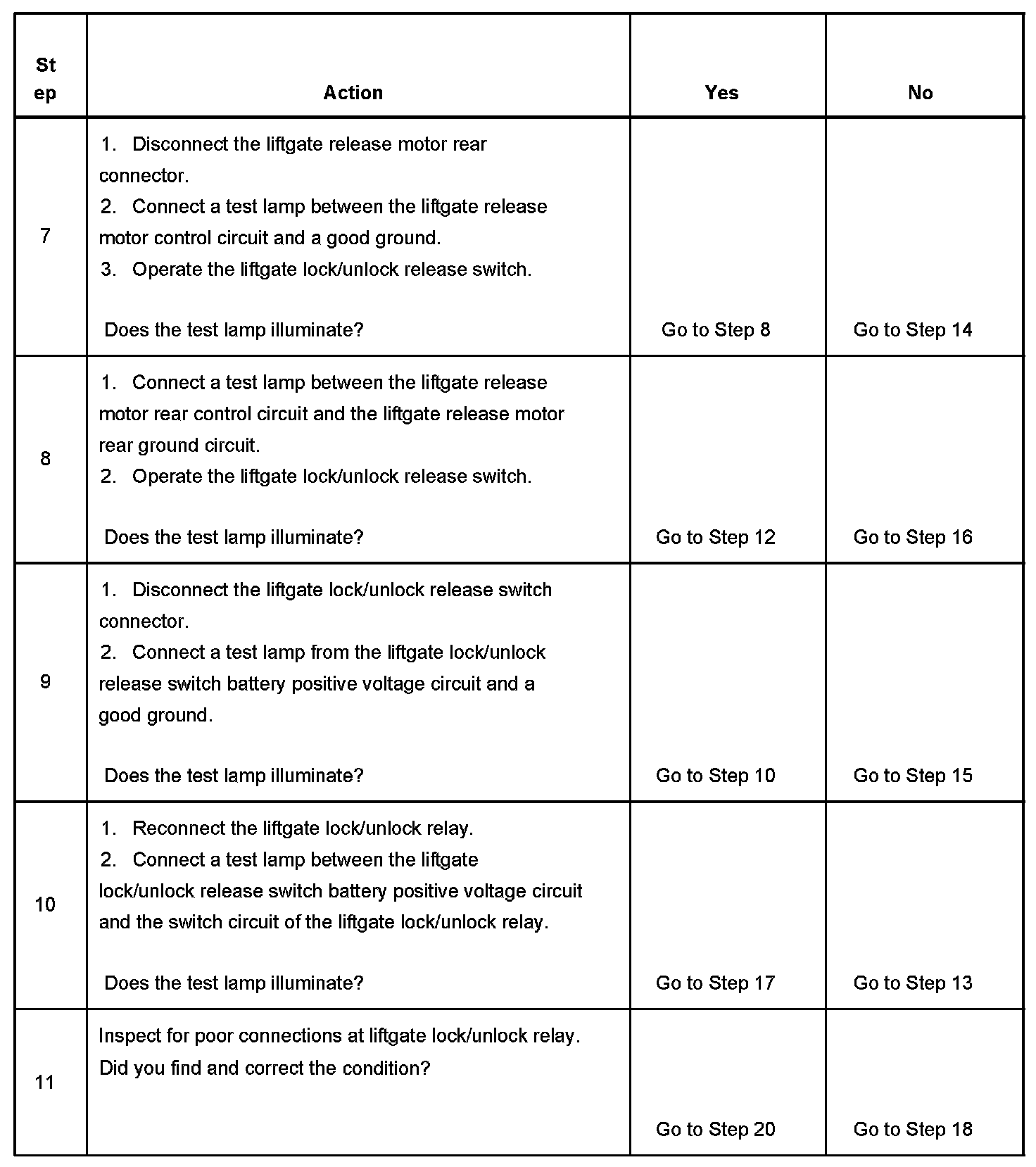

Steps 7-11:

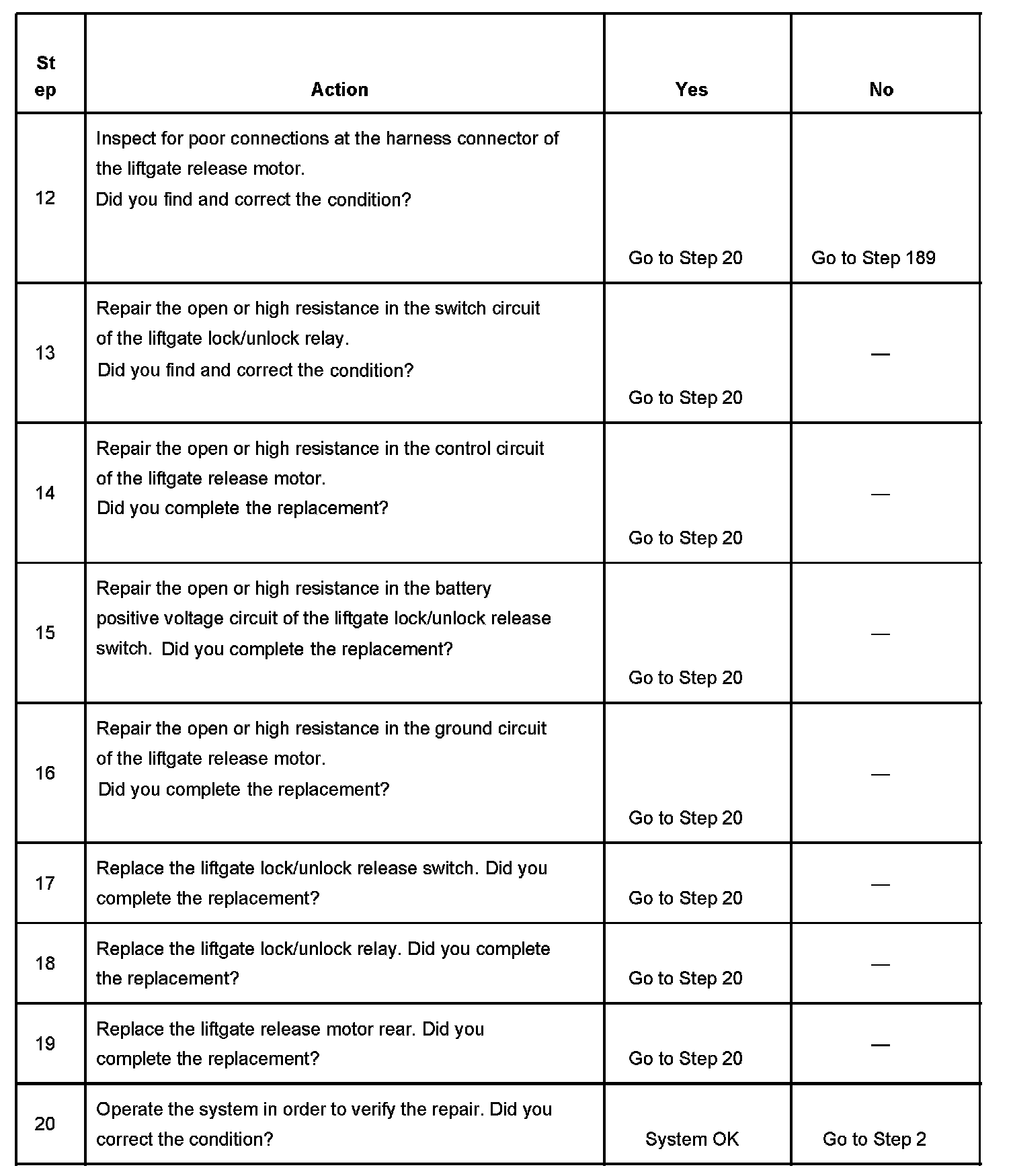

Steps 12-20:
