Hood Weatherstrip: Service and Repair

Seal Replacement - Hood Rear

Removal Procedure

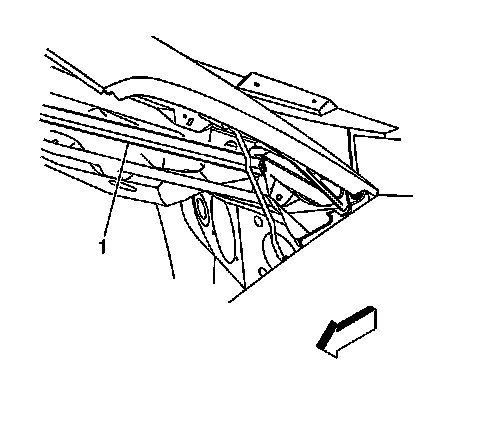

1. Pull up on the rear hood seal (1).
2. Remove the rear hood seal (1) from the cowl pinch-weld flange.



Installation Procedure





1. Align the slot in the rear hood seal (1) with the cowl pinch-weld flange.
2. Press the rear hood seal (1) into place.
